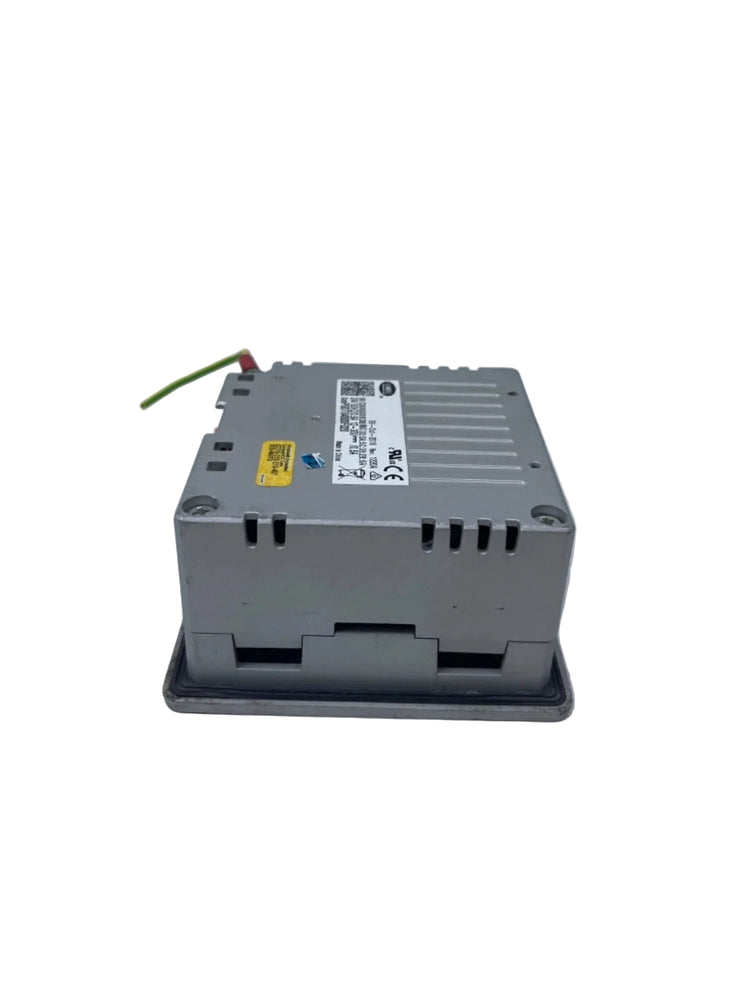

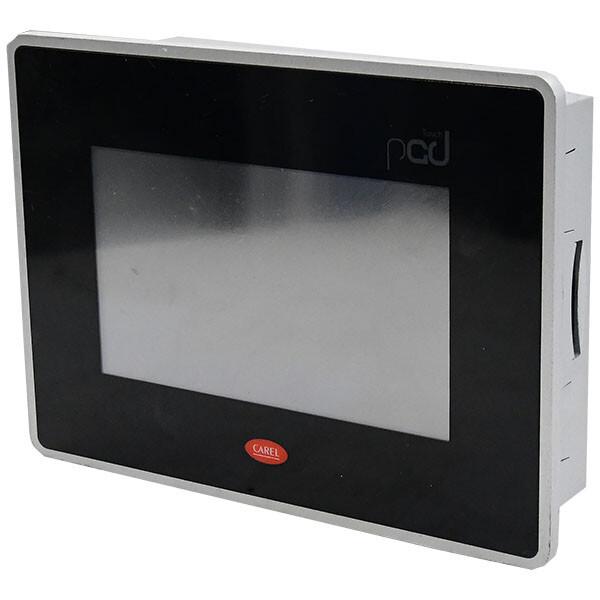

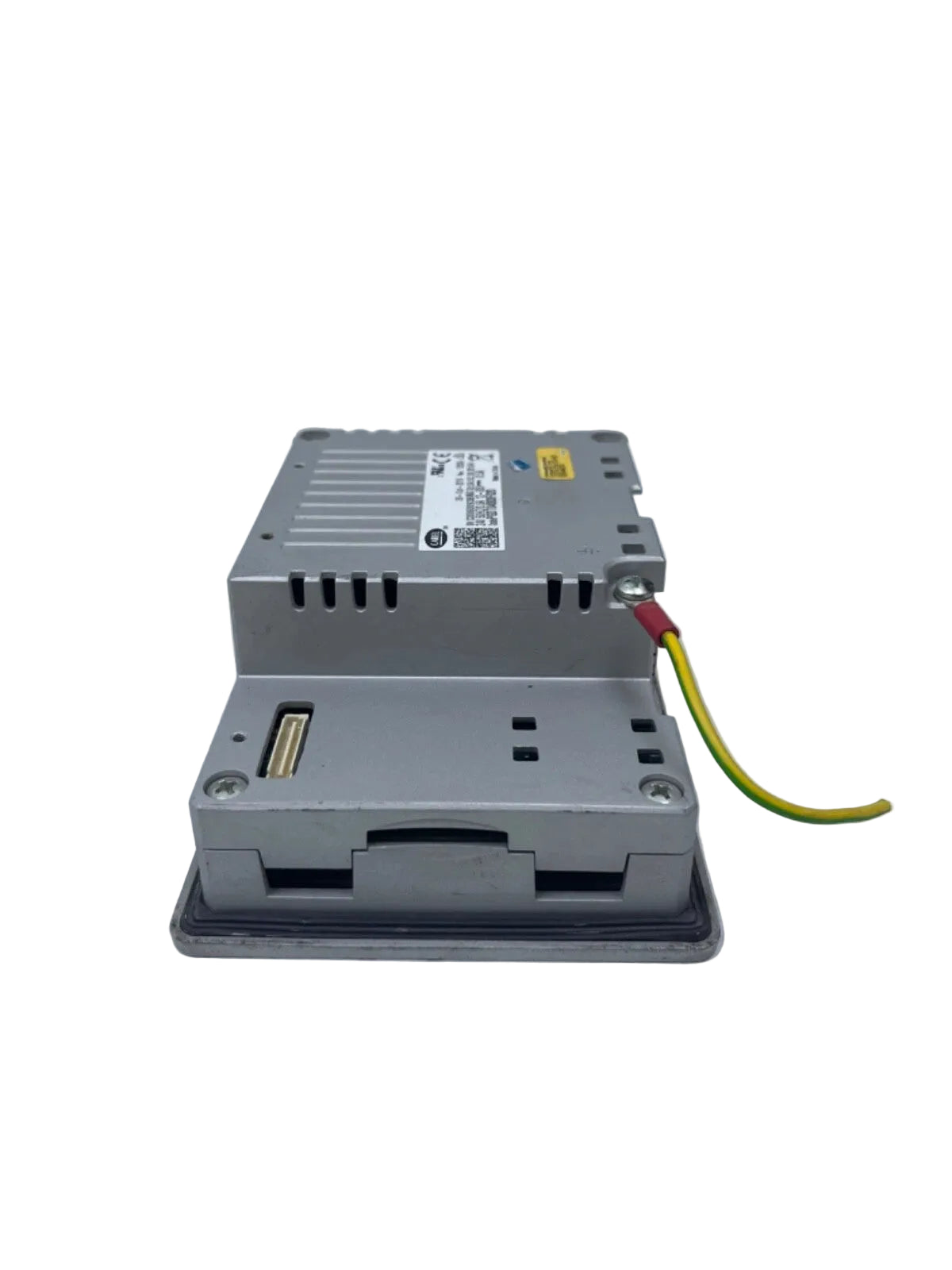

CAREL PGDT04000F020 pGD Touch 4.3-Inch Color HMI Terminal
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PGDT04000F020
Description
CAREL PGDT04000F020 is a panel-mount pGD Touch operator terminal for control and monitoring applications. Its 4.3-inch color touchscreen, dual Ethernet ports, and isolated RS485 interface support communication with compatible automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | CAREL |
| Category | HMI / MMI / OIT |
| Part Number | PGDT04000F020 |
| Subcategory | Touchscreen Operator Terminal |
| Series | pGD Touch |
| Display Type | 4.3-inch TFT color LCD |
| Resolution | 480 × 272 pixels (WVGA) |
| Color Capability | 64K colors |
| Touch Type | Resistive |
| Serial Interface | 1 optically isolated RS485, up to 115.2 kbit/s |
| Ethernet | 2 × 10/100 Mbit ports, internal switch |
| USB | USB 2.0 host, Type A, 500 mA maximum |
| Power Supply | 24 VAC or 12–30 VDC |
| Power Consumption | 6 W |
| Weight | 1 kg |
Information About PGDT04000F020
The PGDT04000F020 belongs to CAREL’s pGD Touch programmable terminal series. Its 4.3-inch TFT display has a 480 × 272 WVGA resolution, 64K colors, and resistive touch operation. The model provides one optically isolated RS485 port, USB host connectivity, and two Ethernet ports connected through an internal switch. It accepts 24 VAC or 12–30 VDC power and supports graphical objects, alarms, event lists, recipes, and trend logging.
Key Features:
-
4.3-Inch Touchscreen Display: Features a color TFT LCD with a 480 × 272 pixel resolution for viewing controller data and operating menus.
-
65K Color Support: Displays multicolor graphics for distinguishing system parameters, alarms, and operating conditions.
-
Resistive Touch Interface: Enables direct touchscreen navigation through compatible HVAC/R control applications.
-
Dual Ethernet Ports: Provides two 10/100 Mbps Ethernet interfaces for compatible network and controller connections.
-
Optically Isolated RS485: Includes an isolated RS485 serial interface supporting communication speeds up to 115.2 kbps.
-
USB Host Interface: Features a USB Type-A host port for transferring applications and retrieving operational data.
-
SD Card Support: Includes an SD card slot for storing application data, alarms, and process trends.
-
Flexible Power Supply: Operates from 24 VAC or 12–30 VDC within the manufacturer's specified limits.
-
Programmable User Interface: Supports multilingual menus, alarms, event lists, recipes, data logging, and real-time clock functions, depending on the application software.
-
Industrial Panel Integration: Designed for installation as an operator terminal in compatible CAREL pCO-based control systems.
The PGDT04000F020 delivers graphical monitoring and touchscreen operation for industrial HVAC, refrigeration, and building-control applications.
