CAREL PSD1018400 Power+ PSD1 18 A Three-Phase HVAC/R Speed Drive
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PSD1018400
Description

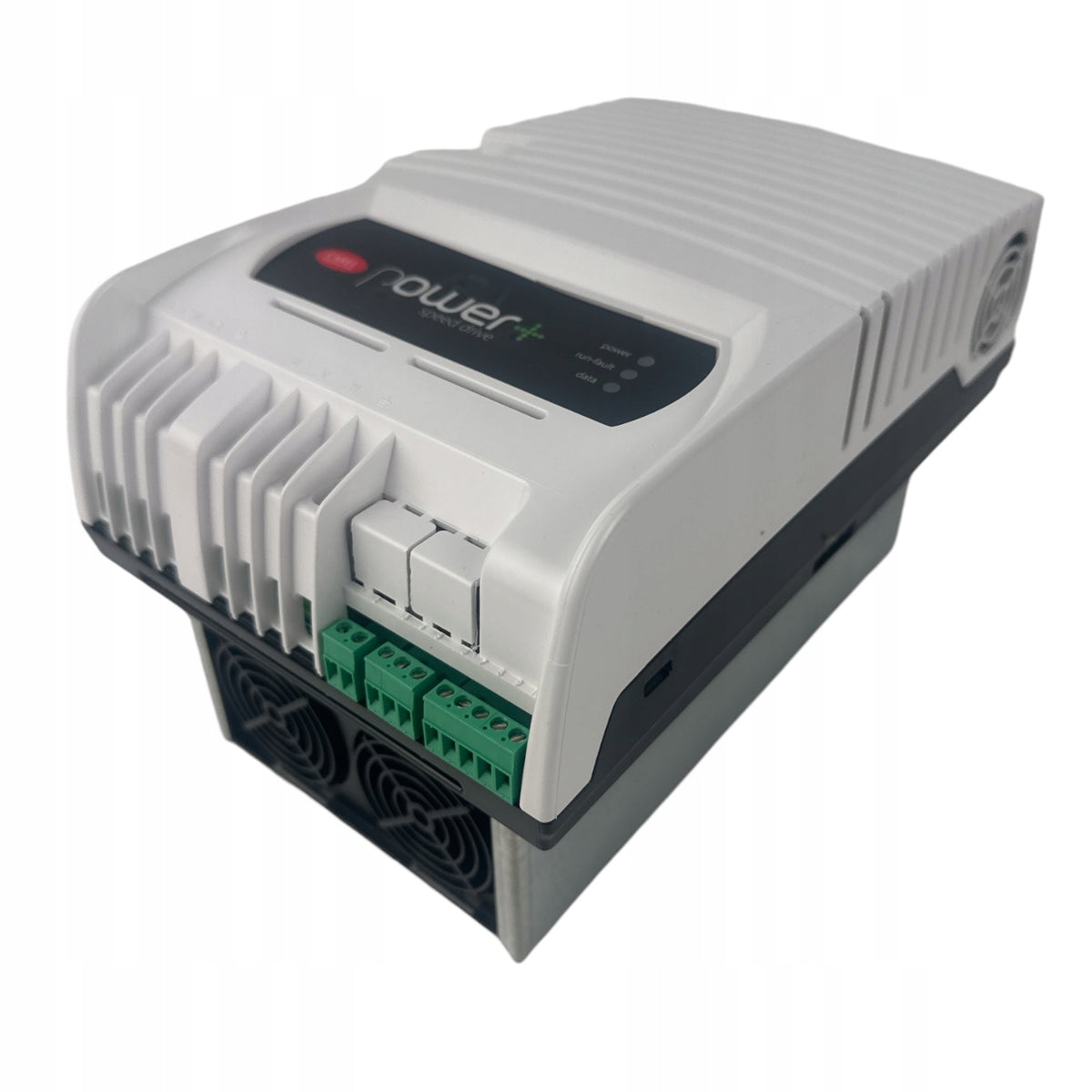

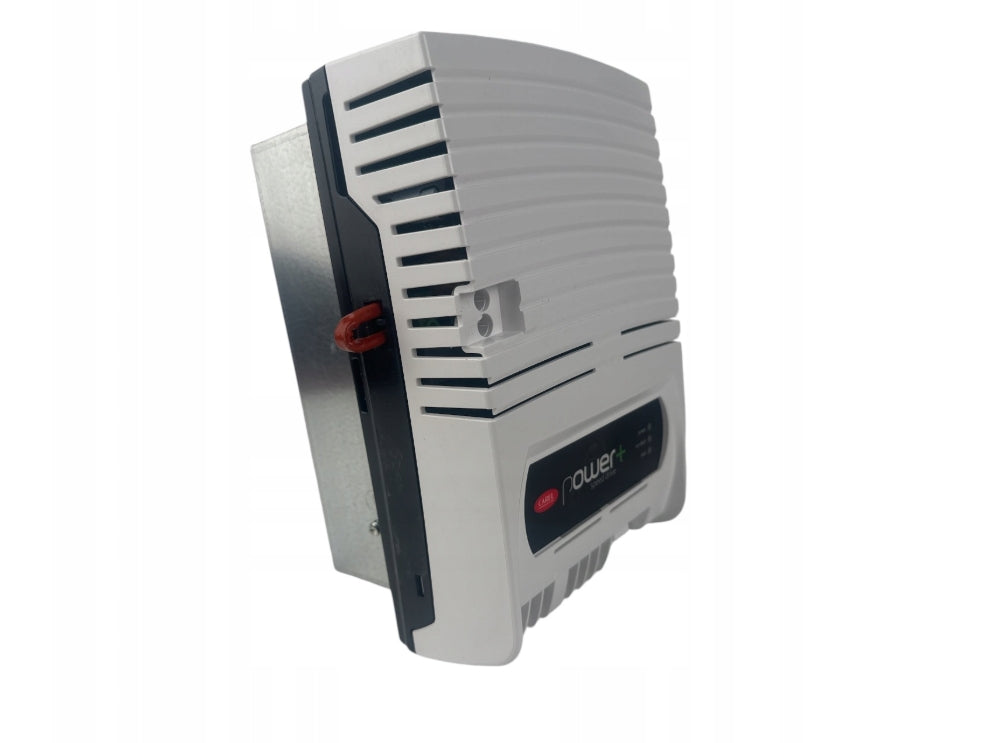

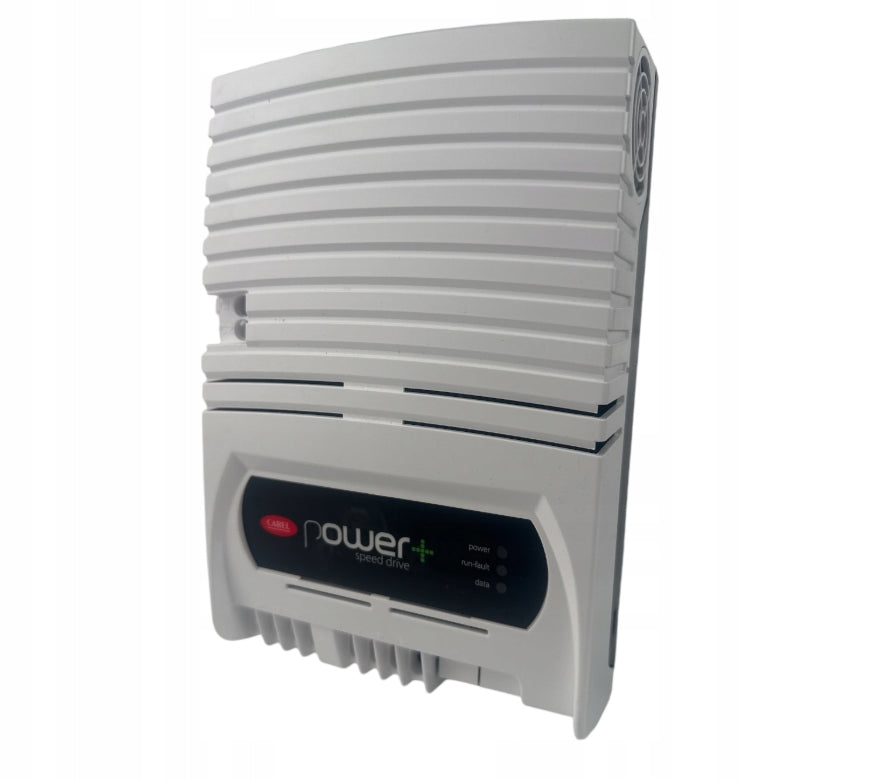

CAREL PSD1018400 is a Power+ PSD1 speed drive for controlling compressor motors in refrigeration and air-conditioning systems. It accepts 380–415 VAC three-phase power and provides an 18 A rated output for compatible BLDC/BLAC permanent-magnet or asynchronous induction motors.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | CAREL |
| Category | HVAC/R Drives |
| Part Number | PSD1018400 |
| Subcategory | Speed Drives |
| Series | Power+ PSD1 |
| Drive type | Variable-speed drive |
| Compatible motors | BLDC/BLAC permanent-magnet and asynchronous induction |
| Power supply | 380–415 VAC, three phase |
| Rated output current | 18 A |
| Communication interface | RS485 |
| Communication protocol | Modbus |
| Cooling | Forced-air-cooled heatsink |
| Mounting options | Panel mount or heatsink outside panel |
| Protection rating | IP20/IP44, depending on installation |
| Frame dimensions | 268 × 173 × 168 mm |
| Weight | 4.0 kg |
Information About PSD1018400
The PSD1018400 is part of CAREL’s Power+ PSD1 speed drive series for HVAC/R equipment. Its variable-speed operation supports compressor control and can also be used in compatible fan and pump applications. Configuration and run commands can be managed by a CAREL pCO controller or another controller over RS485 using Modbus. The drive uses a forced-air-cooled heatsink and supports panel installation or installation with the heatsink outside the panel.
Key Features:
-
Variable Frequency Drive: Controls the speed of compatible compressors and other supported motor-driven equipment in HVAC and refrigeration systems.
-
Power+ Series: Belongs to CAREL’s PSD1 Power+ inverter range for industrial refrigeration and air-conditioning applications.
-
Three-Phase Power Supply: Designed for 380–415 VAC three-phase input in the specified model configuration.
-
18 A Rated Output: Provides a nominal output current of 18 A.
-
Compressor Motor Compatibility: Supports sensorless permanent-magnet BLDC/BLAC motors and compatible asynchronous induction motors.
-
Modbus Communication: Connects to a compatible CAREL pCO controller or other master controller through RS485 serial communication using Modbus RTU.
-
Forced-Air Cooling: Uses an integrated fan and heat sink to dissipate operating heat.
-
Programmable Acceleration: Allows motor-start acceleration profiles to be configured for the application.
-
Integrated Protection: Includes protections for overcurrent, short circuit, earth fault, overvoltage, undervoltage, and drive overtemperature.
-
Industrial Installation: Designed for control-panel mounting or installation with the heat sink outside the panel, depending on the configuration.
The PSD1018400 delivers variable-speed motor control for compatible refrigeration compressors, HVAC equipment, and industrial cooling systems.
