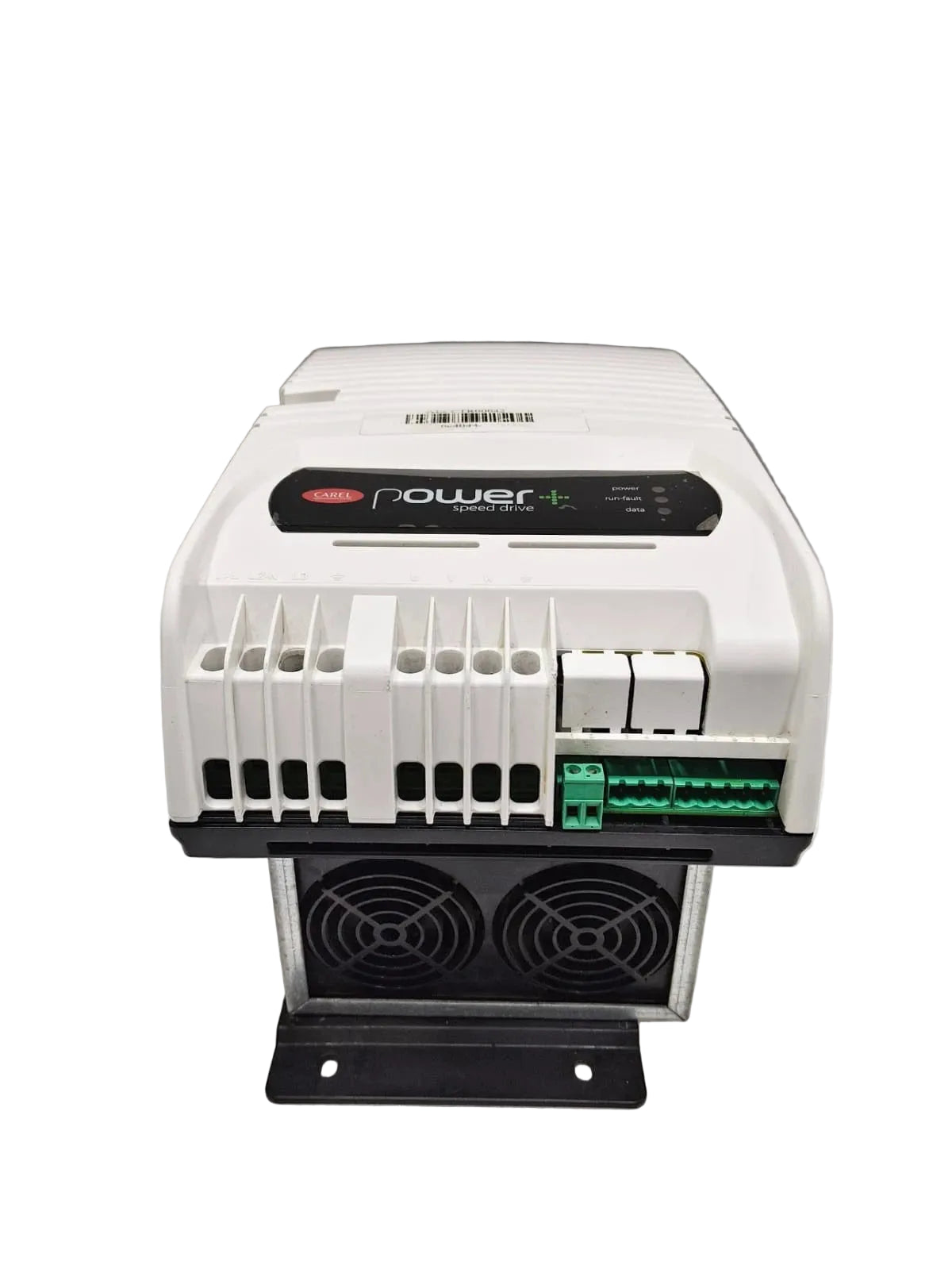

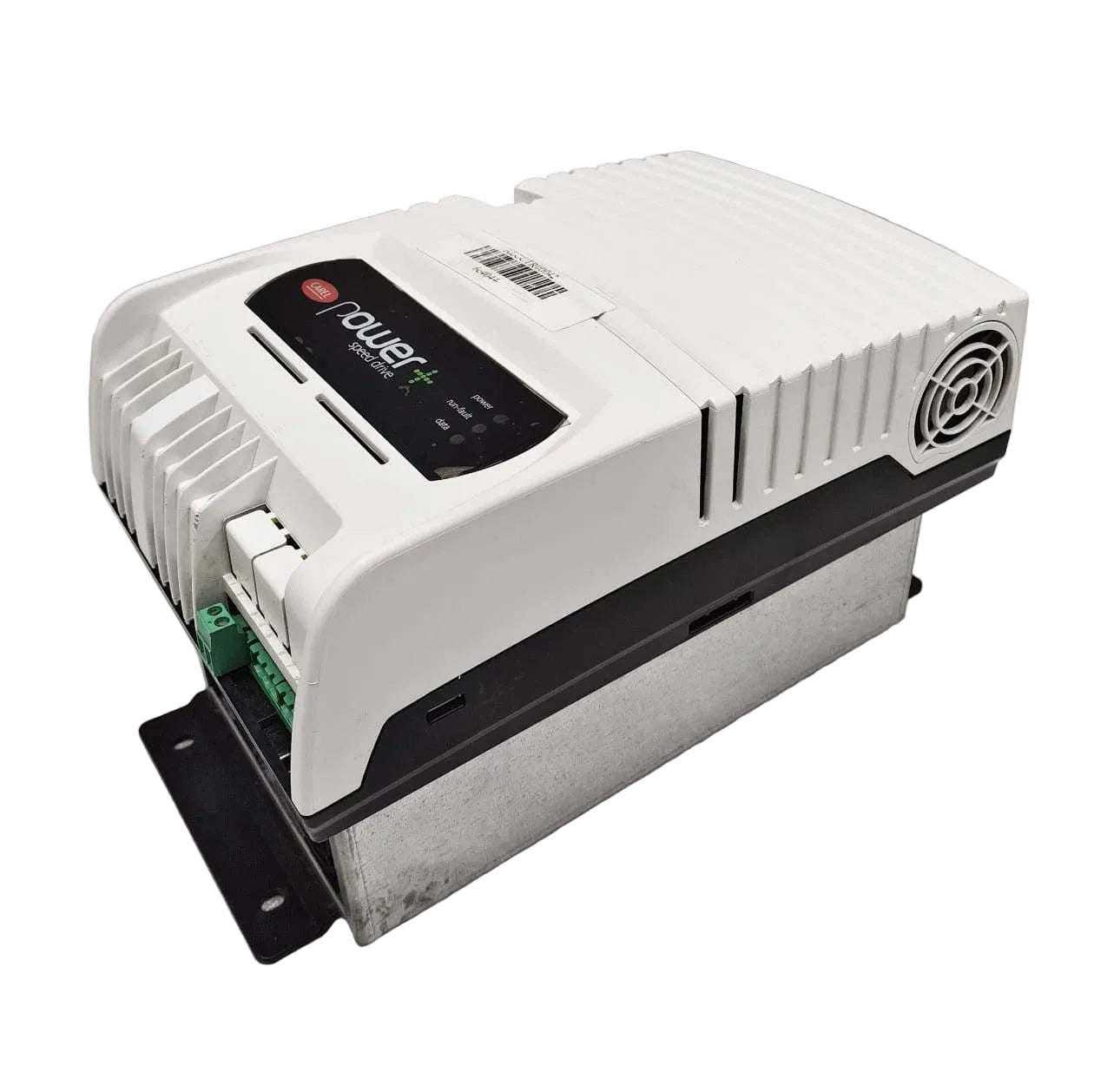

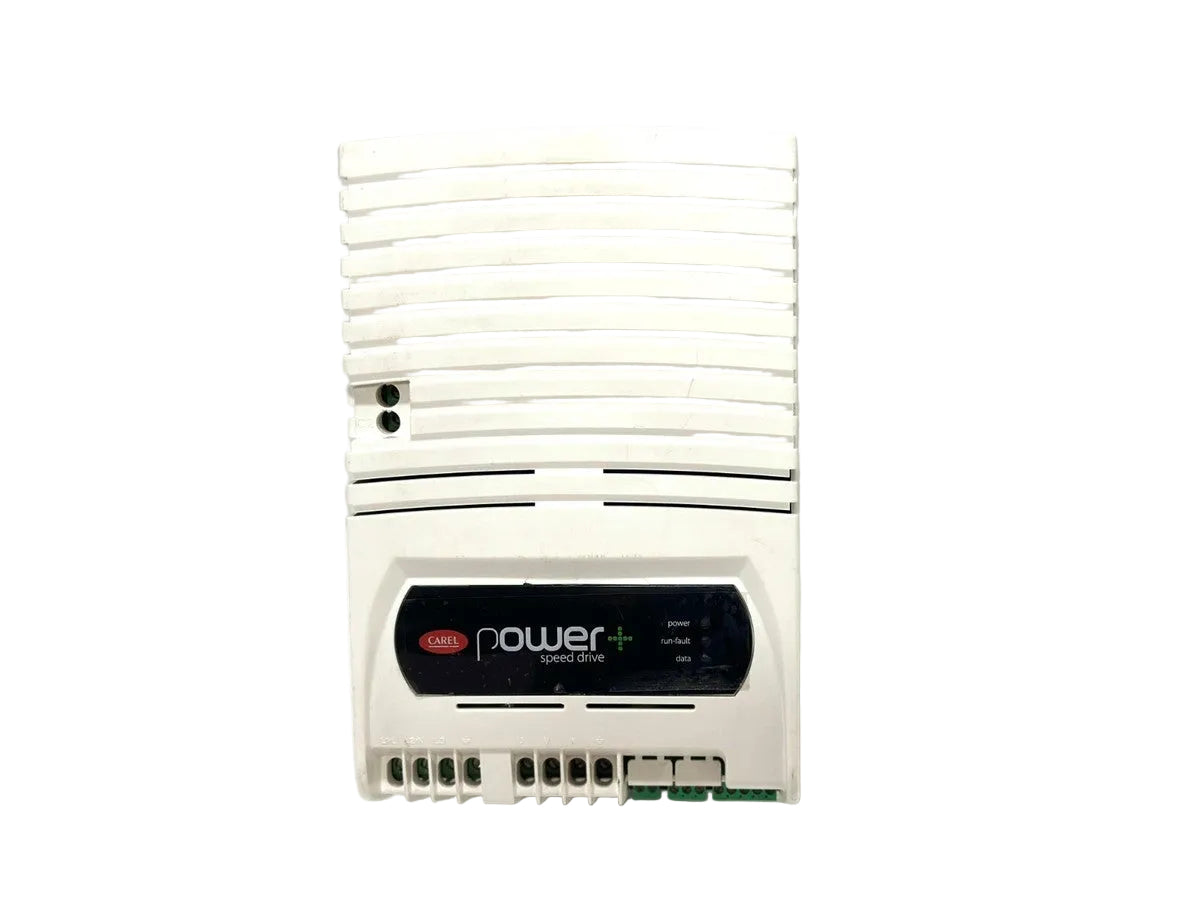

CAREL PSD1024400 Power+ 24A Three-Phase Variable Speed Drive
- Regular price
- $2,449.00
- Sale price
- $2,449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PSD1024400
Description
The CAREL PSD1024400 is a Power+ variable-speed drive rated for 24 A output in three-phase 380–480 Vac systems. It is designed to control compressors and can also be used with compatible fans and pumps in HVAC and refrigeration applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | CAREL |
| Category | Drives |
| Part Number | PSD1024400 |
| Subcategory | Drive |
| Series | Power+ PSD1 |
| Drive Type | Variable-Speed Drive / Inverter |
| Power Supply | 380–480 Vac ±10%, 3 Phase |
| Rated Input Current | 30 A |
| Rated Output Current | 24 A |
| Rated Output Power | 14 kW at 400 V |
| Operating Frequency | 50/60 Hz |
| Communication | RS485/Modbus |
| Protection Rating | IP20 / IP44 |
| Operating Temperature | -20 to 60 °C |
| Dimensions | Approx. 268 × 173 × 168 mm |
| Weight | 4.1 kg (9.04 lb) |
Information About PSD1024400BCM-MS/TP
The PSD1024400 belongs to CAREL's Power+ PSD1 series of speed drives and uses a three-phase AC input configuration. It provides a rated output current of 24 A and a rated output power of approximately 14 kW at 400 V. The drive supports motor control for permanent-magnet, BLDC/BLAC, and asynchronous induction motors, with vector or V/f control available for induction motors. RS485/Modbus communication allows a CAREL pCO controller or other compatible controller to manage operating commands, speed reference, and configuration.
Key Features:
- Power+ Drive: Part of CAREL's Power+ PSD1 variable-speed drive series.
- Three-Phase Supply: Designed for 380–480 Vac three-phase power.
- 24 A Output: Provides a rated output current of 24 A.
- Motor Control: Supports permanent-magnet and asynchronous induction motors.
- Control Modes: Provides vector and V/f control for compatible induction motors.
- RS485/Modbus: Supports serial communication for control and configuration.
- HVAC/R Applications: Designed primarily for compressor control and can also operate fans and pumps.
- Protection Rating: Provides IP20 protection at the front panel and IP44 protection at the external heat sink configuration.
The PSD1024400 delivers the reliability and precision required for variable-speed compressor and HVAC/R motor-control applications.
