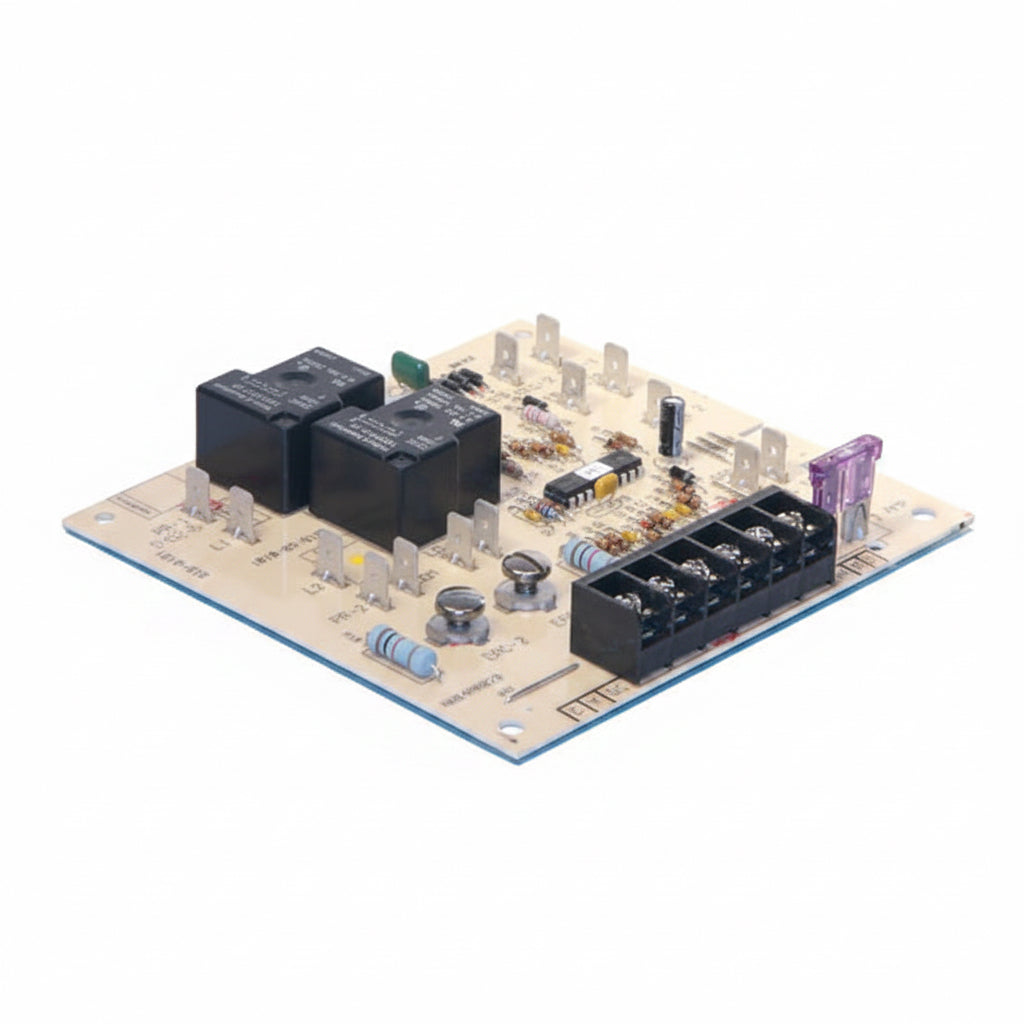

Carrier 302075-304 Furnace Control Board for Carrier Bryant Payne HVAC Systems
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 302075-304
Description
The Carrier 302075-304 is an HVAC furnace control board designed to manage electrical control functions in compatible Carrier, Bryant, and Payne furnace systems. It is a legacy control board that has been replaced by Carrier part HH84AA020 for applicable equipment configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Carrier |
| Category | HVAC |
| Part Number | 302075-304 |
| Subcategory | Furnace Control Boards |
| Application | Gas Furnace Control |
| Compatible Brands | Carrier, Bryant, Payne |
| Input Voltage | 18–30 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 5 W Maximum |
| Normally Open Contact Rating | 20 A Resistive @ 240 VAC |
| Normally Closed Contact Rating | 10 A Resistive @ 240 VAC |
| Heat ON Delay | 75 Seconds |
| Heat OFF Delay | 105 Seconds |
| Cool OFF Delay | 90 Seconds |
| Operating Temperature | -40°F to +176°F |
| Maximum Operating Humidity | 95% RH, Non-Condensing at 50°C |
| Weight | 2.00 lb |
Information About 302075-304
The 302075-304 is a Carrier control board used in older furnace control assemblies. Its printed circuit board design provides the electronic interface for controlling furnace operating components and associated electrical functions. The part is listed for various Carrier, Bryant, and Payne models, with exact compatibility dependent on the furnace model and serial number. Carrier 302075-304 is cross-referenced with replacement part HH84AA020, which is the current replacement control board for applicable installations.
Key Features:
- Furnace Control Board: Provides electronic control functions within compatible furnace systems.
- Carrier Compatibility: Designed for use with selected Carrier furnace equipment.
- Multi-Brand Application: Also listed for compatible Bryant and Payne furnace models.
- PC Board Construction: Uses a dedicated printed circuit board for furnace control operations.
- Replacement Reference: Superseded by Carrier HH84AA020 for applicable equipment configurations.
- HVAC Application: Intended for heating-system control and furnace maintenance applications.
- Model Matching: Compatibility should be verified using the existing furnace model and serial number.
- Legacy Part: Maintains the original 302075-304 identification for replacement and service reference.
The 302075-304 delivers the reliability and precision required for electronic furnace control and HVAC system maintenance.
