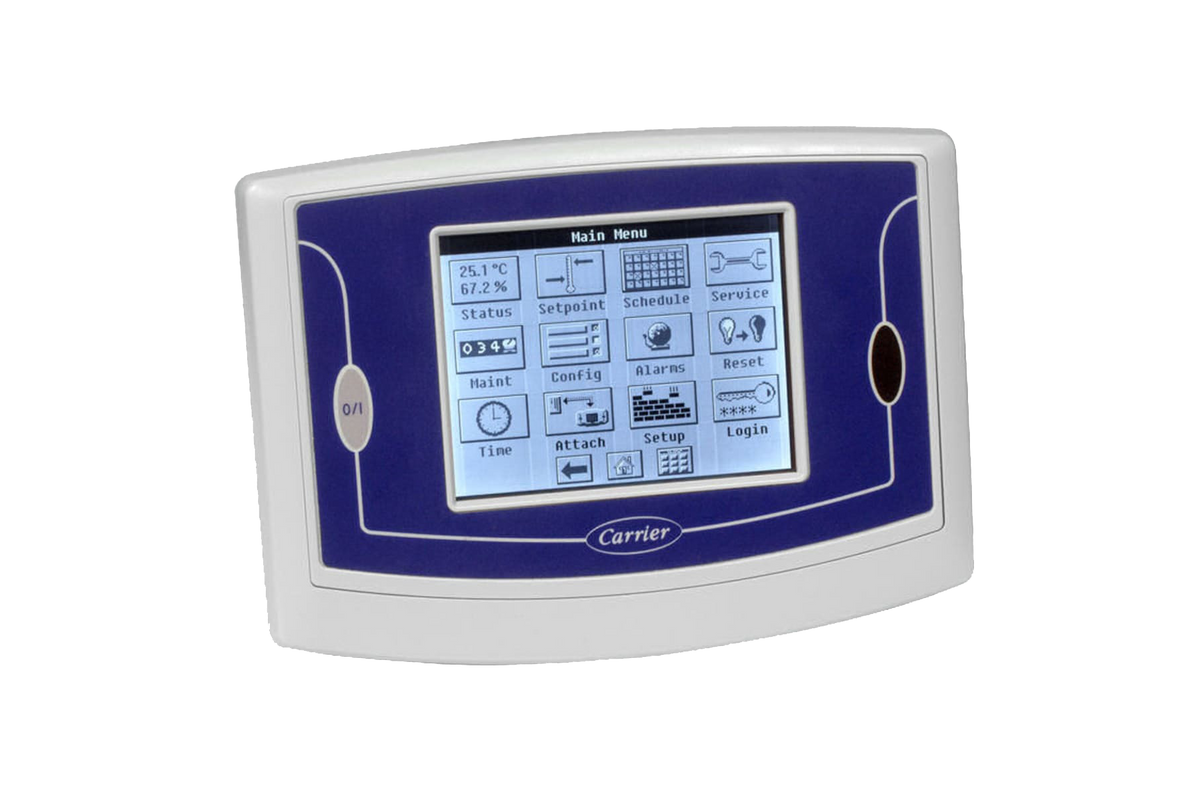

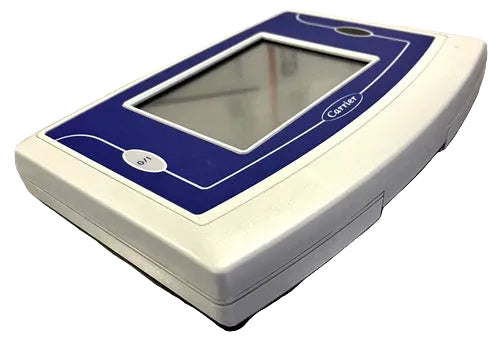

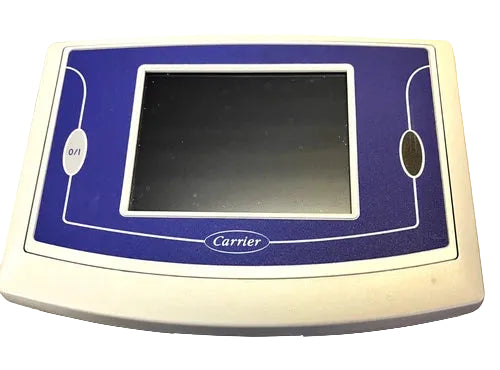

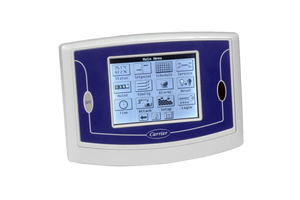

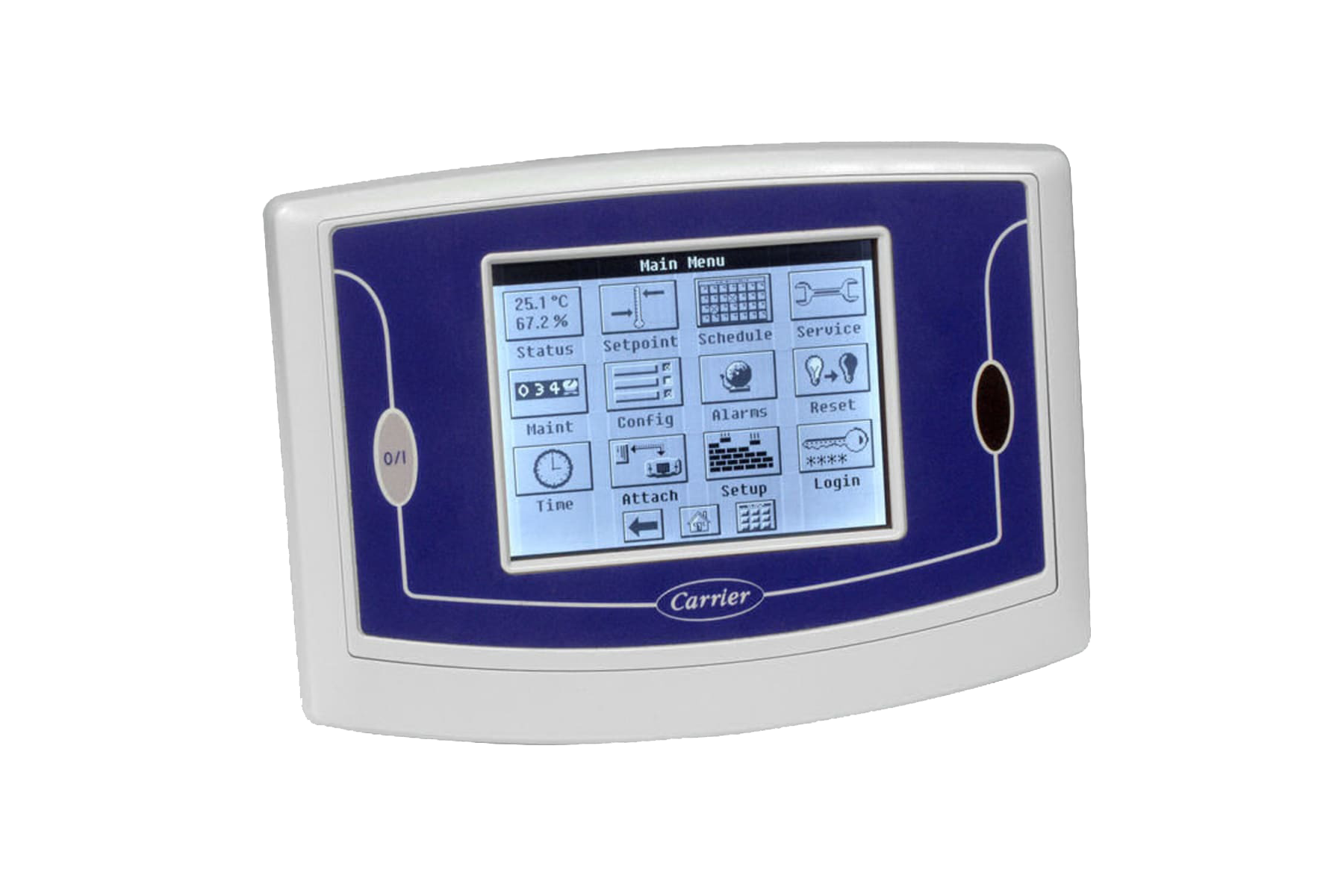

Carrier 33CNTPILOT-01-R Touch Pilot Operator Interface for Carrier Comfort Network
- Regular price
- $3,499.00
- Sale price
- $3,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 33CNTPILOT-01-R
Description
The Carrier 33CNTPILOT-01-R is a Touch Pilot operator interface designed for monitoring, configuring, commissioning, and controlling equipment connected to the Carrier Comfort Network. Its touchscreen interface provides local access to operating data, schedules, setpoints, alarms, service information, and configuration parameters for compatible commercial heating, ventilation, and air conditioning equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Carrier |
| Category | HMI / MMI / OIT |
| Part Number | 33CNTPILOT-01-R |
| Subcategory | Operator Interface |
| Alternate Part Number Format | 33CNTPILOT01R |
| Product Family | Touch Pilot |
| Product Type | Touchscreen Operator Interface |
| Network Platform | Carrier Comfort Network |
| Operating Modes | Local Equipment Mode and Network Mode |
| Network Capacity | Up to 50 devices in network mode |
| Display Type | Liquid Crystal Display with touchscreen |
| Display Functions | Adjustable contrast and backlighting |
| Primary Functions | Monitoring, configuration, commissioning, and equipment control |
| Security | Three access security levels |
| Replacement Part Number | 00PSG000281600A |
| Weight | 2.00 lbs |
Information About 33CNTPILOT-01-R
The 33CNTPILOT-01-R is a Carrier Touch Pilot operator interface and configuration tool developed for Carrier Comfort Network communicating devices. Its panel-mounted construction incorporates a touchscreen liquid crystal display with adjustable contrast and backlighting for menu navigation, data review, and parameter modification. The interface can operate locally with individual equipment or in network mode, where Carrier specifies monitoring and control of up to 50 devices through an attach list. It supports chillers, zoning systems, packaged outdoor equipment, split systems, and other compatible Carrier network devices while providing access to configuration, maintenance, service, alarm, schedule, and status information.
Key Features:
- Touchscreen Operator Interface: Provides menu-based touchscreen navigation for viewing system information and modifying permitted operating parameters.
- Carrier Comfort Network Communication: Communicates directly with compatible Carrier Comfort Network equipment for system monitoring and control.
- Multi-Device Operation: Network mode supports an attach list containing up to 50 communicating devices.
- Configuration Access: Allows access to configuration, maintenance, service, setpoint, time schedule, alarm history, and operating status data.
- Equipment Commissioning: Can be used during installation and commissioning of compatible Carrier communicating equipment.
- Adjustable Display: Uses a liquid crystal display with adjustable contrast and backlighting for local operator interaction.
- Security Management: Provides three security levels to control access to system information and adjustment functions.
- Replacement Availability: Carrier part 00PSG000281600A is identified as the replacement for the legacy 33CNTPILOT-01-R interface.
The 33CNTPILOT-01-R delivers the reliability and precision required for local monitoring, configuration, commissioning, and control of Carrier Comfort Network equipment.
