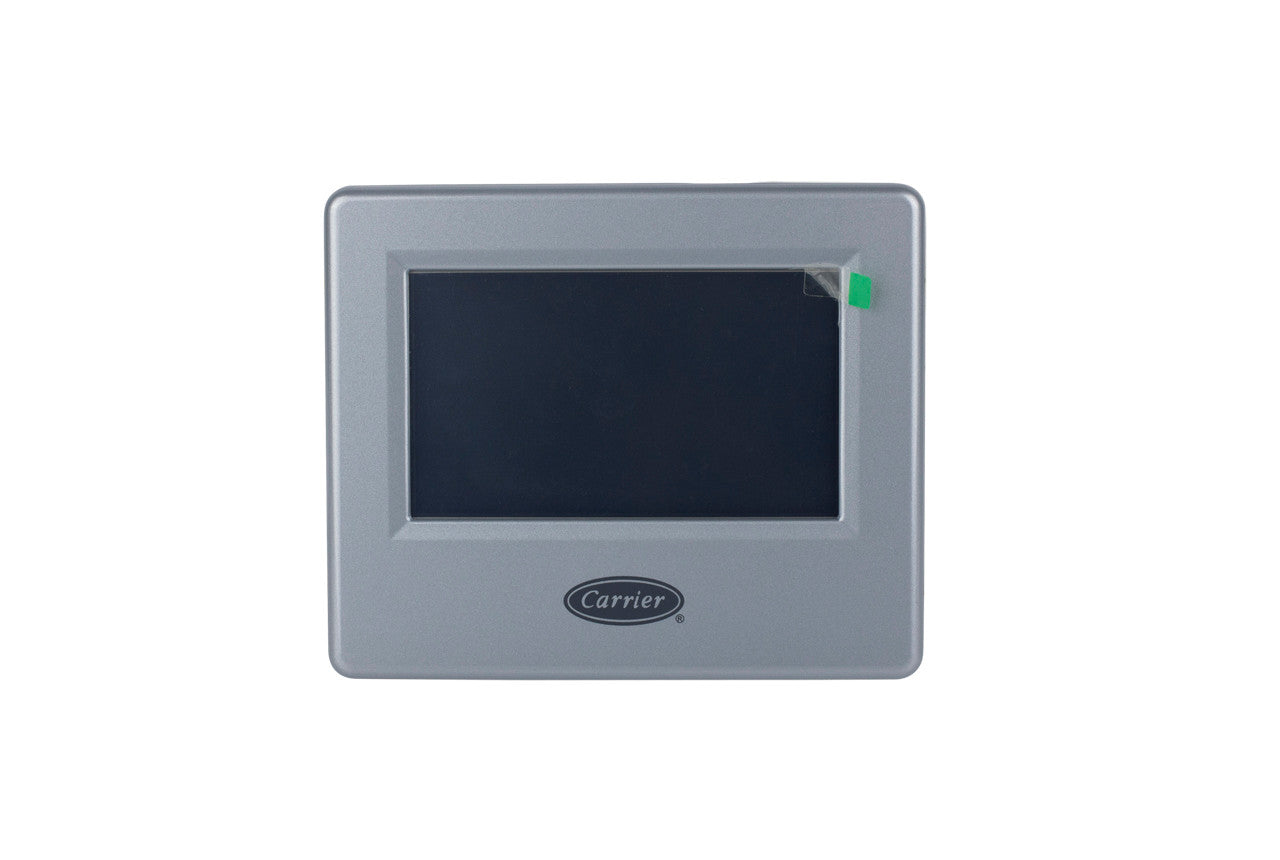

Carrier EQT1-4-CAR i-Vu Equipment Touch BACnet Wall-Mounted Operator Interface
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EQT1-4-CAR
Description
The Carrier EQT1-4-CAR is a wall-mounted touchscreen operator interface designed for Open BACnet® HVAC equipment within the i-Vu® Building Automation System. It provides an intuitive interface for monitoring, configuring, and controlling a single BACnet controller while displaying equipment status, alarms, schedules, and trends. The integrated touchscreen and onboard environmental sensors make it suitable for commercial building automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Carrier |
| Category | HMI / MMI / OIT |
| Part Number | EQT1-4-CAR |
| Subcategory | Operator Interface |
| Product Type | Equipment Touch Operator Interface |
| Display Size | 4.3 in. Color LCD Touchscreen |
| Display Resolution | 480 × 272 Pixels |
| Communication Protocol | Open BACnet® via Rnet |
| Mounting | Wall Mounted |
| Power Supply | 24 VAC Class 2 |
| Power Consumption | 5 VA |
| Frequency | 50/60 Hz |
| Integrated Sensors | Temperature and Humidity |
| External Sensor Support | 10 kΩ Thermistor |
| USB Port | USB Host |
| Memory | 16 MB Flash, 1.5 MB RAM |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Enclosure Material | ABS Plastic with Polycarbonate Bezel |
| Dimensions | 5.44 × 4.55 × 1.24 in. |
| Weight | 0.23 kgs |
Information About EQT1-4-CAR
The EQT1-4-CAR is part of Carrier's i-Vu® Building Automation System and serves as an advanced equipment touch interface for Open BACnet controllers. It features a 4.3-inch color touchscreen with an icon-driven interface that simplifies equipment commissioning, diagnostics, scheduling, and daily operation. The device includes integrated temperature and humidity sensors, supports external thermistor connections, and communicates through the Rnet interface with a compatible BACnet controller. Designed for wall-mounted installation, it is widely used in rooftop units, fan coil systems, air handling units, and other commercial HVAC applications requiring local equipment management.
Key Features:
- 4.3-Inch Color Touchscreen: High-resolution 480 × 272 illuminated display provides intuitive equipment control.
- Open BACnet Compatibility: Interfaces directly with a single Open BACnet HVAC controller using Rnet communication.
- Integrated Environmental Sensors: Built-in temperature and humidity sensing enhances local monitoring capabilities.
- Equipment Configuration: Provides access to controller setup, operating parameters, schedules, and trend data.
- Alarm Management: Displays audible and visual alarms with detailed equipment status information.
- User Security: Multi-level password protection restricts access to configuration and operating functions.

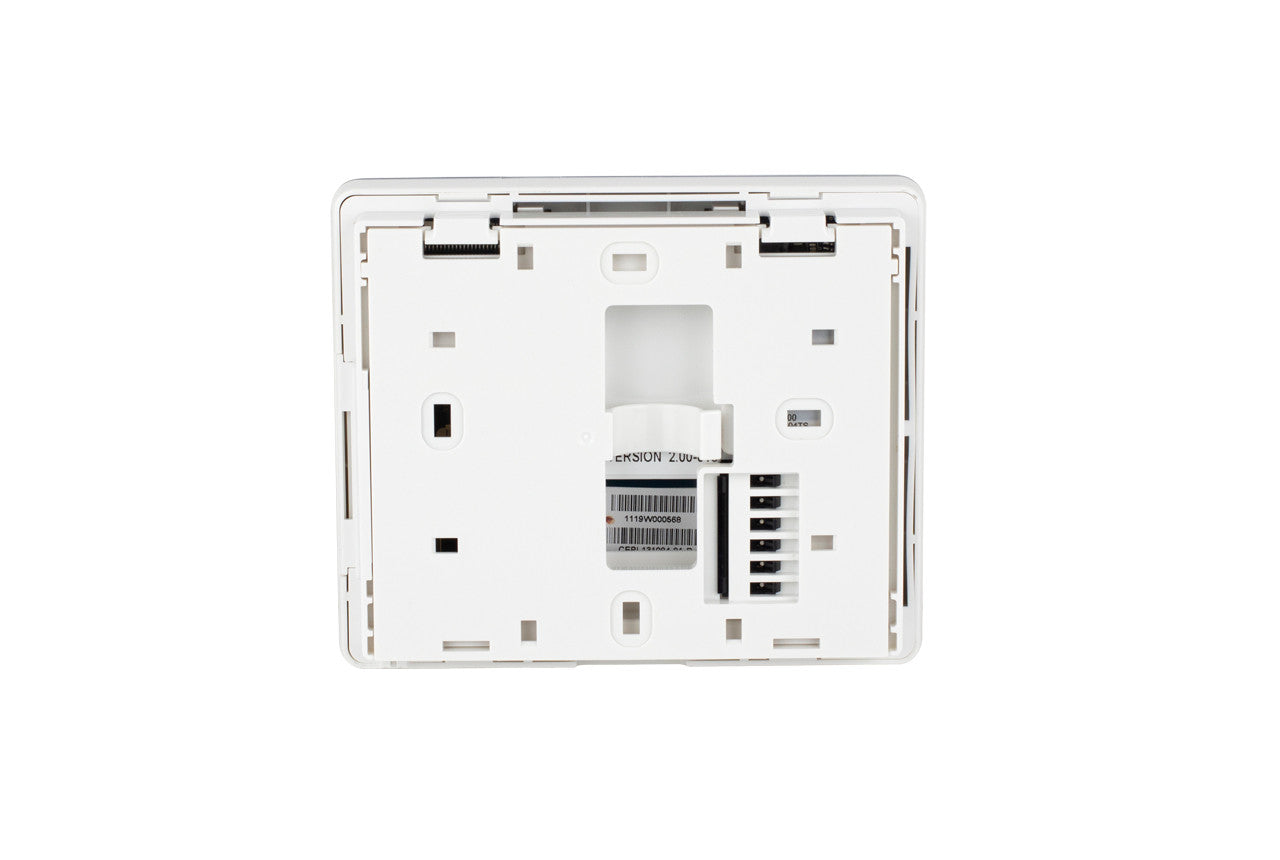

- Flexible Installation: Wall-mounted design with simple four-wire installation for commercial buildings.
- USB Support: USB host port allows firmware updates and touchscreen file management.
The EQT1-4-CAR delivers the reliability and precision required for local HVAC equipment monitoring, configuration, and building automation system operation.
