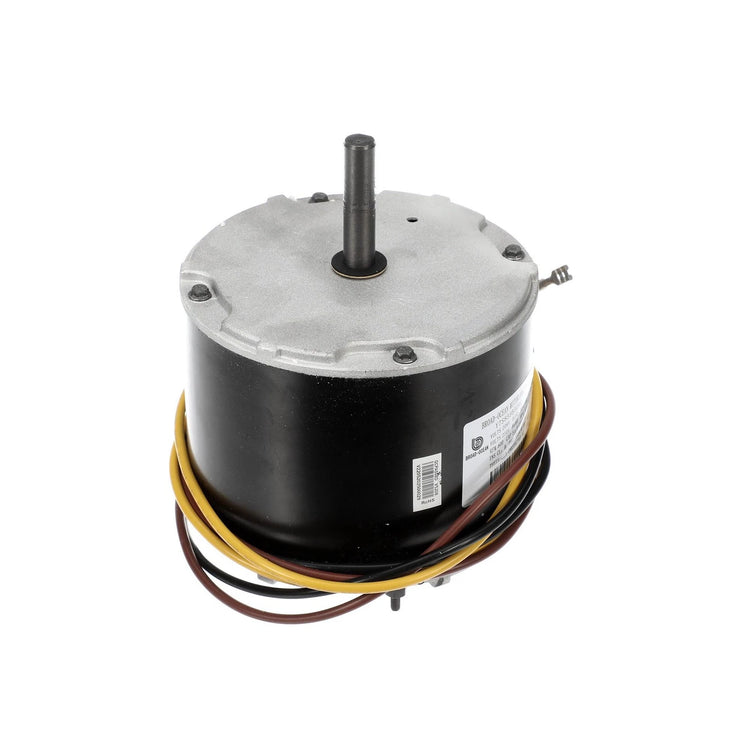

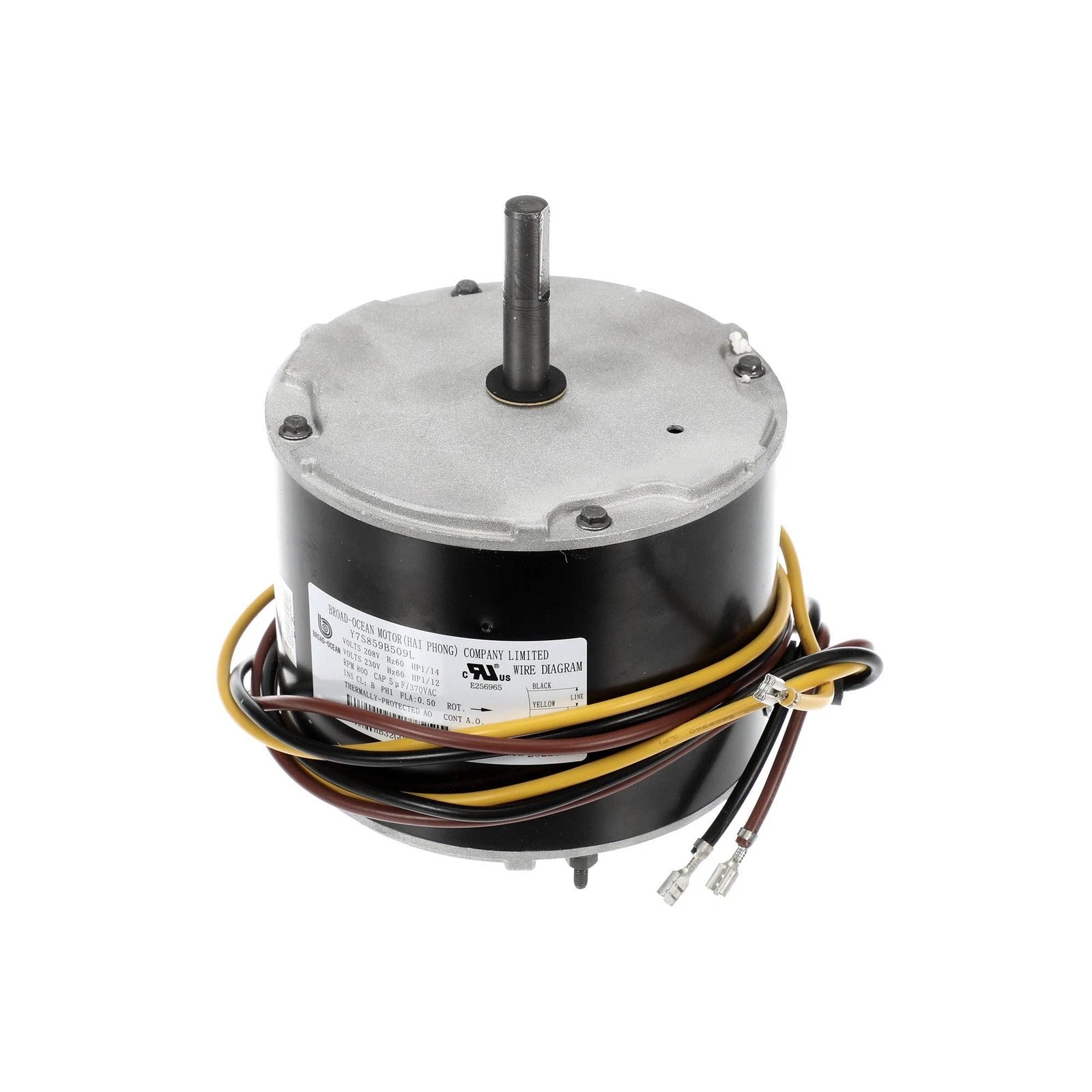

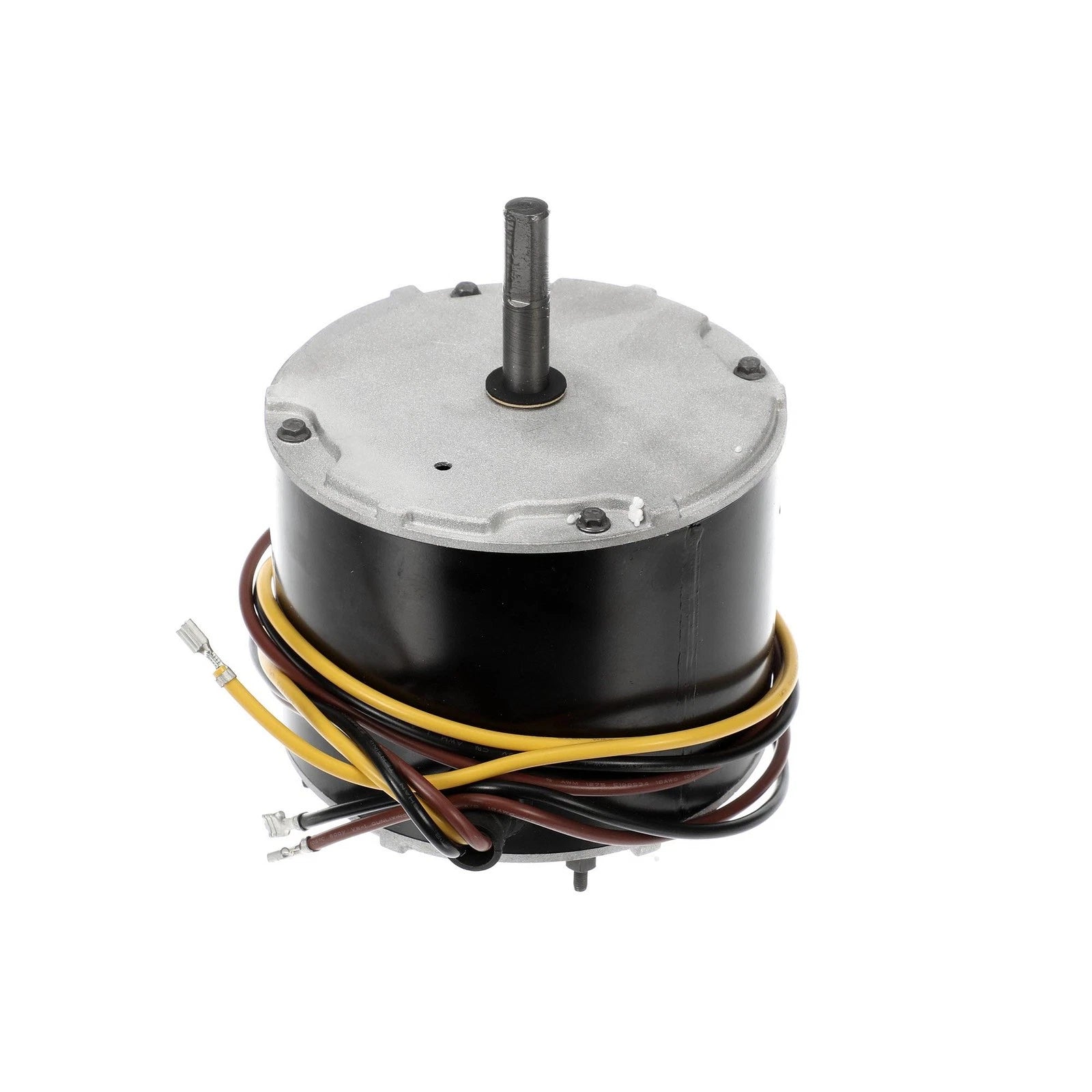

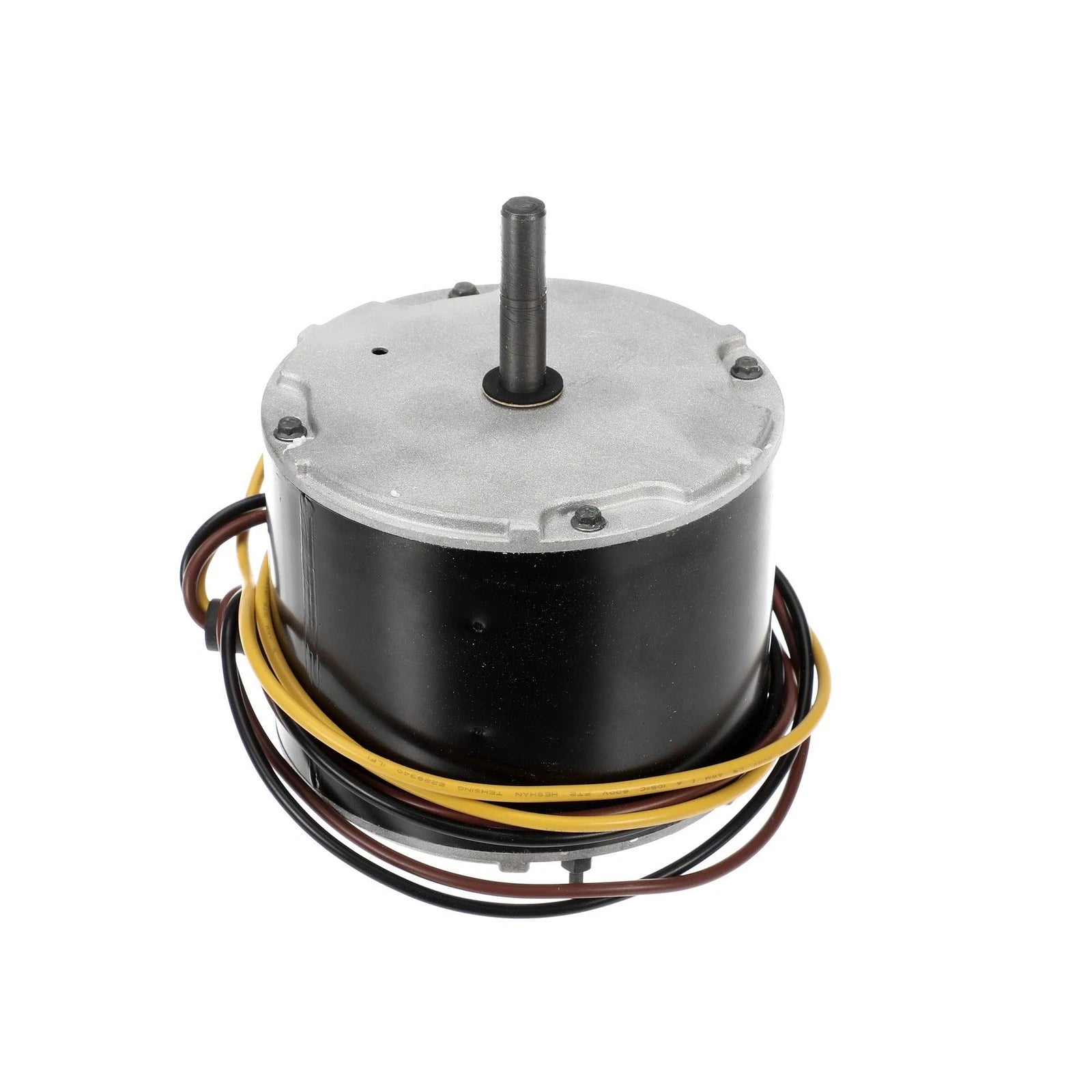

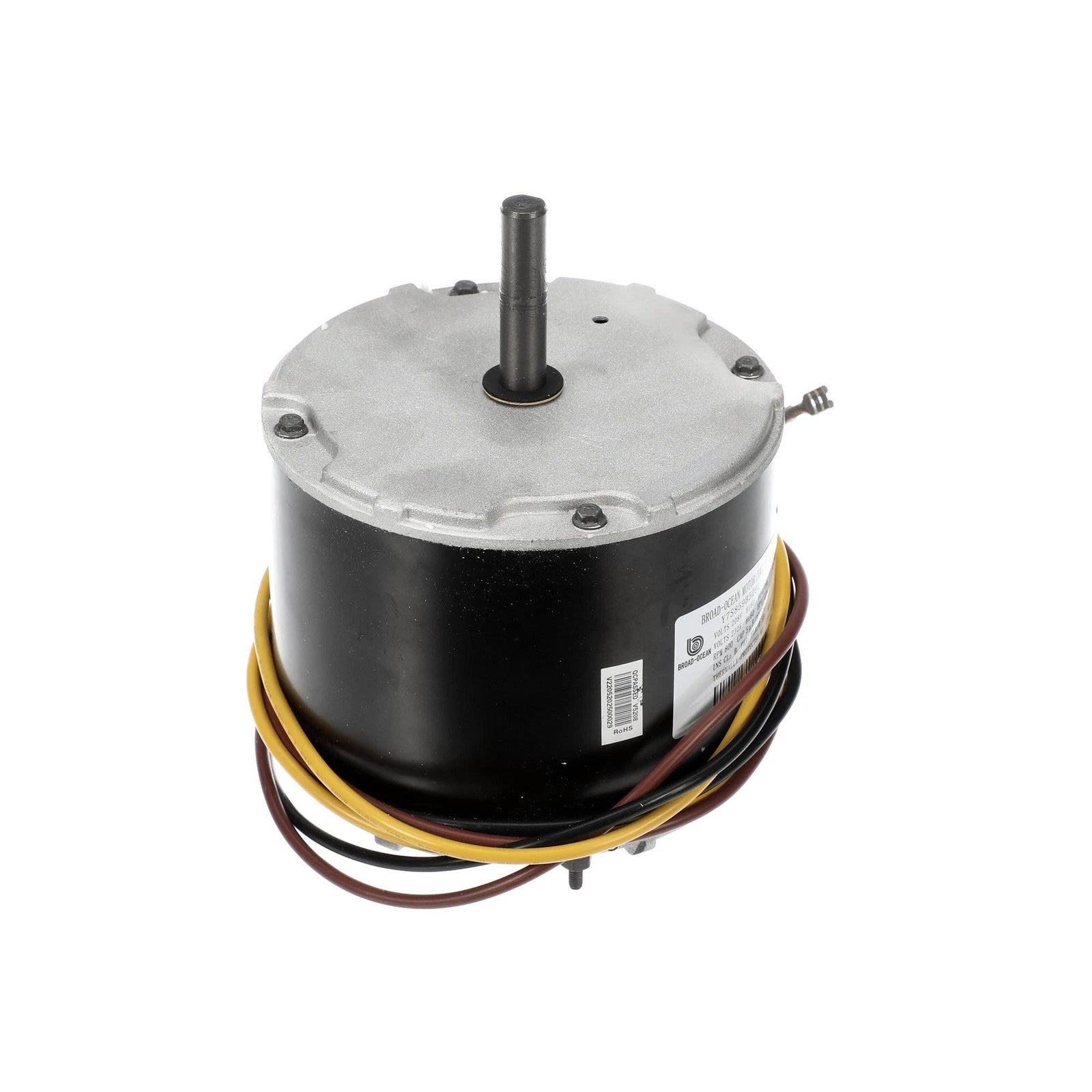

Carrier HB32GQ230 Factory Authorized 1/12 HP Condenser Fan Motor for Compatible Air Conditioners and Heat Pumps
- Regular price
- $302.00
- Sale price
- $302.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HB32GQ230
Description
The Carrier HB32GQ230 is a Factory Authorized Parts™ OEM condenser fan motor designed to provide dependable airflow for compatible Carrier air conditioners and heat pump outdoor units. Rated at 1/12 horsepower, this motor operates at 208–230 VAC and 800 RPM to maintain proper condenser cooling and system efficiency. It is manufactured to Carrier specifications for direct replacement in approved HVAC equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Carrier |
| Category | Motors/GearBox/Clutch |
| Part Number | HB32GQ230 |
| Subcategory | Motor |
| Product Type | Factory Authorized Parts™ Condenser Fan Motor |
| Motor Type | Permanent Split Capacitor (PSC) |
| Horsepower | 1/12 HP |
| Voltage | 208–230 VAC |
| Frequency | 50/60 Hz |
| Phase | Single Phase |
| Speed | 800 RPM |
| Full Load Amps | 0.50 A |
| Enclosure | Totally Enclosed Air Over (TEAO) |
| Frame Size | NEMA 48 |
| Rotation | Clockwise (Lead End) |
| Bearing Type | Ball Bearing |
| Mounting Type | Stud Mount |
| Weight | 4.54 kgs |
Information About HB32GQ230
The HB32GQ230 is a genuine Carrier Factory Authorized Parts™ condenser fan motor engineered for residential and light commercial outdoor condensing units. Built as a permanent split capacitor (PSC) motor, it features a totally enclosed air over (TEAO) enclosure that protects internal components while supporting continuous-duty operation. Designed as a direct OEM replacement, it maintains original airflow characteristics, electrical performance, and installation compatibility with approved Carrier, Bryant, and Payne equipment. The motor also replaces earlier Carrier part numbers HB32GR229 and HC31GE229, simplifying maintenance while preserving factory performance.
Key Features:
- Genuine OEM Component: Manufactured by Carrier as a Factory Authorized Parts™ replacement.
- 1/12 Horsepower Motor: Provides reliable condenser fan operation for compatible HVAC systems.
- 208–230 VAC Operation: Designed for standard single-phase residential and light commercial equipment.
- 800 RPM Speed: Maintains proper condenser airflow and heat rejection.
- PSC Motor Design: Permanent split capacitor construction supports efficient and dependable operation.
- TEAO Enclosure: Totally Enclosed Air Over design protects the motor during outdoor service.
- Direct Replacement Design: Replaces HB32GR229 and HC31GE229 in compatible equipment.
- Continuous Duty Construction: Built for long-term condenser fan operation under demanding HVAC conditions.
The HB32GQ230 delivers the reliability and precision required for efficient condenser airflow and dependable outdoor HVAC system performance.
