Carrier HC42GR238 OEM 230V 1/3 HP ECM Condenser Fan Motor
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HC42GR238
Description

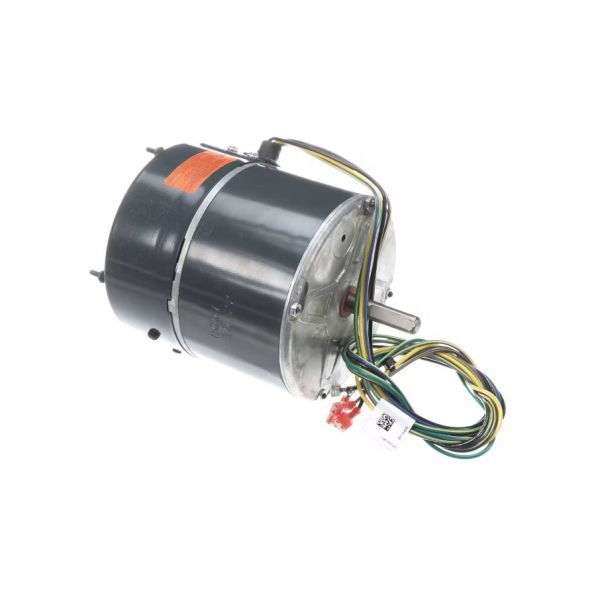

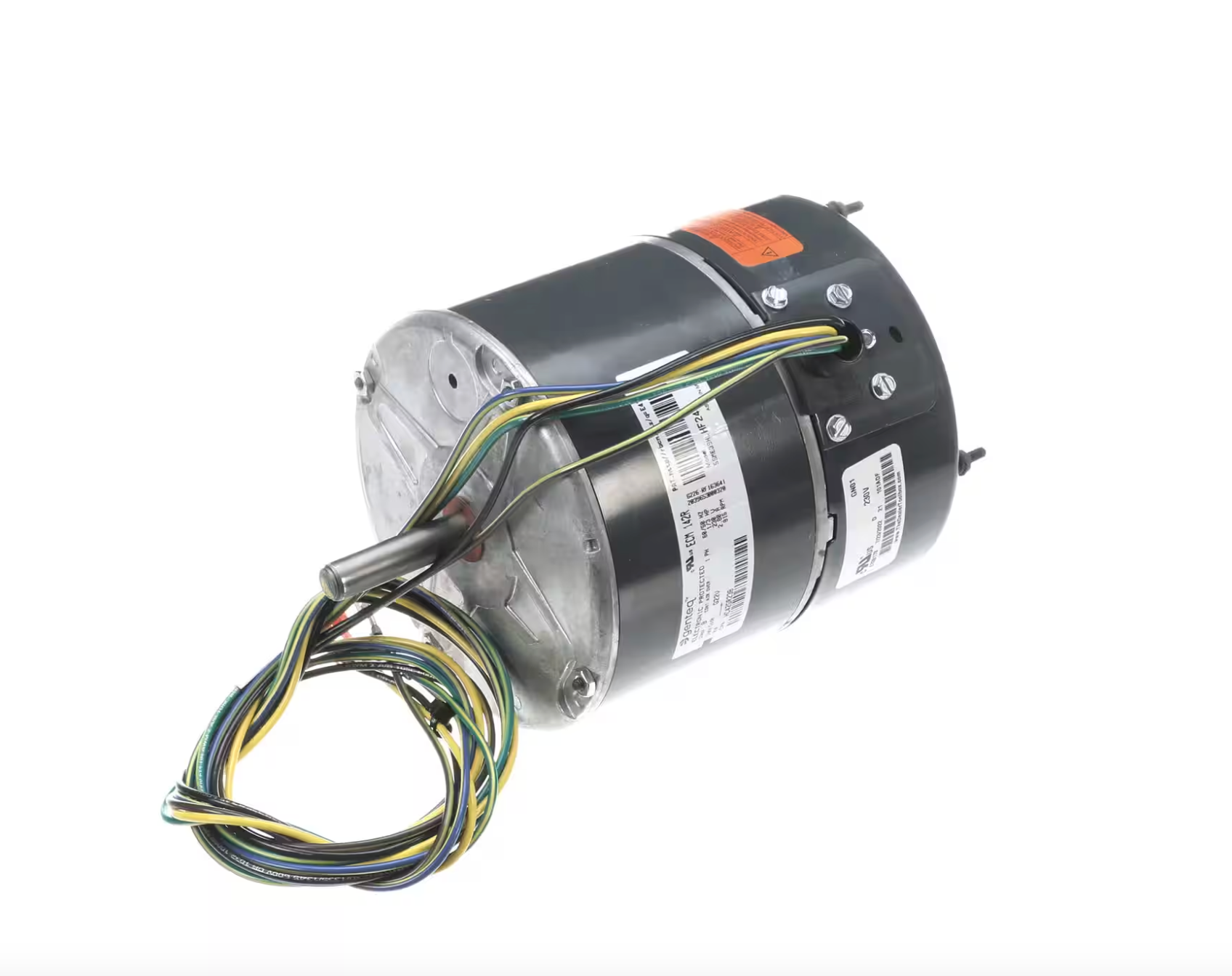

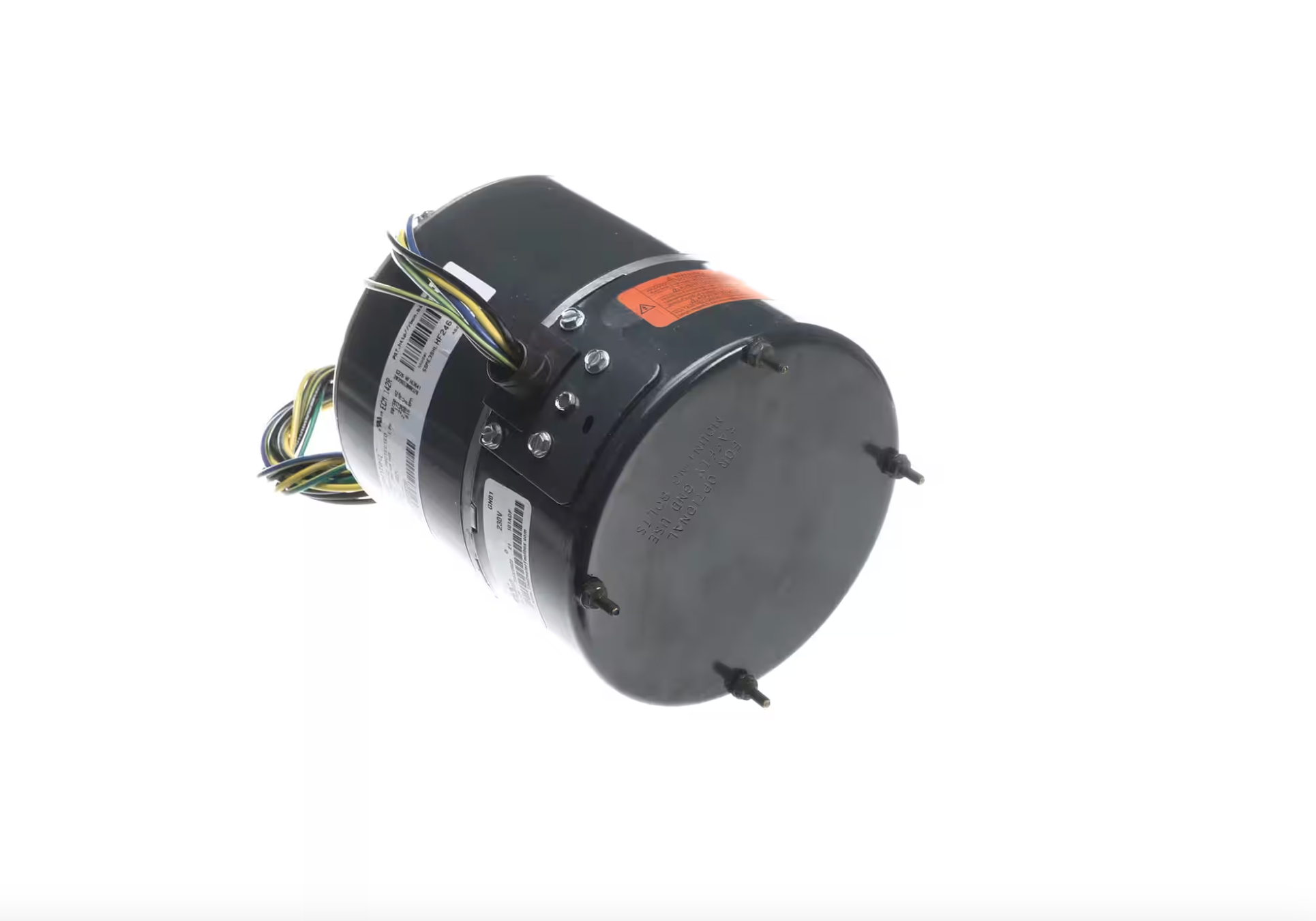

The Carrier HC42GR238 (manufactured by Genteq as model 5SME39HLHF246) is a premium, high-efficiency OEM replacement blower motor designed specifically for Carrier, Bryant, and Payne HVAC equipment. Utilizing advanced brushless DC technology and integrated electronic control, this ECM 142R series motor provides precise variable-speed airflow control, exceptional energy efficiency, and ultra-quiet operation in outdoor condensing and package units.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Carrier (OEM by Genteq) |
| Category | HVAC Blower Motor / Condenser Fan Motor |
| Part Number | HC42GR238 |
| Subcategory | ECM 142R Series |
| Motor Type | Brushless DC (ECM) |
| Voltage | 208–230 V AC, single-phase, 50/60 Hz |
| Horsepower | 1/3 HP (approximate, typical for this model) |
| Frame Size | NEMA 48-frame |
| Speed Range | Variable; up to 600 RPM (typical operating) / 200–1200 RPM range |
| Diagnostics | BlaKBox™ field data logging |
| Surge Protection | 6 kV |
| Noise Reduction | Speed ramping, resilient rotor design |
| Bearings | Ball bearings |
| Enclosure | Totally Enclosed Air Over (TEAO) |
| Weight | 12.7 lb (5.76 kg) |
Information About HC42GR238
The HC42GR238 is a genuine Carrier replacement ECM condenser fan motor developed for compatible Carrier, Bryant, and Payne HVAC systems. Operating on 230 VAC, 50/60 Hz single-phase power, it delivers 1/3 HP output for condenser fan applications while maintaining efficient airflow and system cooling performance. The motor features a totally enclosed air-over (TEAO) construction with ball bearings for continuous-duty operation and long service life. It is designed as a direct OEM replacement to restore original equipment performance and has been superseded by Carrier part number HD42GQ231.
Key Features:
- Genuine Carrier OEM Motor: Designed specifically for Carrier HVAC equipment.
- ECM Technology: Electronically commutated motor provides efficient variable-speed operation.
- 1/3 HP Output: Suitable for condenser fan applications.
- 230 VAC Operation: Operates on 230 V, 50/60 Hz, single-phase power.
- TEAO Enclosure: Totally Enclosed Air Over construction protects the motor during operation.
- Ball Bearing Design: Supports smooth operation and extended service life.
- Direct Replacement: Installs as an OEM replacement for compatible Carrier systems.
- Superseded Part: Replaced by Carrier part number HD42GQ231.
The HC42GR238 delivers the reliability and precision required for condenser fan operation in residential and commercial HVAC systems.
