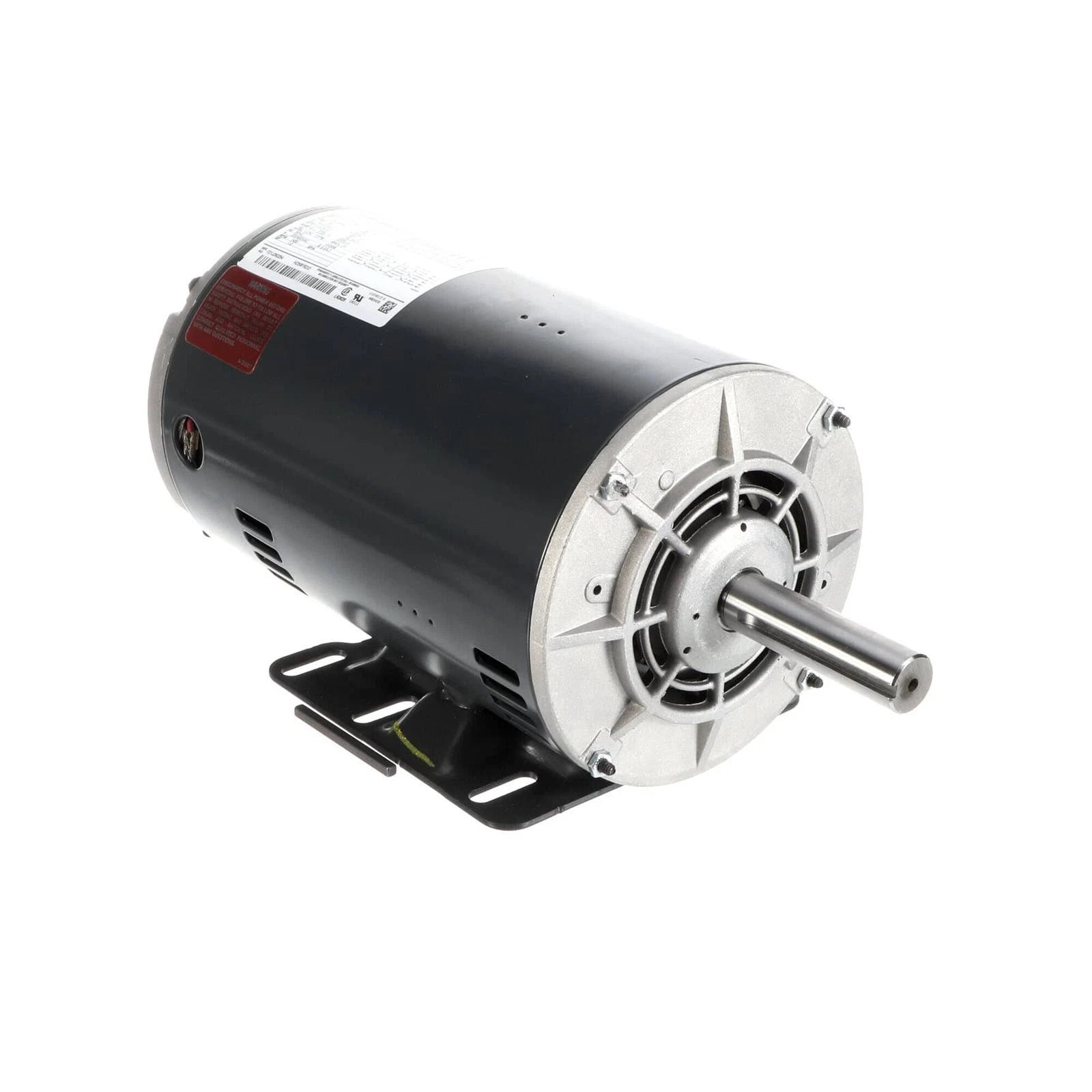

Carrier HD58FR233 2.9-Horsepower Three-Phase Belt-Drive Blower Motor
- Regular price
- $2,299.00
- Sale price
- $2,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HD58FR233
Description
The Carrier HD58FR233 is a three-phase belt-drive blower motor designed to power indoor fan and blower assemblies in compatible commercial heating, ventilation, and air-conditioning equipment. Rated at 2.9 horsepower and 1725 revolutions per minute, it operates from 208–230/460 volts alternating current and is used in Carrier rooftop units, air conditioners, heat pumps, and related air-handling equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Carrier |
| Category | Motors/GearBox/Clutch |
| Part Number | HD58FR233 |
| Subcategory | Motor |
| Product Type | Belt-Drive Blower Motor |
| Rated Output | 2.9 horsepower |
| Rated Voltage | 208–230/460 volts alternating current |
| Phase | Three-phase |
| Rated Speed | 1725 revolutions per minute |
| Number of Speeds | Single-speed |
| Motor Frame | 56 |
| Motor Enclosure | Open Drip-Proof |
| Drive Type | Belt Drive |
| Shaft Diameter | 0.875 inches |
| Shaft Length | 3.19 inches |
| Rotation | Clockwise or counterclockwise |
| Certifications | Canadian Standards Association Listed |
| Weight | 48.00 lbs |
Information About HD58FR233
The HD58FR233 is a Carrier blower motor built as a three-phase, single-speed motor for belt-driven air-moving applications. The motor uses a 56 frame, open drip-proof enclosure, 0.875-inch shaft diameter, and 3.19-inch shaft length for mechanical connection to compatible blower drive assemblies. It is rated for 208–230/460-volt alternating-current service and operates at a nominal speed of 1725 revolutions per minute at 60 hertz. Carrier parts data identifies HD58FR233 for numerous compatible 40RU, 48HC, 48TC, 50HC, and related commercial equipment configurations, supporting its use as an original replacement motor in packaged and split-system heating, ventilation, and air-conditioning equipment.
Key Features:
- 2.9-Horsepower Output: Provides a rated output of 2.9 horsepower for driving compatible commercial heating, ventilation, and air-conditioning blower assemblies.
- Three-Phase Operation: Uses three-phase electrical power for operation in compatible commercial equipment.
- Multiple-Voltage Design: Supports 208–230/460-volt alternating-current electrical systems, allowing installation across compatible Carrier equipment configurations.
- 1725 Revolutions Per Minute Speed: Provides a nominal motor speed of 1725 revolutions per minute at 60 hertz for belt-driven blower operation.
- Belt-Drive Configuration: Designed specifically as a belt-drive blower motor for transferring motor output to compatible fan and blower assemblies.
- Open Drip-Proof Enclosure: Uses an open drip-proof motor enclosure suitable for protected installation within compatible heating, ventilation, and air-conditioning equipment.
- 56 Motor Frame: Built on a 56-frame configuration with a 0.875-inch-diameter shaft for compatible mechanical installations.
- Broad Carrier Equipment Compatibility: Listed for numerous Carrier rooftop, packaged, heat-pump, and air-handling equipment models requiring this specific blower motor.
The HD58FR233 delivers the reliability and precision required for belt-driven air circulation in compatible commercial heating, ventilation, and air-conditioning equipment.
