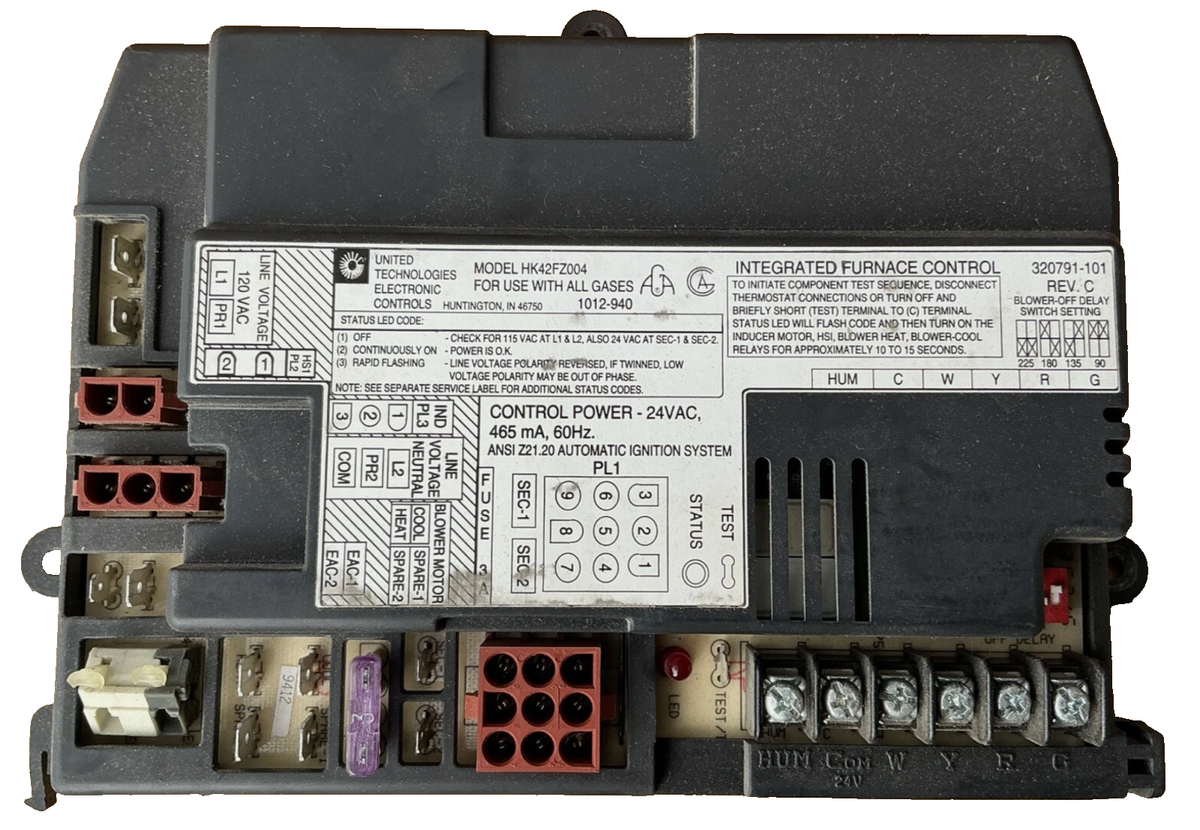

Carrier HK42FZ004 Furnace Control Board 24 VAC HVAC Replacement
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HK42FZ004
Description
The Carrier HK42FZ004 is a furnace control board designed to manage ignition, blower, inducer motor, and gas valve functions in compatible HVAC equipment. The control operates with a 24 VAC control circuit and accepts a 98–132 VAC supply at 60 Hz.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Carrier |
| Category | HVAC & Refrigeration |
| Part Number | HK42FZ004 |
| Subcategory | Furnace Control Boards |
| Product Type | Furnace Control |
| Control Voltage | 24 VAC |
| Input Voltage | 98–132 VAC |
| Frequency | 60 Hz |
| Ignitor Rating | 5 A at 120 VAC |
| Cool Blower Rating | 30 A, 2 HP at 240 VAC |
| Heat Rating | 5 A, 1/2 HP at 240 VAC |
| Inducer Motor Rating | 4 A at 120 VAC |
| Inducer Motor FLA | 8.0 A |
| Inducer Motor LRA | 8.0 A |
| Country of Origin | USA |
| Cubic Measurement | 0.0347 |
| Dimensions | 5 × 8 × 1.5 inches |
| Weight | 0.55 lbs |
Information About HK42FZ004
The HK42FZ004 is a furnace control module identified with ICM Controls in the supplied product information and intended for compatible Carrier HVAC applications. Its control architecture provides switching and sequencing functions for ignition, cooling blower, heating, inducer motor, and gas valve loads. The board supports specified electrical loads including a 5 A ignitor, 30 A cooling blower, 5 A heating circuit, and 4 A inducer motor rating. The unit measures 5 × 8 × 1.5 inches and is manufactured in the USA according to the supplied specifications.
Key Features:
- Furnace Control: Provides electronic control functions for compatible furnace equipment.
- Control Voltage: Operates with a 24 VAC control circuit.
- Input Voltage: Supports 98–132 VAC at 60 Hz.
- Ignitor Output: Rated at 5 A at 120 VAC for compatible ignition loads.
- Cool Blower Output: Rated at 30 A and 2 HP at 240 VAC.
- Heat Output: Rated at 5 A and 1/2 HP at 240 VAC.
- Inducer Motor Output: Rated at 4 A at 120 VAC with the supplied FLA/LRA specification.
- Compact Design: Measures 5 × 8 × 1.5 inches and weighs 0.55 lbs.
The HK42FZ004 delivers the reliability and precision required for furnace control and HVAC equipment applications.
