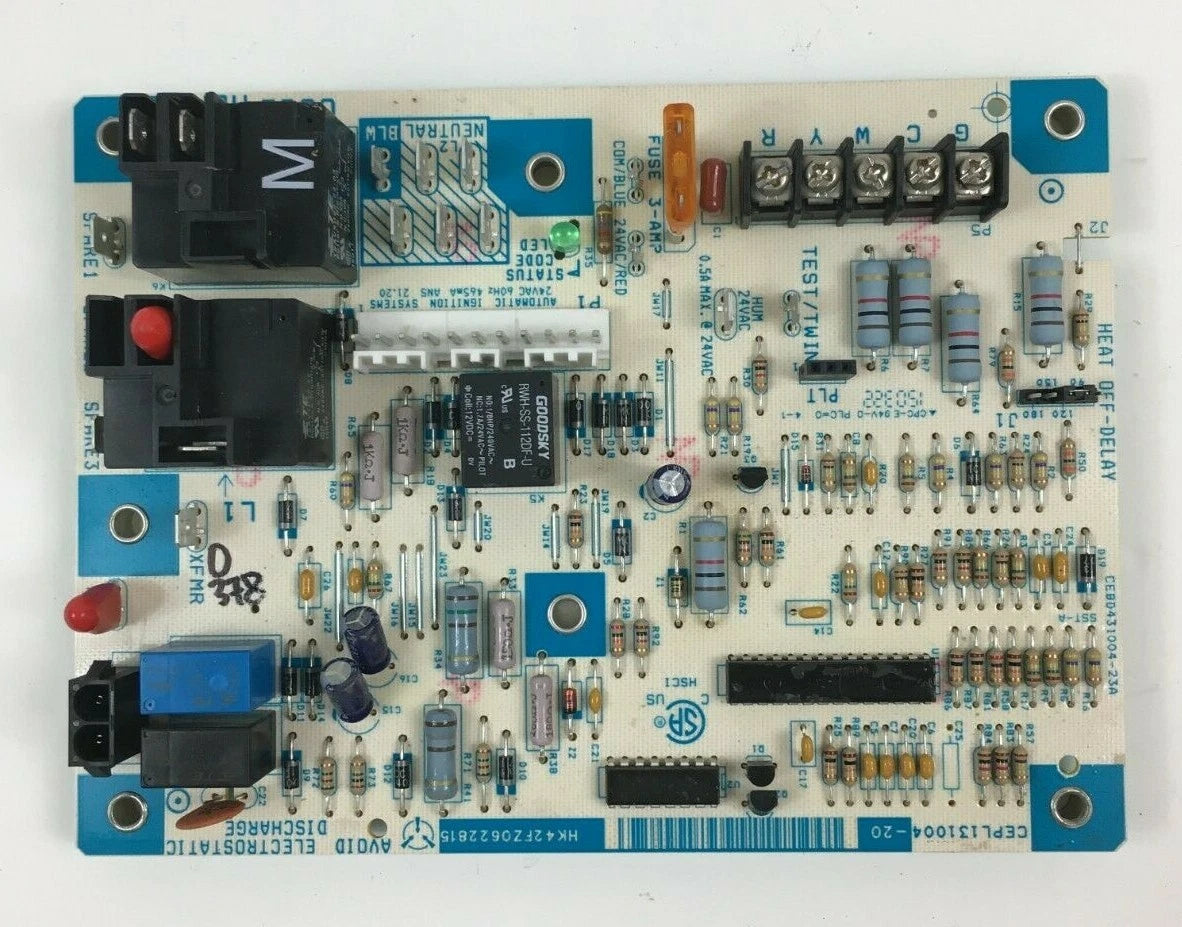

Carrier HK42FZ062 Furnace Control Circuit Board
- Regular price
- $382.00
- Sale price
- $382.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HK42FZ062
Description
Carrier HK42FZ062 is a furnace control circuit board designed to manage ignition, blower operation, thermostat inputs, and safety-related control functions in compatible HVAC systems. It is associated with the CEPL131004-20 control board and is used in compatible Carrier, Bryant, and related furnace applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Carrier |
| Category | HVAC |
| Part Number | HK42FZ062 |
| Subcategory | Furnace Control Boards |
| Board Type | Furnace Control Circuit Board |
| Associated Part Number | CEPL131004-20 |
| Application | Gas Furnace Control |
| Ignition Type | Hot Surface Ignition (HSI) |
| Ignitor Voltage | 120 VAC |
| Heating Stages | Single Stage |
| Cooling Stages | Single Stage |
| Motor Configuration | PSC Inducer and Blower |
| Thermostat Terminals | R, C, W, Y, G |
| Blower Speed Connections | Lo Heat/Fan, Hi Heat, Cool |
| Power Source | Corded Electric |
| Installation Type | Flush Mount |
| Compatible Brands | Carrier, Bryant, Payne, ICP, Heil, Tempstar |
| Weight | Approximately 1 lb (0.45 kg) |
Information About HK42FZ062
The HK42FZ062 is a Carrier furnace control board associated with the CEPL131004-20 part number and compatible control-board family. It is intended for integration into specific residential and light-commercial furnace configurations using electronic ignition and PSC blower or inducer motors. The board processes thermostat demands and coordinates heating, cooling, blower, and ignition sequences according to the connected furnace configuration. Its control architecture incorporates dedicated terminals and electronic monitoring functions for system operation and safety control.
Key Features:
- Control Function: Coordinates furnace ignition, blower operation, thermostat commands, and system control sequences.
- Part Number Cross-Reference: Associated with Carrier/ICP CEPL131004-20 control board assemblies.
- Ignition Type: Designed for furnace applications using hot-surface ignition.
- Motor Compatibility: Supports PSC-style inducer and blower motor configurations.
- Thermostat Inputs: Provides connections for R, C, W, Y, and G thermostat control signals.
- Heating Control: Supports single-stage heating operation in compatible furnace systems.
- Blower Control: Provides separate blower-speed control connections for heating and cooling operation.
- Installation: Designed as a direct replacement control board for compatible furnace assemblies. The HK42FZ062 delivers the reliability and precision required for furnace control, ignition sequencing, blower management, and HVAC system operation.
