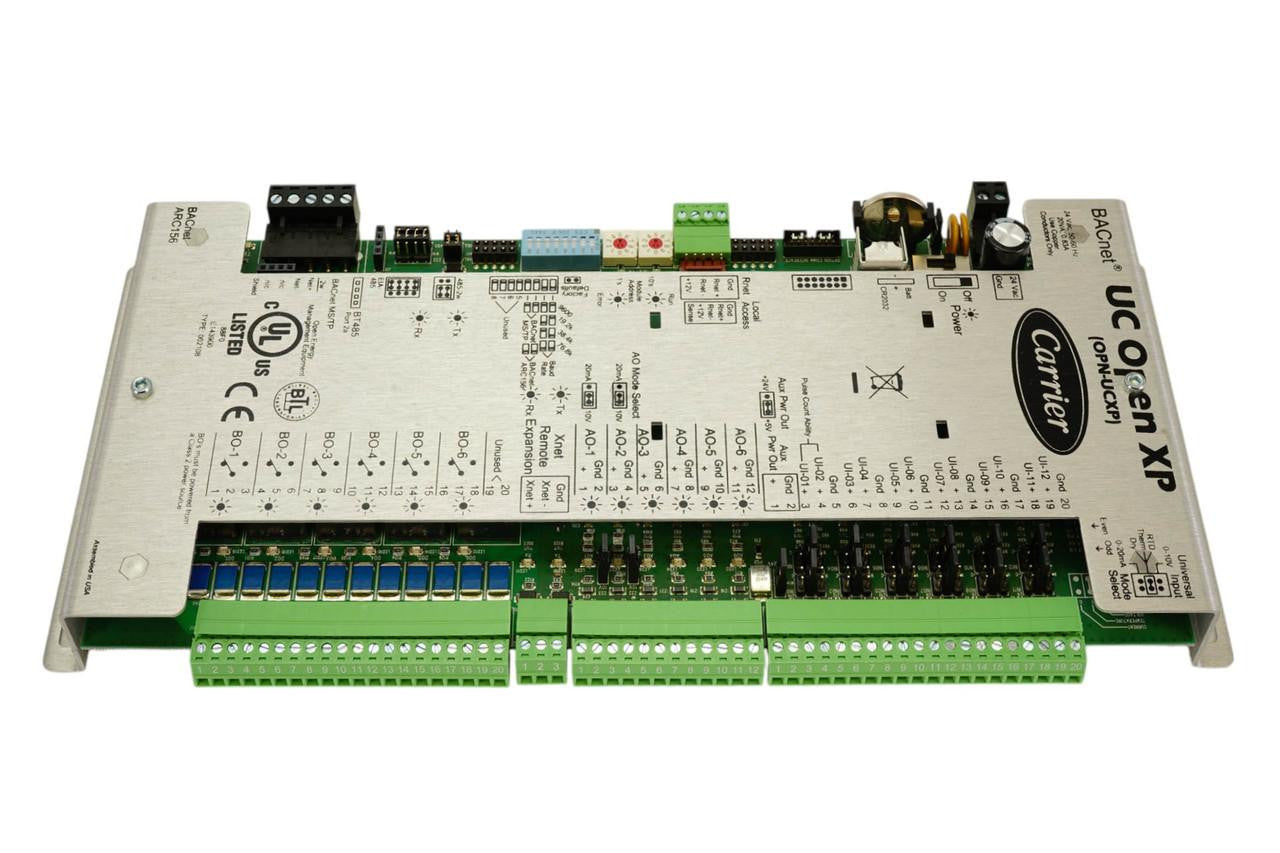

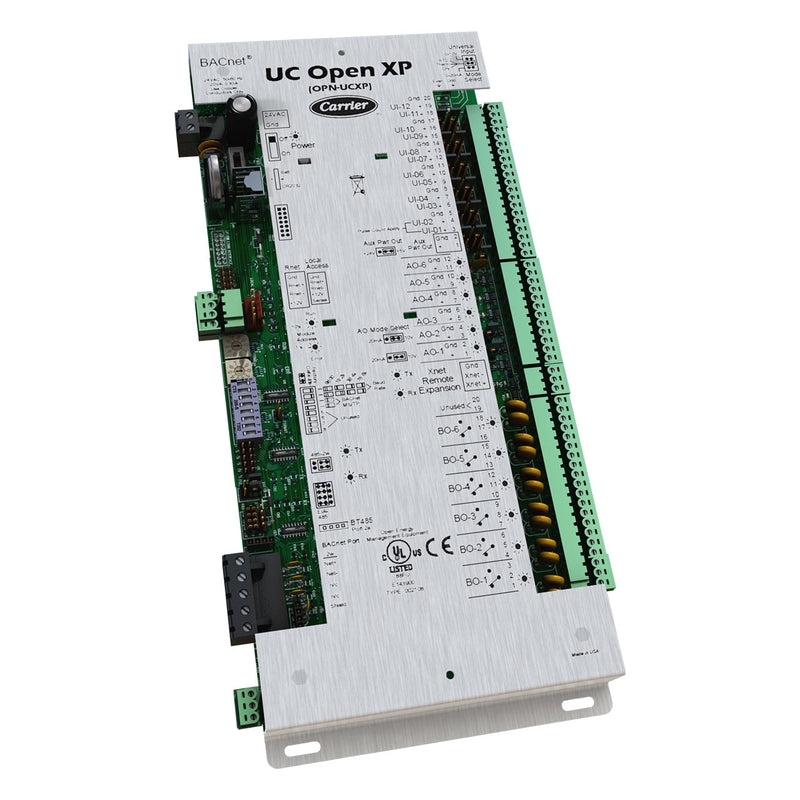

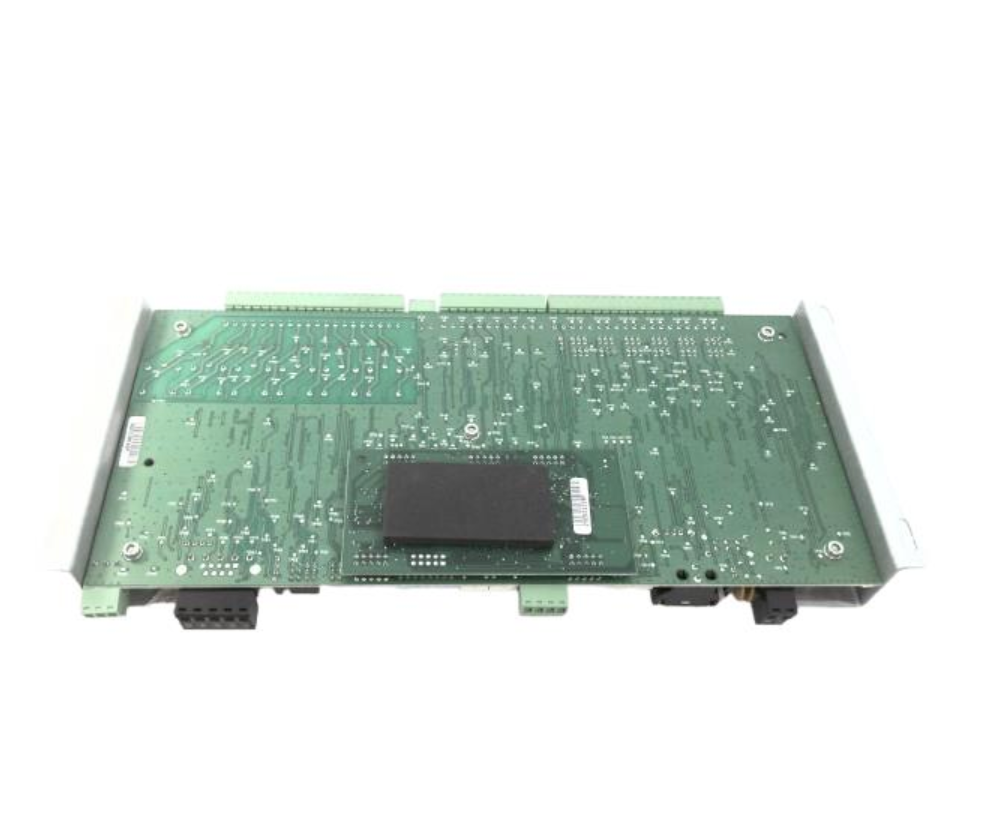

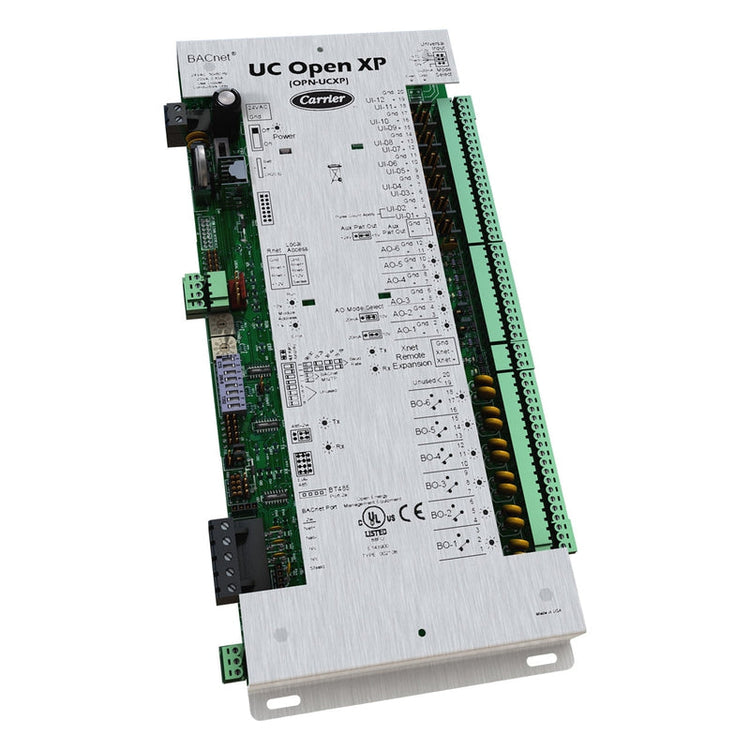

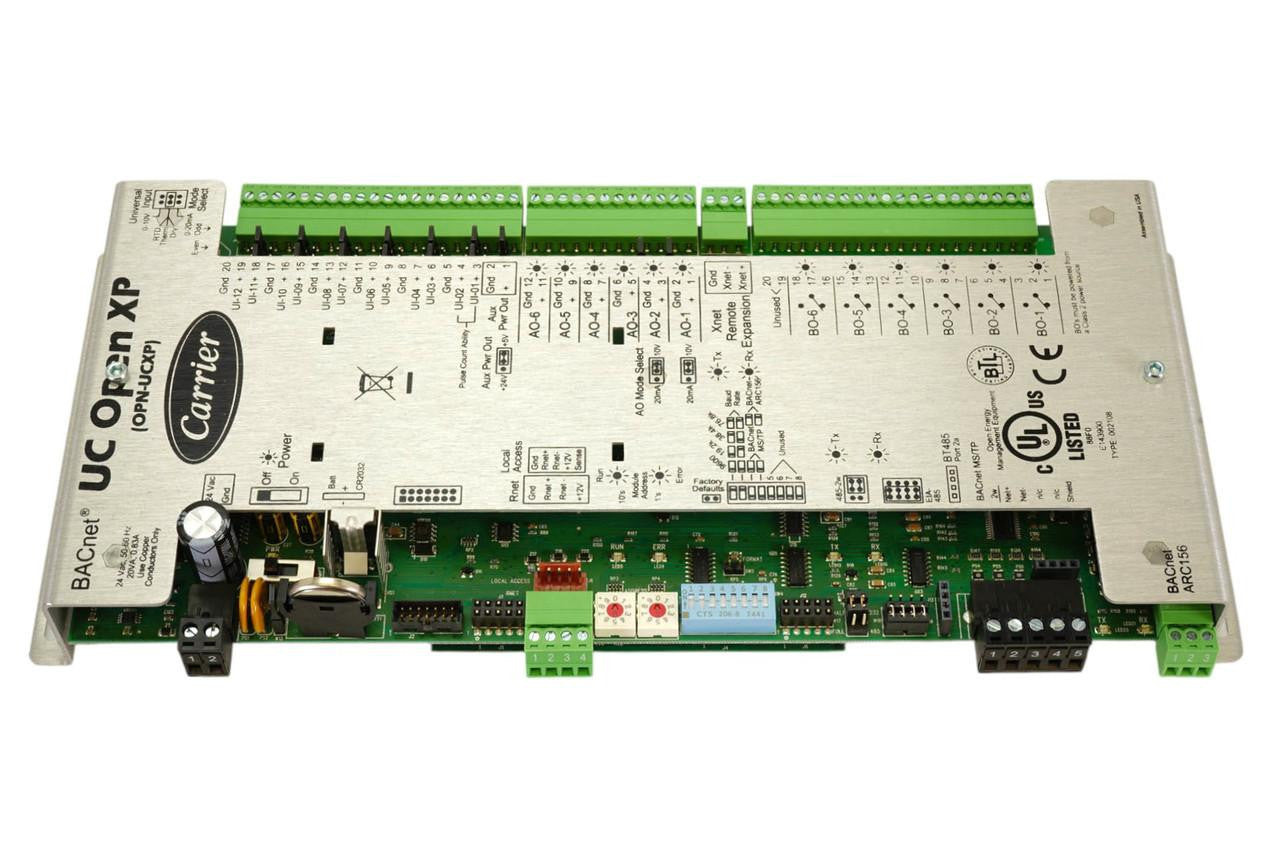

Carrier OPN-UCXP UC Open XP Programmable BACnet General Purpose Controller
- Regular price
- $2,099.00
- Sale price
- $2,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OPN-UCXP
Description
The Carrier OPN-UCXP is a universal programmable general-purpose controller designed for advanced HVAC and building automation applications. It supports flexible control of air handlers, chiller plants, hydronic systems, lighting, and energy management equipment through native BACnet communication. The controller provides scalable I/O capacity and seamless integration with the Carrier i-Vu® Building Automation System.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Carrier |
| Category | Controls & Indicators |
| Part Number | OPN-UCXP |
| Subcategory | Control |
| Series | i-Vu® UC Open XP |
| Product Type | General Purpose Programmable Controller |
| Controller Type | Advanced Application Controller (B-AAC) |
| Communication Protocol | BACnet MS/TP |
| Maximum I/O Capacity | Up to 48 I/O Points |
| Onboard Inputs | 12 Universal Inputs |
| Input Signal Types | 0–10 V, 0–20 mA, RTD, Thermistor, Dry Contact |
| Analog Outputs | 6 (0–10 V, Outputs 1–2 Configurable for 0–20 mA) |
| Binary Outputs | 6 |
| Supply Voltage | 24 VAC ±10% or 26 VDC |
| Frequency | 50/60 Hz |
| Power Consumption | 18 VA |
| Programming | Snap Graphical Programming |
| Mounting | Panel Mount |
| Application | HVAC and Building Automation |
| Weight | 0.91 kgs |
Information About OPN-UCXP
The OPN-UCXP is a member of the Carrier i-Vu® UC Open XP controller family developed for commercial building automation systems. It is universally programmable and supports factory-engineered applications as well as custom control strategies using Snap graphical programming. The controller features onboard universal inputs and outputs with support for additional expansion modules, allowing installations to scale up to 48 I/O points. Native BACnet MS/TP communication, integrated scheduling, trend logging, and advanced HVAC control functions make it suitable for air handling units, chilled water plants, boilers, lighting systems, and other building equipment.
Key Features:
- Universal Programmability: Supports factory applications and custom Snap graphical programming.
- BACnet MS/TP Communication: Provides native BACnet networking for open building automation integration.
- Scalable I/O Capacity: Supports expansion up to 48 total input/output points with UC Open XP I/O modules.
- Flexible Universal Inputs: Twelve configurable inputs support 0–10 V, 0–20 mA, thermistors, RTDs, and dry contacts.
- Multiple Output Types: Includes binary and analog outputs for comprehensive HVAC equipment control.
- Real-Time Clock: Battery-backed clock maintains schedules and trend data during power interruptions.
- Commercial HVAC Applications: Suitable for air handlers, chiller plants, pumps, boilers, lighting, and energy metering.
- Carrier i-Vu Integration: Fully compatible with the Carrier i-Vu Building Automation System for centralized management.
The OPN-UCXP delivers the reliability and precision required for commercial HVAC, energy management, and building automation control applications.
