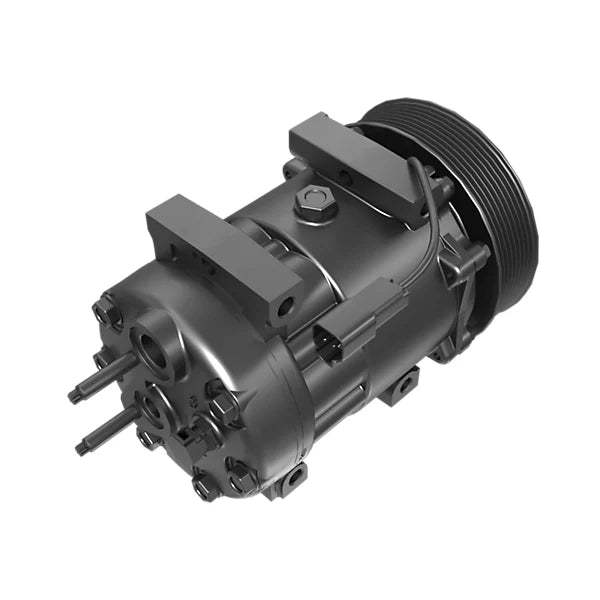

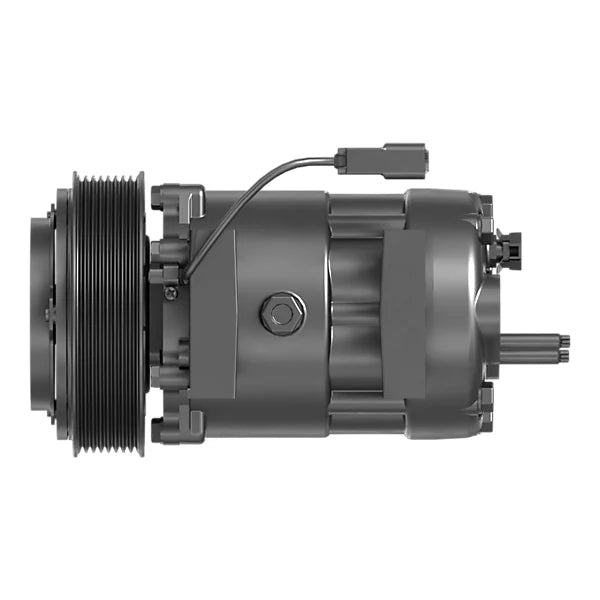

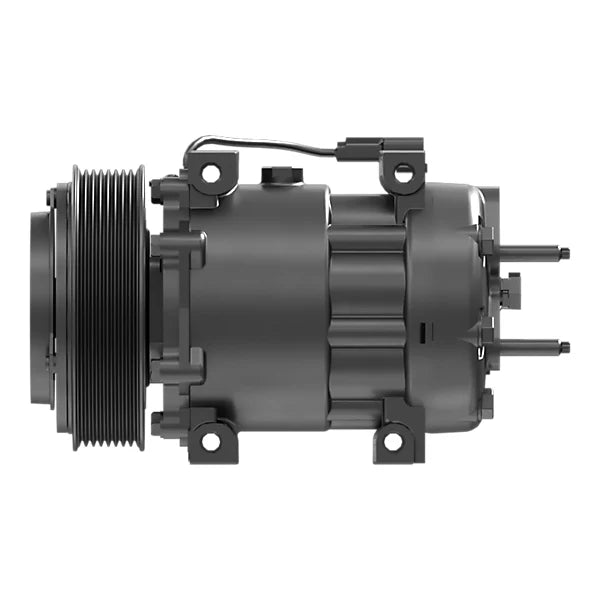

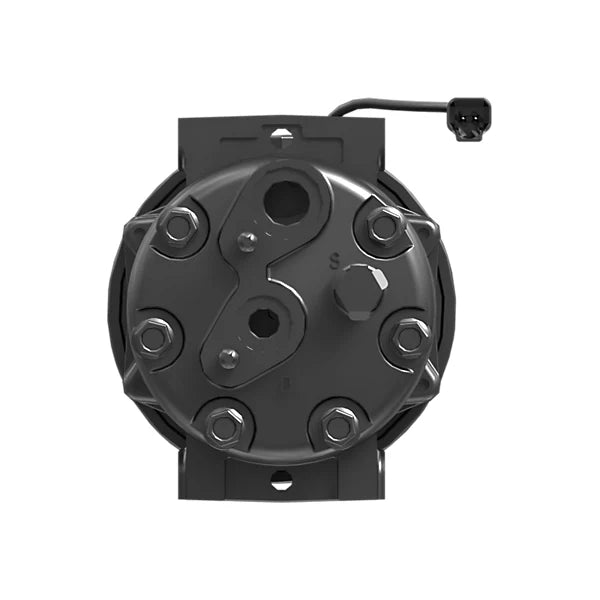

Caterpillar 568-5480 24V R134a Heavy-Duty Refrigerant HVAC Compressor with Sealed Clutch
- Regular price
- $855.00
- Sale price
- $855.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 568-5480
Description
The Caterpillar 568-5480 is a 24V heavy-duty refrigerant compressor designed to circulate and compress R134a refrigerant within compatible Cat equipment HVAC systems. Its aluminum construction, sealed clutch, and PV-8 belt drive support dependable cooling performance in operator compartments exposed to demanding working conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Caterpillar |
| Category | HVAC Components |
| Part Number | 568-5480 |
| Subcategory | Refrigerant Compressors |
| Product Type | HVAC Refrigerant Compressor |
| Alternate Part Number | 5685480, CA5685480 |
| Material | Aluminum / Aluminum Alloy |
| Refrigerant Compatibility | R134a |
| Voltage | 24 V |
| Connector Type | 2-Pin Ampseal 16 |
| Harness Length | 280 mm (11.0 in) |
| Clutch Type | Heavy-Duty Sealed Clutch |
| Drive Belt Type | PV-8 |
| Bore Diameter | 1.15 in |
| Operating Temperature | 0°C to 95°C |
| Weight | 20.0 lb (9.07 kg) |
Information About 568-5480
The 568-5480 is a Caterpillar HVAC compressor configured for heavy equipment air-conditioning systems using R134a refrigerant. Its aluminum assembly incorporates a heavy-duty sealed clutch, 137 mm pulley, and PV-8 drive-belt interface for engine-driven operation. A 2-pin Ampseal 16 connector and 280 mm electrical harness provide the interface for the machine's 24V electrical system. The compressor is used in compatible Caterpillar equipment where continuous refrigerant compression is required to maintain controlled operator-cab temperatures.
Key Features:
- 24V Electrical System: Configured for 24-volt electrical circuits used in compatible Caterpillar heavy equipment.
- R134a Compatibility: Designed to compress R134a refrigerant within the machine HVAC cooling circuit.
- Sealed Clutch: Heavy-duty sealed clutch provides controlled engagement of the engine-driven compressor.
- PV-8 Belt Drive: Uses an eight-groove belt interface for mechanical drive from the engine accessory system.
- 137 mm Pulley: Equipped with a 137 mm (5.4 in) pulley for the specified compressor drive arrangement.
- 2-Pin Connection: Uses an Ampseal 16 two-pin electrical connector with a 280 mm (11.0 in) harness.
- Aluminum Construction: Aluminum and aluminum-alloy components provide a durable compressor structure while controlling assembly weight.
- Wide Temperature Range: Specified for operation from 0°C to 95°C in applicable equipment environments.
The 568-5480 delivers the reliability and precision required for refrigerant compression and consistent HVAC cooling in compatible Caterpillar heavy equipment.
