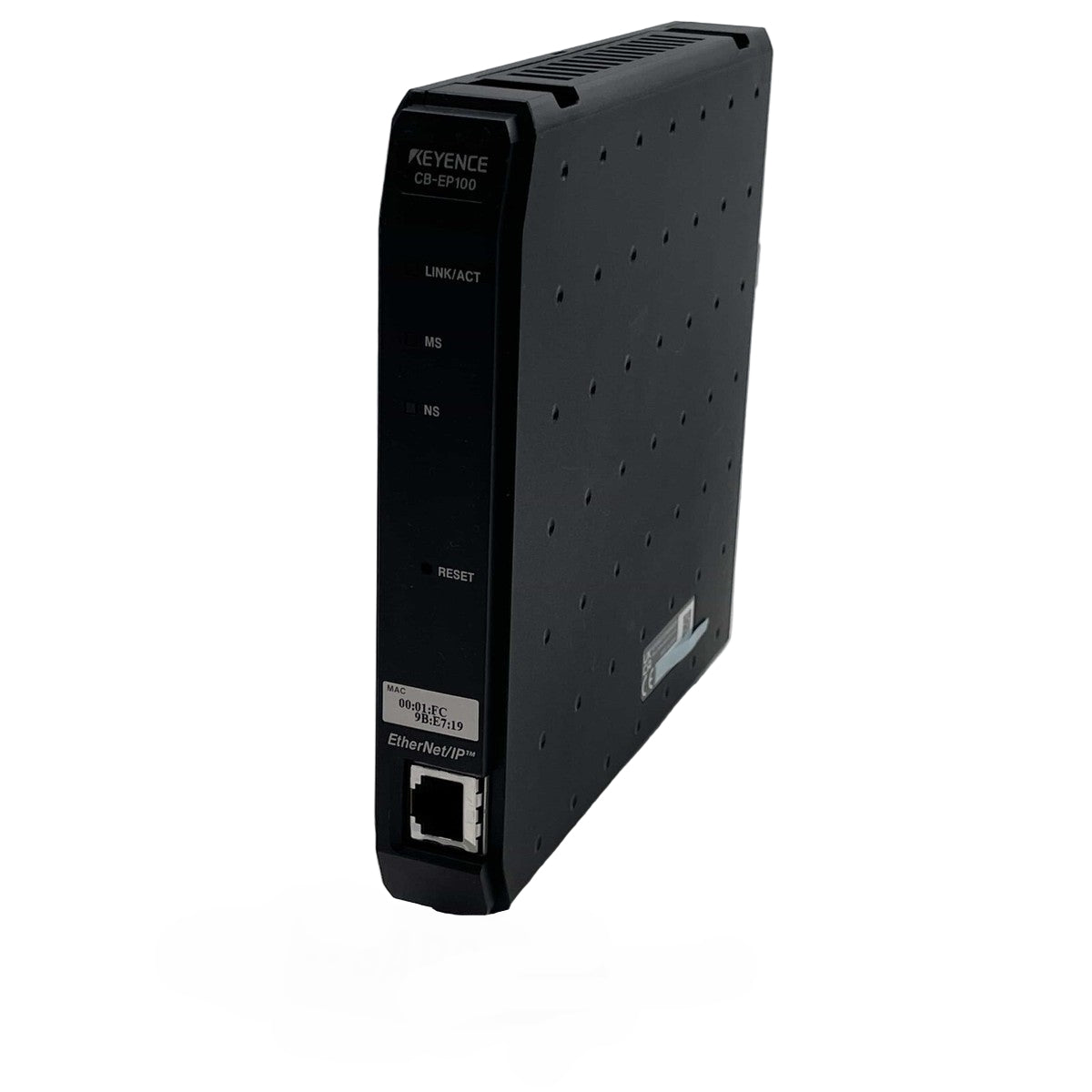

CB-EP100 | Keyence EtherNet/IP™ Communication Unit for 2D Laser Profilers
- Regular price
- $402.00
- Sale price
- $402.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: CB-EP100
Description
The Keyence CB-EP100 is an EtherNet/IP™ communication unit designed for high-speed industrial networking and integration with Keyence 2D laser profilers and other compatible controllers. It enables seamless data exchange between measurement systems and factory automation networks using EtherNet/IP and displacement sensor–specific protocols. Supporting both 10 Mbps and 100 Mbps transfer speeds, the CB-EP100 ensures fast, stable, and reliable communication for demanding industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | PLCs / Machine Control |
| Part Number | CB-EP100 |
| Subcategory | PLC Module / Rack |
| Type | EtherNet/IP™ Communication Unit |
| Compatible Networks | EtherNet/IP™, displacement sensor–specific protocols (socket communication) |
| Ethernet Standards | IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX) |
| Transmission Speed | 10 Mbps / 100 Mbps |
| Transmission Media | STP or Category 3+ UTP (10BASE-T); STP or Category 5+ UTP (100BASE-TX) |
| Max Cable Length | 100 m (328.1 ft) between unit and Ethernet switch |
| Max Connectable Hubs | 4 hubs (10BASE-T) / 2 hubs (100BASE-TX) |
| Supported Functions | Cyclic (implicit) and message (explicit) communication |
| Communication Compatibility | UCMM, Class 3 |
| Max Number of Connections | 64 |
| RPI (Requested Packet Interval) | 0.5 ms to 10,000 ms (adjustable in 0.5 ms steps) |
| Communication Bandwidth | 6,000 pps (cyclic) |
| Conformance | EtherNet/IP Version A9 compatible |
| Power Voltage | 24 VDC ±10%, ripple (P-P) 10% or less |
| Current Consumption | 0.12 A or less |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature | −10°C to +60°C (14°F to 140°F) |
| Relative Humidity | 20% to 85% RH (no condensation) |
| Environmental Resistance | Conforms to industrial-grade standards |
| Interface Type | RJ45 Ethernet ports |
| Mounting | DIN rail or panel mount (depending on system configuration) |
| Weight | Approx. 1.04 lbs (470 g) |
Information About CB-EP100
The CB-EP100 EtherNet/IP Unit acts as an interface module allowing Keyence laser profilers and displacement sensors to connect to PLCs and other automation equipment using EtherNet/IP™ protocols. It supports cyclic (implicit) and message-based (explicit) communication, compatible with UCMM and Class 3 device profiles. The module can maintain up to 64 simultaneous connections with a RPI (Requested Packet Interval) range of 0.5 ms to 10,000 ms, providing flexible real-time data control. Designed for industrial environments, it operates within a wide temperature range and features solid environmental resistance with 20–85% RH tolerance.
Key Features:
- Industrial Communication Module: Enables EtherNet/IP™ connectivity for Keyence sensors and profilers.
- High-Speed Data Transfer: Supports both 10 Mbps and 100 Mbps (10BASE-T / 100BASE-TX).
- Cyclic and Message Communication: Supports implicit and explicit data exchanges.
- Multiple Connections: Handles up to 64 simultaneous connections for complex systems.
- Wide RPI Range: Adjustable from 0.5 ms to 10,000 ms for communication flexibility.
- Durable Power Design: Operates on 24 VDC ±10%, with low current consumption (0.12 A or less).
- Compact and Robust: Engineered for harsh industrial settings with vibration and temperature resistance.
- Compatibility: Compliant with IEEE 802.3 standards and EtherNet/IP Version A9.
- Extended Cable Distance: Up to 100 m between unit and Ethernet switch.
- Easy Integration: Directly connects to Keyence laser scanners and control systems.
