CC-PAIH02 | Honeywell 16-Channel HART Analog Input Module 4–20 mA / 0–5 V
- Regular price
- $2,889.00
- Sale price
- $2,889.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: CC-PAIH02
Description

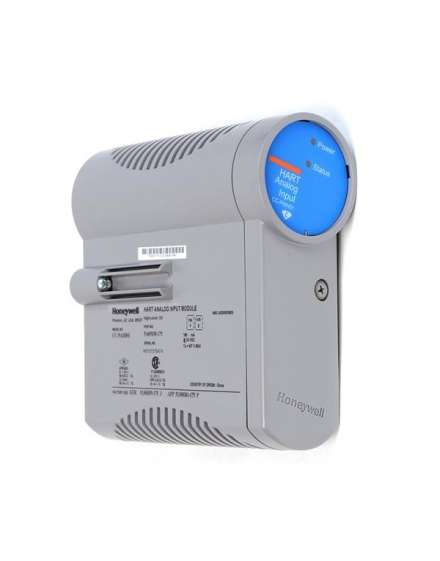

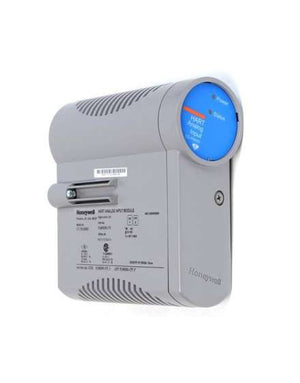

The Honeywell CC-PAIH02 is a 16-channel HART Analog Input Module used in Experion PKS and C300 process control systems. It accepts both differential and single-ended analog signals, supporting 4–20 mA, 1–5 V, and 0–5 V inputs with full HART communication capability. The module features onboard diagnostics, open-wire detection, and redundant configuration options, providing accurate and reliable process variable acquisition for industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | PLCs / Machine Control |
| Part Number | CC-PAIH02 |
| Subcategory | PLC Module / Rack |
| Function | HART Analog Input Module |
| Channels | 16 differential or single-ended inputs |
| Input Signal Types | 4–20 mA, 1–5 V, 0–5 V |
| Signal Isolation | Channel-to-system and channel-to-channel isolation |
| Resolution | 12–16 bit (typical, system-dependent) |
| Input Impedance | ≥ 250 Ω (current) / ≥ 100 kΩ (voltage) |
| Loop Power | Non-incendive field power available |
| Power Consumption | 60 W maximum |
| Communication Protocol | HART (multivariable capable) |
| Diagnostics | Open-wire, bad PV, and self-diagnostics |
| Redundancy | Supported (dual module configuration) |
| LEDs | Power (green) and Status (red/yellow) indicators |
| Protection Rating | G3 environmental coating |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Humidity | 5 % to 95 % RH non-condensing |
| Mounting | I/O rack / carrier backplane |
| Compliance | CE, UL, CSA, RoHS |
| Weight | 1.20 lb (0.54 kg) |
Information About CC-PAIH02
The CC-PAIH02 belongs to Honeywell’s C300 Process Manager I/O subsystem, designed for use in high-integrity distributed control systems. It interfaces with field transmitters and sensors, converting analog current or voltage inputs into digital values for use by the controller. The module supports up to 16 isolated channels, each HART-enabled for communication with smart transmitters and multivariable instruments. With its G3-rated high-level circuit protection, onboard self-diagnostics, and redundant I/O link support, it provides a secure and maintainable analog input solution for process industries such as oil & gas, refining, and chemical manufacturing.
Key Features:
- 16 Analog Input Channels: Accepts up to 16 independent differential or single-ended analog signals.
- HART-Enabled: Fully compatible with HART field transmitters, supporting secondary and diagnostic variable retrieval.
- Multiple Input Ranges: Handles 4–20 mA, 1–5 V, or 0–5 V signal types for flexible instrumentation.
- High Accuracy & Resolution: Provides stable and precise signal conversion for critical control loops.
- Comprehensive Diagnostics: Features open-wire detection, bad PV identification, and continuous self-testing.
- Redundancy Support: Can be configured in redundant pairs for fault tolerance and continuous operation.
- Non-Incendive Power Supply: Supplies intrinsically safe field power to compatible transmitters in hazardous areas.
- Fast Loop Scan: High-speed data acquisition improves control responsiveness for multivariable devices.
- LED Indicators: Front-panel Power and Status LEDs give immediate visual feedback of operating condition.
- Rugged Design: G3-coated circuitry ensures resistance to harsh industrial atmospheres and electrical noise.
The CC-PAIH02 delivers the performance, safety, and reliability required for modern distributed process control environments.
