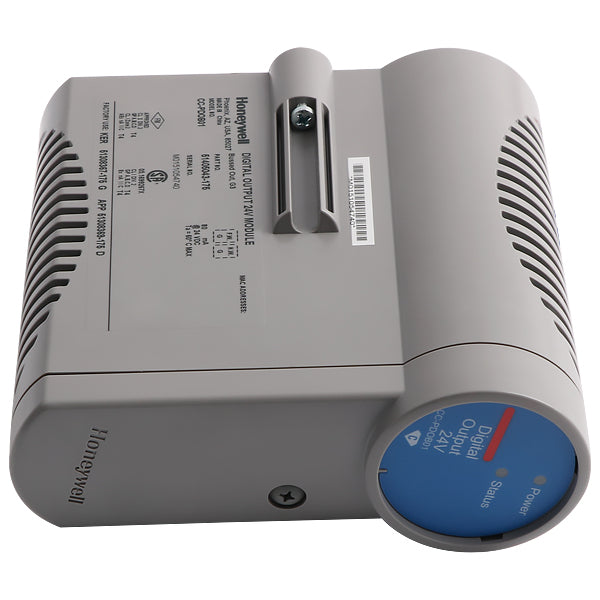

CC-PDOB01 | Honeywell Digital Output Module 32-Channel 24 VDC 80 mA
- Regular price
- $1,517.00
- Sale price
- $1,517.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CC-PDOB01
Description
The Honeywell CC-PDOB01 is a 32-channel digital output (DO) module designed for use with the Experion Process Knowledge System (PKS). Operating at 24 VDC with 80 mA per channel, it features field isolation, bus common return, and sourcing outputs, ensuring reliable control and protection in industrial automation and process systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Process Control Modules |
| Part Number | CC-PDOB01 |
| Subcategory | Digital Output Modules |
| Type | Field-isolated, sourcing DO module |
| System Compatibility | Honeywell Experion PKS / C200 / C300 platforms |
| Number of Channels | 32 sourcing outputs |
| Nominal Voltage | 24 VDC |
| Output Current | 80 mA per channel |
| Isolation | Field-isolated, bused common return |
| Output Type | Sourcing (DO24V) |
| Power Dissipation | Low, optimized for distributed control systems |
| Output Protection | Overcurrent and short-circuit protection |
| Field Power Supply | 24 VDC external supply required |
| Signal Type | Digital, 0/1 logic output |
| Connection Method | Terminal block or field wiring assembly |
| Status Indication | Channel-specific LEDs for diagnostics |
| Operating Temperature | 0…60°C (32…140°F) |
| Storage Temperature | -40…+85°C (-40…+185°F) |
| Relative Humidity | 5–95%, non-condensing |
| Enclosure Type | DIN rail or chassis-mounted in control cabinet |
| Compliance | CE, UL, and CSA certified |
| Typical Applications | Process automation, machine control, DCS output interface |
| Weight | 1.06 lbs (approx. 0.48 kg) |
Information About CC-PDOB01
The CC-PDOB01 is part of Honeywell’s advanced Experion I/O subsystem, engineered for high-density digital output control in distributed automation systems. It provides 32 individually field-isolated sourcing outputs, each rated for 24 VDC operation at 80 mA. The module is designed with a bused common return architecture, simplifying wiring and ensuring compact installation within process cabinets. Its robust isolation and current protection features guard both field devices and system controllers from electrical faults. Integrated diagnostic LEDs offer real-time channel status monitoring for easier troubleshooting. As a key component of the Experion PKS platform, the CC-PDOB01 enables precise digital actuation of solenoids, relays, and indicator lamps across a wide range of process industries.
Key Features:
- High-Density Output Design: Offers 32 sourcing digital outputs for compact, space-efficient system integration.
- Field-Isolated Channels: Provides electrical isolation between field wiring and control electronics to enhance safety and reduce interference.
- Reliable 24 VDC Operation: Supports stable logic-level control for industrial actuators and indicators.
- Sourcing Output Configuration: Delivers power directly to field devices, minimizing external wiring complexity.
- Integrated Diagnostics: Channel LEDs display active status and fault conditions, simplifying system maintenance.
- Bus Common Return: Simplifies field connections and reduces wiring costs in multi-channel installations.
- Robust Output Protection: Built-in protection against overload and short-circuit conditions ensures long-term reliability.
- Seamless System Integration: Fully compatible with Honeywell Experion PKS DCS, C200, and C300 controllers for unified system control.
- Compact and Durable Construction: Designed for industrial environments, providing high mechanical strength and long service life.
- Industry Compliance: Certified to meet CE, UL, and CSA safety standards for use in critical control applications.
The CC-PDOB01 delivers the reliability and precision required for high-performance digital control within Honeywell Experion automation systems.
