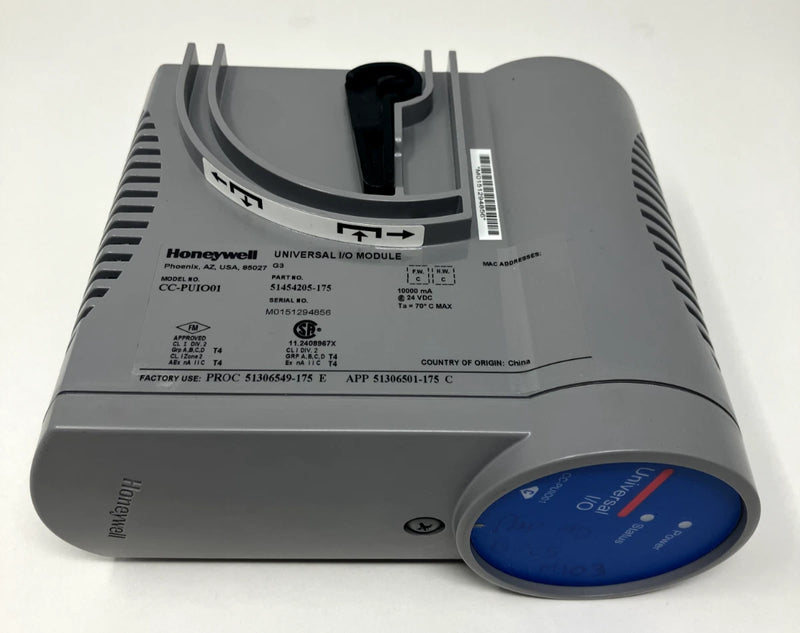

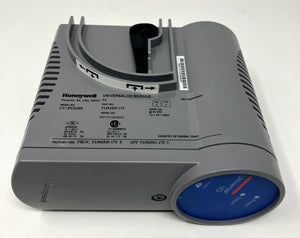

CC-PUIO01 | Honeywell Universal I/O Module with Analog, Digital, and HART Support
- Regular price
- $1,562.00
- Sale price
- $1,562.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CC-PUIO01
Description
The Honeywell CC-PUIO01 is a Universal Input/Output (UIO) module designed for integration into the Experion PKS control system. It supports multiple I/O functions including analog input, analog output, digital input, and digital output, making it ideal for complex industrial automation tasks. Built for high reliability, it provides accurate measurement, control, and communication with field devices in demanding process environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | PLCs/Machine Control |
| Part Number | CC-PUIO01 |
| Subcategory | Universal Input/Output Module |
| System Compatibility | Honeywell Experion PKS / C300 |
| Analog Input Channels | 1–8 (±10V, 2–10V, 4–20mA) |
| Analog Output Channels | 1–8 (±10V, 2–10V, 4–20mA) |
| Digital Input Channels | 1–8 (0–5V) |
| Digital Output Channels | 1–8 (0–24V) |
| Pulse Input Channels | Channels 15–18, 0–10kHz |
| Resolution | AI 16-bit, AO 12-bit |
| HART Support | HART 7 on analog I/O |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +125°C |
| Special Features | Open wire detection, safe-state configuration |
| Dimensions | 172.72 × 88.9 × 25.4 mm (6.8 × 3.5 × 1 in) |
| Weight | 0.30 kg |
Information About CC-PUIO01
The CC-PUIO01 is a modular UIO device in Honeywell’s C300 controller ecosystem, offering flexible configuration for industrial control applications. Each channel can be user-defined as analog input, analog output, digital input, digital output, or pulse input, enabling versatile process control. It supports advanced features such as HART 7 protocol, open wire detection, priority I/O scanning, and configurable safe-state behaviors. With its wide temperature tolerance and robust build, it ensures dependable performance in both standard and extreme environmental conditions.
Key Features:
- Multi-Function Channels: Configurable as AI, AO, DI, DO, or pulse input per channel.
- HART 7 Support: Enables communication with smart field devices over analog I/O.
- Wide Voltage Ranges: AI ±10V, 2–10V, 4–20mA; AO ±10V, 2–10V, 4–20mA; DI 0–5V; DO 0–24V.
- High-Resolution Conversion: 16-bit A/D and 12-bit D/A accuracy for precise control.
- Open Wire Detection: Built-in diagnostics to detect wiring faults.
- Fast Scan Mode: Priority I/O scanning for time-sensitive applications.
- Industrial Temperature Range: Operates from -40°C to +85°C module ambient.
- Short-Circuit Protection: Electronic safeguard for output channels.
The CC-PUIO01 delivers the reliability and precision required for advanced process automation in critical control environments.
