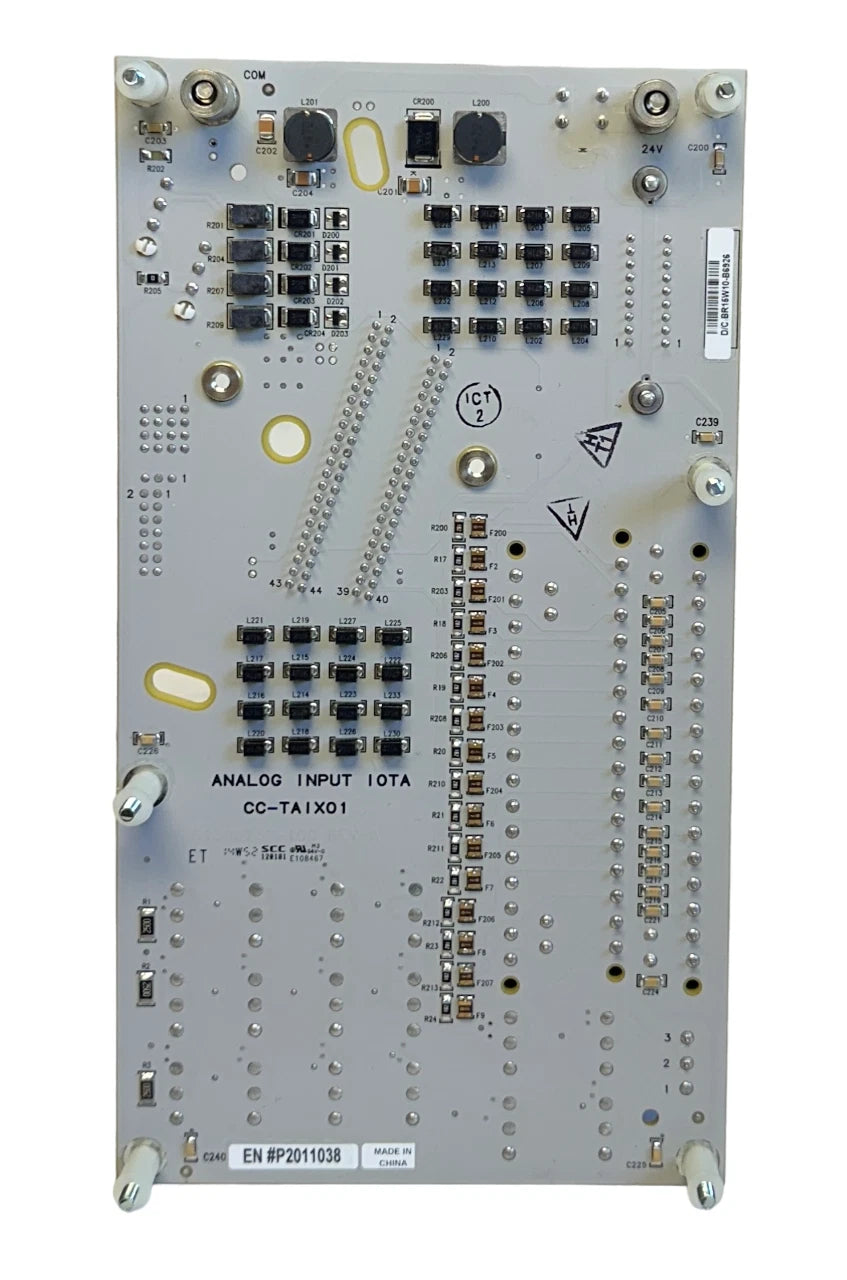

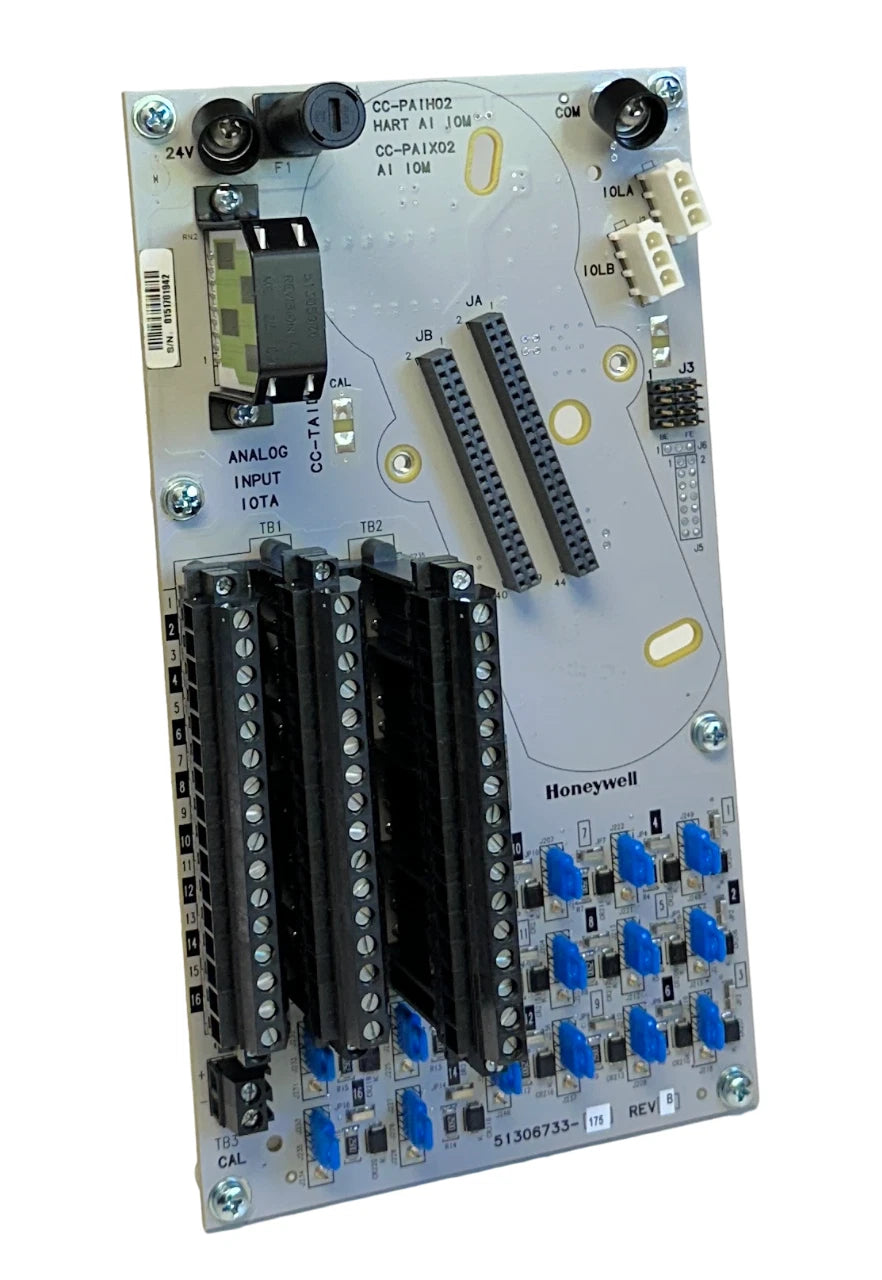

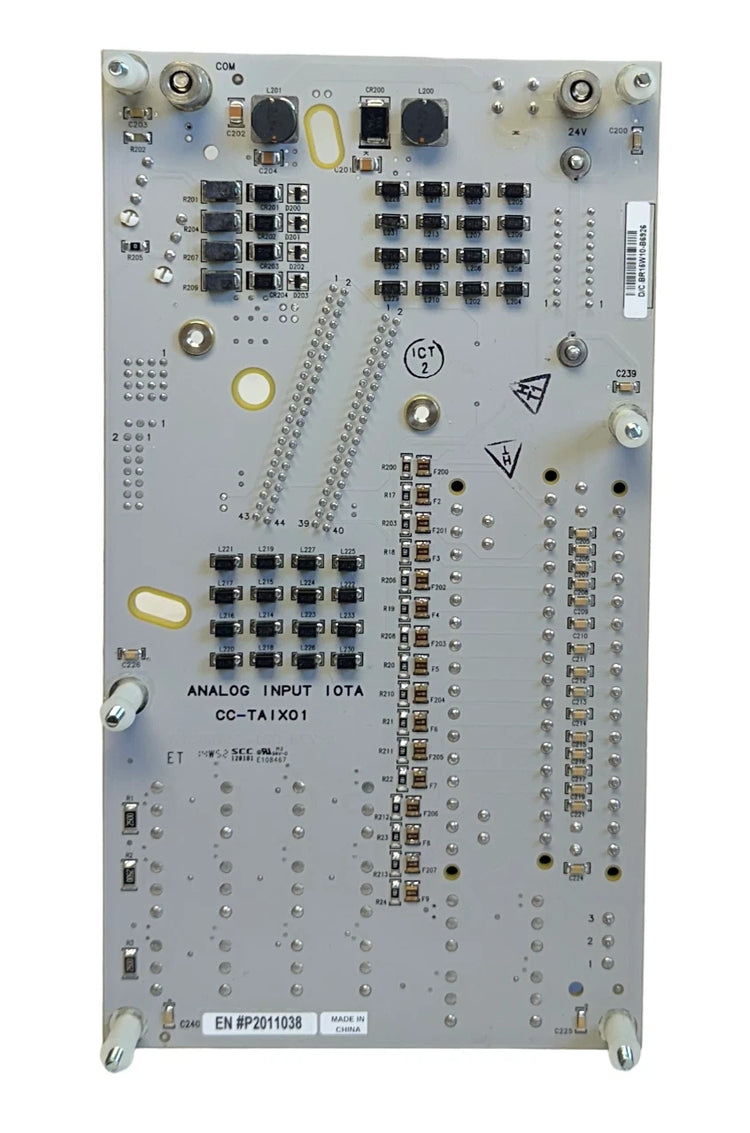

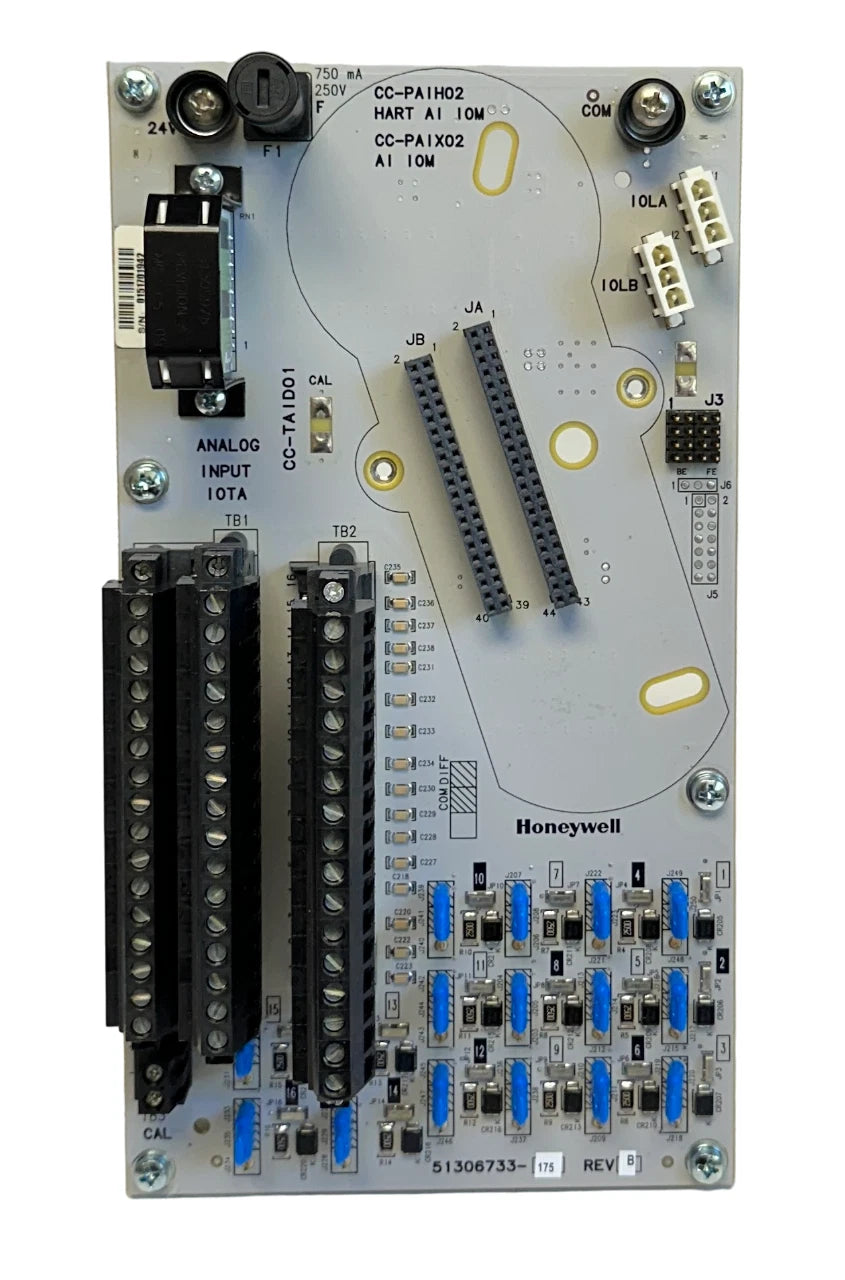

CC-TAID01 | Honeywell 16-Channel Differential Analog Input Module for Experion PKS C-Series
- Regular price
- $2,769.00
- Sale price
- $2,769.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CC-TAID01
Description
The Honeywell CC-TAID01 is a 16-channel differential analog input module designed for the Experion PKS C-Series distributed control system. It captures multiple analog voltage and current signals with high accuracy and converts them into digital data for process monitoring and control. Built for industrial environments, it offers a wide operating temperature range and robust electrical isolation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | PLCs/Machine Control |
| Part Number | CC-TAID01 |
| Subcategory | PLC I/O Module |
| Function | 16-channel differential analog input module |
| Input Ranges | 0–10 V, 4–20 mA, 0–5 V, 1–5 V |
| Input Impedance | High impedance |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Isolation | 500 Vrms |
| Sampling Rate | User-configurable |
| Power Supply | 24 VDC |
| Mounting Type | DIN rail |
| Operating Temperature | -40 °C to +70 °C |
| Humidity Tolerance | 5–95% RH, non-condensing |
| Dimensions | Approx. 127 × 128 × 40 mm |
| Weight | ~0.45 kg (1.0 lb) |
Information About CC-TAID01
The CC-TAID01 is part of Honeywell’s C-Series I/O family, known for its modular design and seamless integration with Experion PKS controllers. It is engineered to handle multiple input types, including voltage and current ranges, while maintaining high-precision measurement. The unit’s galvanic isolation protects both the module and the control system from electrical disturbances. Its DIN-rail mounting and 24 VDC power supply make it well-suited for installation in process control panels across a range of industries.
Key Features:
- 16 Differential Input Channels: Supports multiple analog voltage and current ranges for flexible sensor integration.
- High Resolution: 16-bit conversion ensures precise signal measurement and control feedback.
- Electrical Isolation: 500 Vrms isolation protects connected equipment from electrical noise and faults.
- Wide Operating Range: Functions from -40 °C to +70 °C for demanding industrial environments.
- DIN Rail Mounting: Simplifies installation and maintenance in control cabinets.
- Multiple Signal Types: Accepts 0–10 V, 4–20 mA, 0–5 V, and 1–5 V inputs.
- Robust Environmental Tolerance: Operates in 5–95% relative humidity, non-condensing.
The CC-TAID01 delivers the reliability and precision required for critical process automation and monitoring applications.
