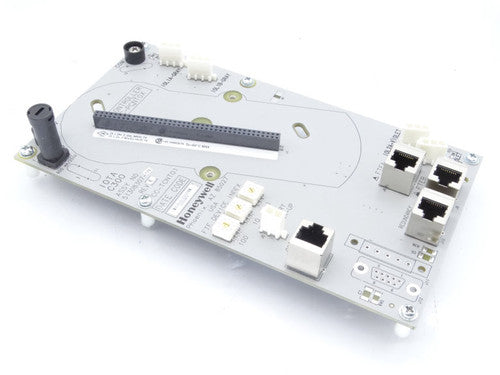

CC-TCNT01 | Honeywell C300 Controller Backplane 24 VDC, 0.311 A

Description

The Honeywell CC-TCNT01 is a C300 Controller IOTA (Input/Output Termination Assembly) designed for the Experion Process Knowledge System (PKS). Operating on 24 VDC, it provides the physical and electrical interface for the C300 controller, supporting high-speed communication, redundant configurations, and deterministic control execution across the Universal Control Network (UCN).

Technical Specifications

Information About CC-TCNT01

The CC-TCNT01 is part of Honeywell’s C300 Series controller platform used in Experion PKS systems for distributed process automation. It serves as the IOTA backplane that provides the connection interface between the C300 processor module and Series C I/O modules. The assembly delivers high-speed deterministic control and supports redundancy for uninterrupted operation in mission-critical applications. Through Fault Tolerant Ethernet (FTE) and ControlNet communication, the CC-TCNT01 ensures robust data exchange across the control network. Designed for easy installation on a Universal Control Network (UCN) chassis, it incorporates built-in diagnostics for monitoring system health and performance. Compact and energy-efficient, it offers 24 VDC power operation and provides consistent, reliable control in both standard and redundant system configurations.

Key Features:

• High-Speed Control Architecture: Supports rapid data exchange and deterministic control for stable process automation.
• Redundant Operation Capability: Enables paired C300 controller configurations for maximum system uptime and fault tolerance.
• Integrated Diagnostics: Continuously monitors system performance, communication health, and hardware status for predictive maintenance.
• FTE Communication Support: Provides secure, fault-tolerant Ethernet networking between controllers and operator stations.
• Compact IOTA Design: Streamlines controller-to-I/O wiring and simplifies installation in distributed control cabinets.
• Flexible Mounting: Designed for Universal Control Network (UCN) chassis configurations for scalable deployment.
• Low Power Consumption: Operates at 24 VDC with 0.311 A current draw for energy-efficient system performance.
• Robust Environmental Performance: Operates in temperatures from 0°C to +60°C, suitable for industrial environments.
• Real-Time I/O Integration: Works seamlessly with Series C I/O modules for high-speed data processing.
• Honeywell Experion Compatibility: Fully integrated with Honeywell’s Experion PKS for unified control and monitoring.

The CC-TCNT01 delivers the reliability and precision required for high-performance process control and seamless integration within Honeywell Experion automation systems.
