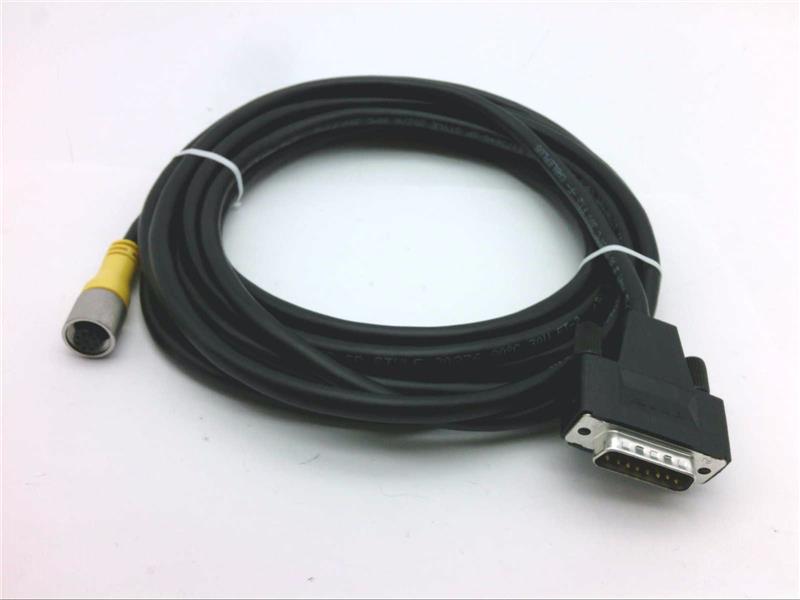

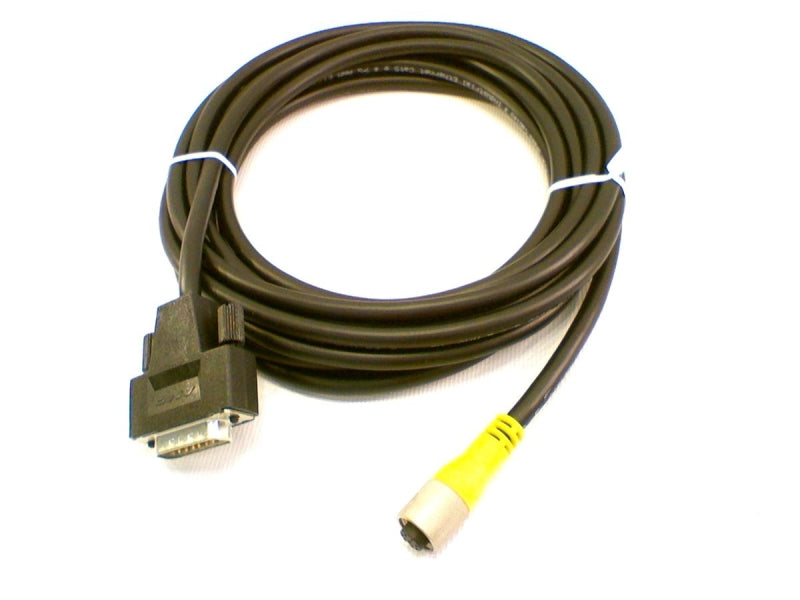

CCB-84901-0902-05 | Cognex I/O Module Cable
- Regular price
- $104.00
- Sale price
- $104.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CCB-84901-0902-05
Description
The CCB-84901-0902-05 is a Cognex I/O Module Cable, specifically designed to connect Cognex vision systems with I/O modules. It ensures stable and reliable signal transmission, facilitating seamless integration and communication within automated inspection setups. This cable is essential for maintaining system efficiency and accuracy.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Cognex |
| Category | Camera & Vision |
| Part Number | CCB-84901-0902-05 |
| Subcategory | Cable for Camera |
| Product Type | I/O Module Cable |
| Cable Length | 5 meters (16.4 feet) |
| Cable Type | Shielded multi-conductor cable |
| Connector Type | DB15 male to open end |
| Number of Conductors | 15 conductors |
| Wire Gauge | 26 AWG |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Temperature Rating | -20°C to +80°C (-4°F to +176°F) |
Information About CCB-84901-0902-05
The Cognex CCB-84901-0902-05 I/O Module Cable is designed for connecting camera systems to I/O modules, ensuring reliable communication and data transfer in industrial automation applications. This high-quality cable falls under the Camera & Vision category, specifically in the subcategory of cables for cameras, and is tailored for use with Cognex vision systems.
The cable measures 5 meters (16.4 feet) in length, offering ample reach for connecting devices situated at varying distances within a setup. Its shielded multi-conductor design ensures minimal interference and optimal signal integrity, which is crucial for maintaining accurate and stable communication between the camera and connected modules.
Featuring a DB15 male connector on one end and an open end on the other, the cable is versatile and can be configured to suit different wiring needs. The DB15 male connector is a standard interface for many vision systems and provides a reliable connection point for the cable, while the open end allows for flexible customization and termination according to specific installation requirements.
The cable comprises 15 conductors, each with a wire gauge of 26 AWG. This configuration is designed to handle a range of signal types and ensure efficient data transfer. The 26 AWG wire gauge is suitable for high-frequency applications and helps in maintaining signal quality over the length of the cable.
Insulated with PVC (Polyvinyl Chloride), the cable offers robust protection against environmental factors. PVC insulation is known for its durability and resistance to abrasion, chemicals, and moisture, which helps in maintaining the integrity of the cable under various conditions. This insulation material ensures that the cable performs reliably even in demanding industrial environments.
The temperature rating of the CCB-84901-0902-05 cable ranges from -20°C to +80°C (-4°F to +176°F), making it suitable for use in a wide range of operating temperatures. This broad temperature range allows the cable to function effectively in environments with significant temperature fluctuations, ensuring consistent performance and longevity.
In summary, the Cognex CCB-84901-0902-05 I/O Module Cable is a well-engineered solution for establishing reliable connections between vision systems and I/O modules. With its 5-meter length, shielded multi-conductor design, DB15 male connector, and open end configuration, it provides flexibility and reliability in industrial automation setups. The cable's 26 AWG conductors, PVC insulation, and extensive temperature rating further enhance its durability and performance, making it a dependable choice for demanding applications.
Manufacturer information
Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
