CCM-VZ-HON | Honeywell Verizon LTE Cellular Communication Module for CLSS Gateway
- Regular price
- $1,244.00
- Sale price
- $1,244.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: CCM-VZ-HON
Description

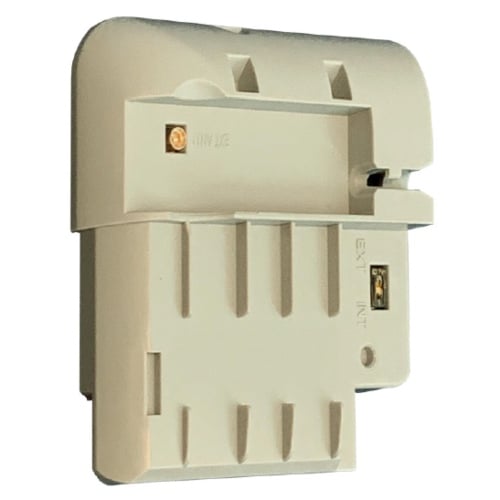

The Honeywell CCM-VZ-HON is a Verizon LTE cellular communication module designed for integration with Honeywell CLSS Gateways. It provides secure, high-speed wireless connectivity for fire and life safety systems using the Verizon LTE network.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Communication Modules |
| Part Number | CCM-VZ-HON |
| Subcategory | LTE Cellular Module |
| Product Type | Cellular communication module for CLSS Gateway |
| Power Source | Powered by CLSS Gateway |
| Operating Voltage | 5 VDC |
| Network Operator | Verizon (North America) |
| Supported Technologies | 4G LTE Cat 1 FDD Bands 2, 4, 13 |
| Antennas | Primary (external) and internal receive diversity |
| SIM Type | 2FF Mini SIM |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 1%–93% RH, non-condensing |
| Compliance | RoHS certified |
| Dimensions | 2.9" L × 2.8" W × 0.7" H (73 × 72 × 17 mm) |
| Weight | 1.6 oz (0.2 lbs / 45.36 g) |
| Mounting | Internal to CLSS Gateway enclosure |
| Application | LTE communication for fire system connectivity |
| Production Status | Active |
Information About CCM-VZ-HON
The CCM-VZ-HON is part of Honeywell’s Connected Life Safety Services (CLSS) platform, offering advanced cloud-based communication for fire alarm and monitoring systems. Powered directly by the CLSS Gateway, it supports LTE Category 1 FDD technology for reliable data transmission. The module includes dual integrated antennas—primary and receive diversity—for optimal signal performance. Compact and lightweight, the CCM-VZ-HON operates within a wide environmental range and complies with RoHS standards. It is certified for Verizon’s LTE network in North America, ensuring robust and secure communication for remote supervision and event reporting of Honeywell fire systems.
Key Features:
- Verizon LTE Connectivity: Supports 4G LTE Category 1 FDD Bands 2, 4, and 13 for reliable wireless communication.
- CLSS Integration: Designed for direct connection to the Honeywell CLSS Gateway.
- Dual Antenna Design: Features primary and internal receive diversity antennas for enhanced reception.
- Low Power Operation: Powered via the CLSS Gateway at 5 VDC.
- Compact Size: Measures only 2.9” × 2.8” × 0.7” for easy installation in control enclosures.
- Wide Environmental Range: Operates from 32°F to 120°F (0°C to 49°C), up to 93% non-condensing humidity.
- Compliant and Efficient: RoHS-certified and optimized for low data latency.
- Carrier Certified: Approved for Verizon LTE network operation in North America.
The CCM-VZ-HON delivers the reliability and precision required for secure LTE communication in Honeywell’s cloud-connected fire and life safety systems.
