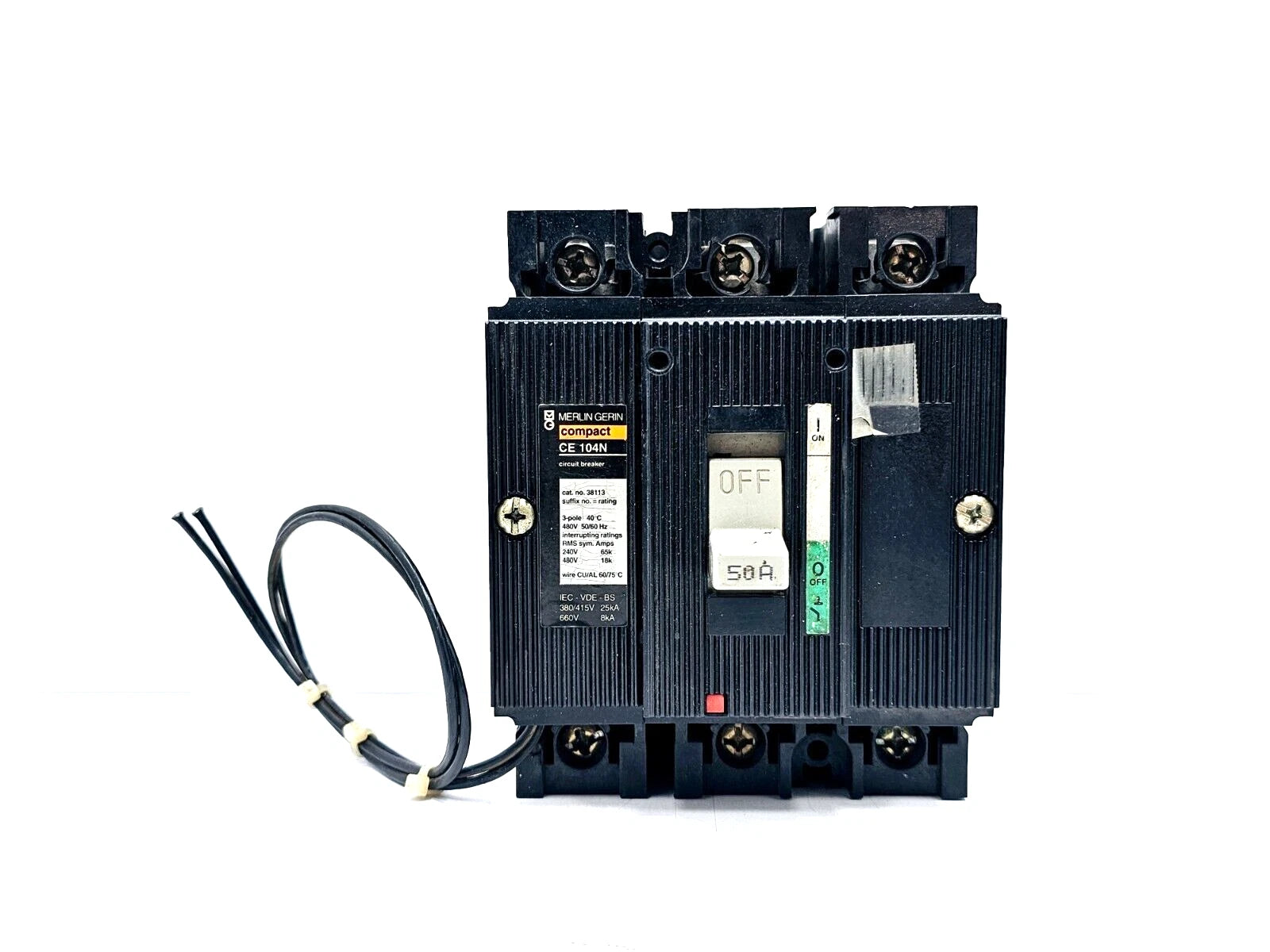

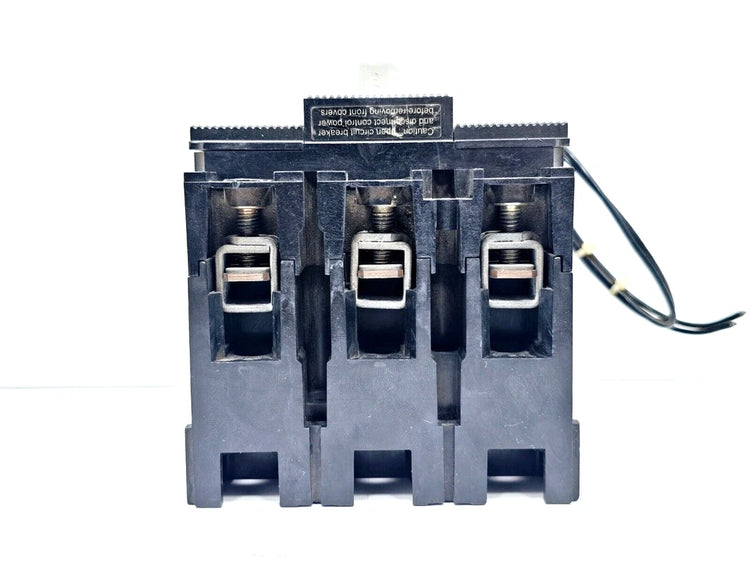

CE104N | Merlin Gerin 3-Pole 100A 480VAC Molded Case Circuit Breaker, Bolt-On, 18kA
- Regular price
- $405.00
- Sale price
- $405.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CE104N
Description
The Merlin Gerin CE104N is a three-pole molded case circuit breaker designed for reliable overcurrent protection in low-voltage power distribution systems. Rated at 100 A and 480 VAC, it provides thermal-magnetic protection with long-time and instantaneous trip functions. This breaker is suitable for commercial and industrial electrical panels requiring bolt-on mounting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Merlin Gerin |
| Category | Circuit Protection |
| Part Number | CE104N |
| Subcategory | Molded Case Circuit Breaker |
| Current Rating | 100 A |
| Number of Poles | 3 |
| Voltage Rating | 480 VAC |
| Trip Functions | LI – Long-Time and Instantaneous |
| Protection Type | Thermal Magnetic |
| Interrupting Rating (AIC) | 18 kA @ 480 VAC |
| Mounting Type | Bolt-On |
| Current Type | AC |
| Color | Black |
| Weight |
Approximately 3.18 kg |
Information About CE104N
The CE104N is a molded case circuit breaker from the Merlin Gerin Compact series, developed for dependable circuit protection in distribution applications. It features a robust thermal-magnetic trip unit that safeguards equipment against overloads and short circuits. The breaker is designed for bolt-on installation, ensuring secure electrical and mechanical connection in panelboards. Its compatibility with 480 VAC systems makes it suitable for a wide range of industrial and commercial power infrastructures.
Key Features:
-
Thermal-Magnetic Protection: Provides long-time and instantaneous trip response for overload and short-circuit conditions.
-
Three-Pole Configuration: Supports three-phase electrical distribution systems.
-
100 Amp Current Rating: Designed for medium-load circuit protection applications.
-
480 VAC Voltage Rating: Suitable for industrial and commercial power systems.
-
18 kA Interrupting Capacity: Ensures safe interruption of fault currents at rated voltage.
-
Bolt-On Mounting Style: Allows secure and stable installation in electrical panels.
The CE104N delivers the reliability and precision required for safe and consistent circuit protection in industrial and commercial power distribution systems.
