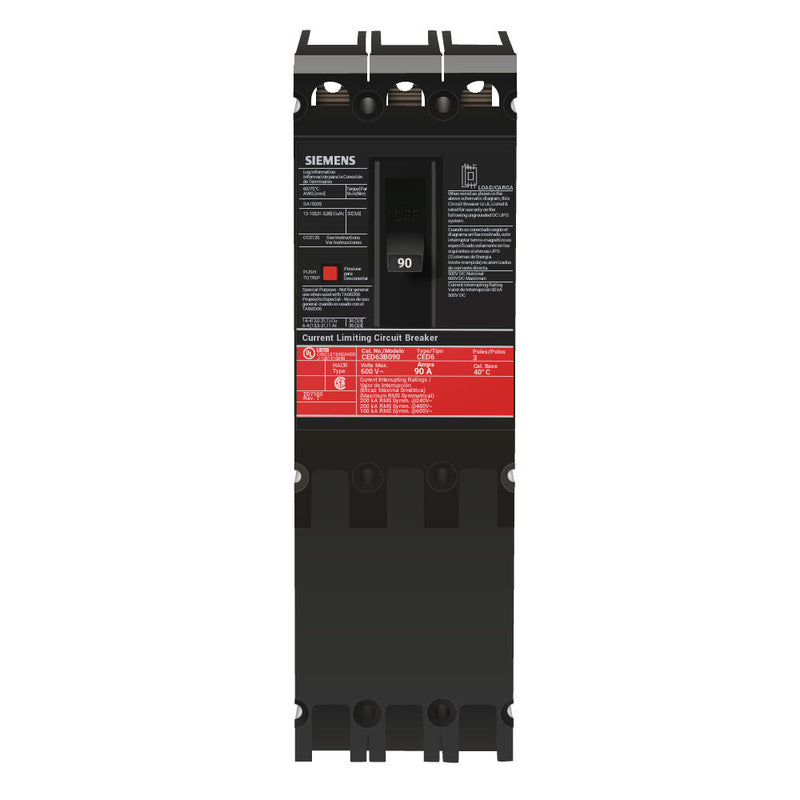

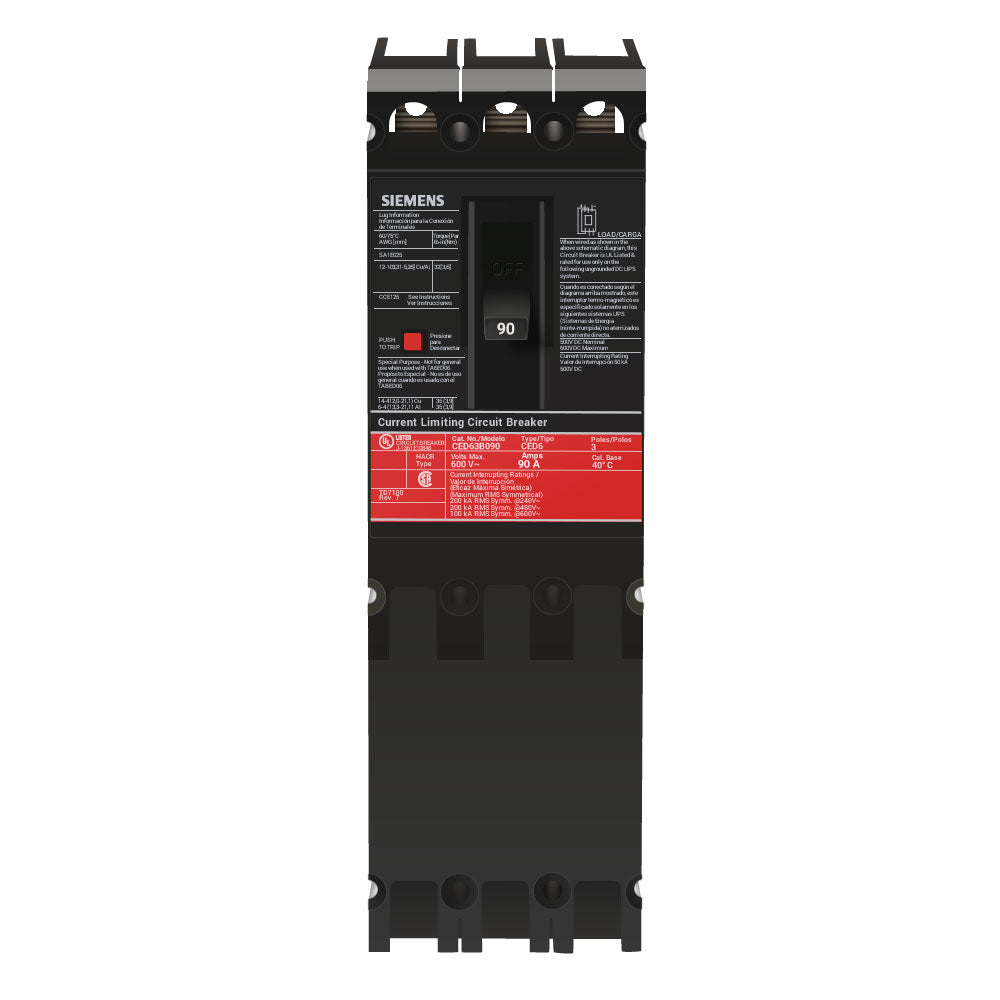

CED63B090 | Siemens 3-Pole 90A 600V Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $994.00
- Sale price
- $994.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CED63B090
Description
The Siemens CED63B090 is a 3-pole thermal magnetic molded case circuit breaker engineered for dependable overcurrent and short-circuit protection in industrial and commercial electrical systems. Rated at 90 amps and 600 volts AC, this breaker provides robust current-limiting performance with an interrupting capacity of up to 200kA at 480V. Its bolt-on connection ensures secure and efficient installation within power distribution panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Electrical Distribution |
| Part Number | CED63B090 |
| Subcategory | Circuit Breakers |
| Series | Sentron |
| Frame Type | CED |
| Type | Molded Case, Fuseless Current-Limiting |
| Amperage Rating | 90 A |
| Voltage Rating | 600 VAC |
| Poles | 3 |
| Phase | 3 |
| Interrupting Capacity | 200 kA @ 480V, 100 kA @ 600V |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Connection Type | Bolt-On |
| Terminal Connection | Line and Load Side Lug |
| Wire Size Range | 10 to 4 AWG (Copper/Aluminum) |
| Frequency Rating | 50/60 Hz |
| Temperature Rating | 40 °C |
| Approvals | CSA Certified |
| Country of Origin | Mexico |
| Dimensions (H×W×D) | 9.58 × 3 × 3.92 in |
| Weight | 5.7 lbs (2.6 kg) |
Information About CED63B090
The CED63B090 is part of the Siemens Sentron Series, known for its reliability and high-performance protection in low-voltage power systems. Built with a CED frame, this circuit breaker features LI (Long-Time and Instantaneous) trip functions, delivering precise thermal magnetic protection across three poles. It is compatible with both line and load lug connections and designed for fuseless current limiting, reducing equipment stress during fault conditions. Its 600V operational voltage and 200kA interrupt rating make it suitable for heavy-duty power distribution and industrial applications requiring high interrupting capacity.
Key Features:
- High Interrupting Capacity: Rated at 200kA @ 480V for superior fault protection in demanding environments.
- Three-Pole Design: Provides balanced protection across three phases for 3-phase power systems.
- Thermal Magnetic Trip Unit: Offers LI trip functions for both long-time overload and instantaneous short-circuit protection.
- Bolt-On Connection: Ensures stable, vibration-resistant mounting within power panels.
- Current-Limiting Performance: Fuseless current limiting design reduces arc energy during fault interruption.
- Wide Voltage Range: Operates up to 600 VAC, supporting industrial-grade electrical systems.
- Durable CED Frame Construction: Built to withstand harsh conditions and heavy electrical loads.
- CSA Certified: Complies with recognized safety and performance standards.
The CED63B090 delivers the reliability and precision required for high-capacity electrical protection in modern power distribution systems.
