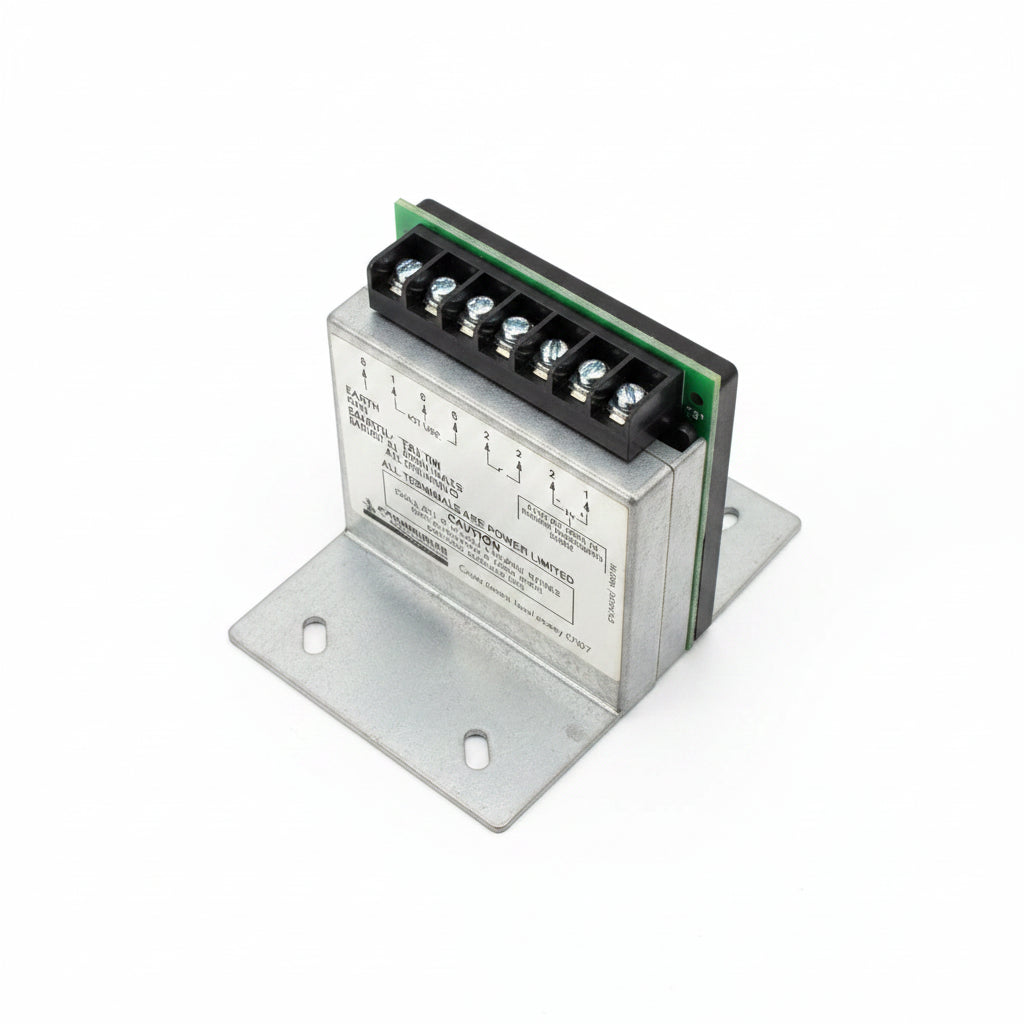

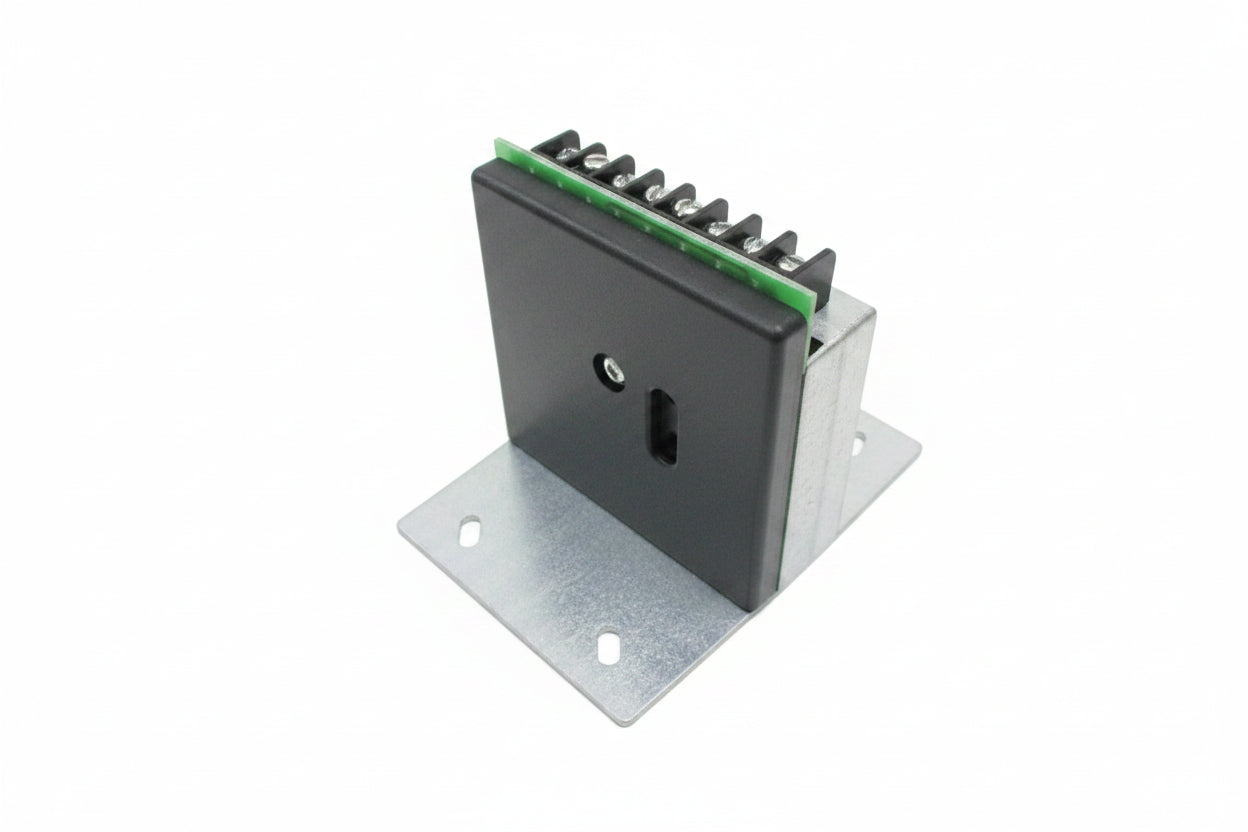

Cerberus Pyrotronics TRI-B6 Intelligent Initiating Interface Module
- Regular price
- $485.00
- Sale price
- $485.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TRI-B6
Description
The Cerberus Pyrotronics TRI-B6 is an intelligent initiating interface module designed to connect dry-contact initiating devices to compatible addressable fire alarm circuits. The TRI-B6 monitors a single normally open or normally closed contact and communicates its status to Cerberus Pyrotronics MXL, XL3, or compatible IXL system circuitry.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cerberus Pyrotronics |
| Category | Fire Alarm Systems |
| Part Number | TRI-B6 |
| Subcategory | Intelligent Interface Modules |
| Series | TRI-B6 Series |
| Product Type | Intelligent Initiating Interface Module |
| Input Configuration | Single Input |
| Contact Compatibility | Normally Open or Normally Closed Dry Contact |
| Addressing Method | Electronic |
| Programming Device | FPI-32 Programmer/Tester |
| Compatible Systems | MXL, XL3, IXL |
| Wiring Terminals | Screw Terminals |
| Wire Size | 18 AWG minimum, 14 AWG maximum |
| Mounting | 3-1/2 in Deep Double-Gang Switch Box |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | Up to 93%, Non-Condensing |
| Listing | UL Listed |
| Weight | 10 oz (0.3 kg) |
Information About TRI-B6
The TRI-B6 is part of the Cerberus Pyrotronics TRI-B6 Series of microcomputer-based intelligent interface modules for addressable fire alarm and security applications. It is compatible with MXL and XL3 circuits alongside IL and ID-60 Series detectors, MSI Series manual stations, and other compatible intelligent modules. The unit uses electronic addressing programmed through the FPI-32 Programmer/Tester, eliminating mechanical DIP switches, jumpers, and rotary address controls. It is designed for installation in a 3-1/2-inch-deep double-gang switch box and uses screw terminals for field wiring to the addressable circuit and monitored contact.
Key Features:
- Single Contact Input: Monitors one normally open or normally closed dry-contact initiating device.
- Intelligent Addressing: Uses an integrated microcomputer to store identification and operating-status information.
- Electronic Programming: Address configuration is performed with the FPI-32 Programmer/Tester without mechanical address switches.
- Addressable Communication: Provides bidirectional communication and supervision between the interface and compatible control panel.
- System Compatibility: Supports compatible Cerberus Pyrotronics MXL, XL3, and IXL addressable system applications.
- Dry-Contact Monitoring: Interfaces direct shorting devices such as fire detection and compatible security contacts with the addressable loop.
- Screw-Terminal Connections: Provides field-accessible terminals for connection to the addressable circuit and monitored wiring.
- UL Listed Design: The TRI-B6 Series intelligent interface modules are UL listed for their specified applications.
The TRI-B6 delivers the reliability and precision required for supervised dry-contact monitoring within compatible addressable fire alarm and security systems.
