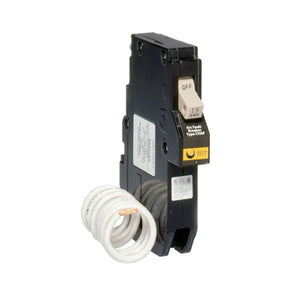

CH115AF | Eaton Molded Case
- Regular price
- $78.00
- Sale price
- $78.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CH115AF
Description
The CH115AF is a type CH circuit breaker manufactured by Eaton as part of the CH Series. It is a 1-pole, 1-phase breaker with a rating of 15 amperes at 120 volts. Featuring a standard interrupting capacity of 10 kiloamperes at 120 volts, it is a plug-in type circuit breaker with Long-Time and Instantaneous trip functions. Additionally, it is classified as a thermal magnetic molded case circuit breaker.
Technical Specifications
|
Part Number |
CH115AF |
|
Manufacturer |
Eaton Cutler-Hammer |
|
Family |
CH Series |
|
Poles |
1 |
|
Amps |
15 |
|
Volts |
120 (assumed based on AIC rating) |
|
Phase |
1 |
|
Category |
Molded Case Circuit Breaker / 1-Pole |
|
Type |
CH |
|
AIC Rating |
10kA@120V |
Information About CH115AF
The CH115AF, manufactured by Eaton, belongs to the CH Series and is classified as a type CH circuit breaker. It is specifically designed as a 1-pole, 1-phase breaker with a rating of 15 amperes at 120 volts. This breaker is engineered to handle a standard interrupting capacity of 10 kiloamperes at 120 volts.
In terms of its design and functionality, the CH115AF is a plug-in type circuit breaker featuring Long-Time and Instantaneous trip functions (LI). It is configured as a thermal magnetic molded case circuit breaker, providing both thermal and magnetic protection mechanisms to safeguard electrical circuits against overcurrent conditions.
The CH115AF circuit breaker is constructed to meet the demanding requirements of electrical systems, offering reliable performance and protection. Its 1-pole configuration makes it suitable for single-phase applications, where it effectively regulates and controls the flow of current to prevent damage to connected equipment and wiring.
