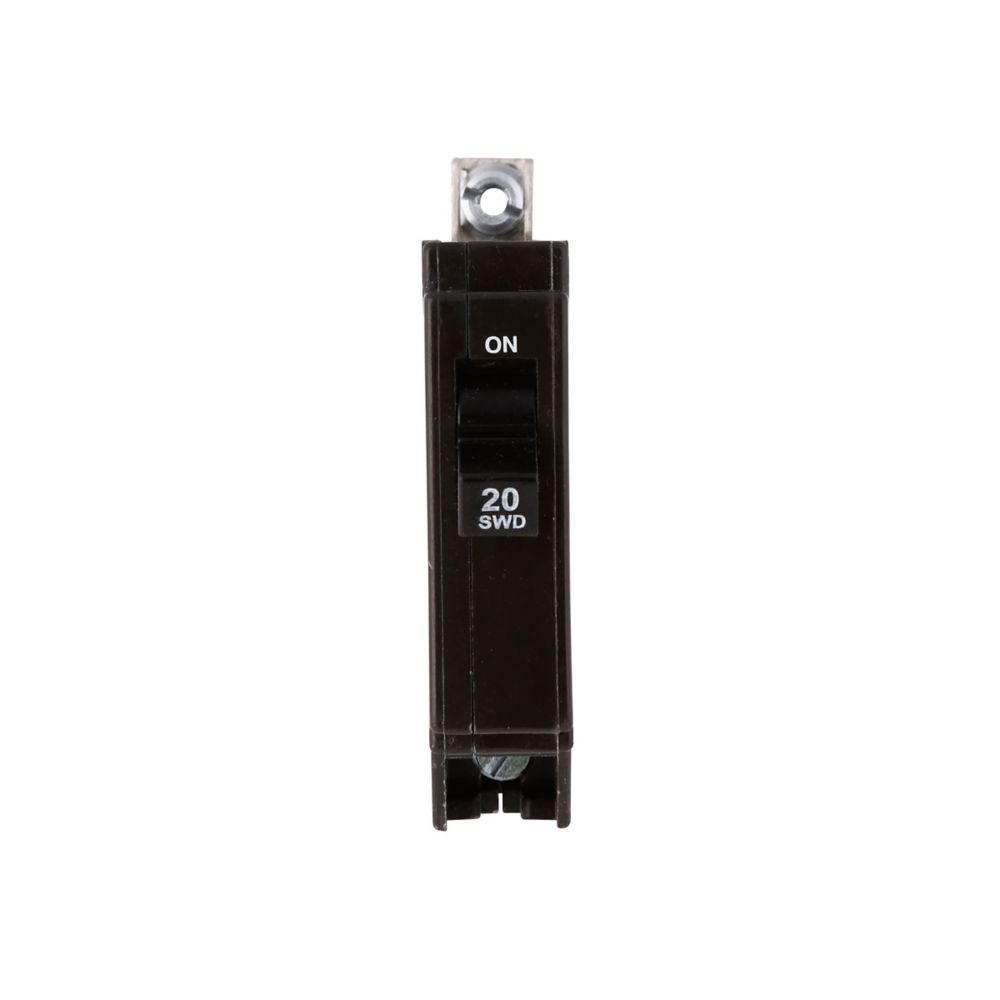

CHB120 | Eaton CH Thermal Magnetic Circuit Breaker
- Regular price
- $50.00
- Sale price
- $50.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CHB120
Description
The CHB120, produced by Eaton, is a CH Thermal Magnetic Circuit Breaker designed to provide reliable circuit protection. It operates as a single-pole breaker with a current rating of 20 A and features a short-circuit interrupting capacity of 10 kAIC. This breaker is suitable for use in both 120V and 240V electrical systems. It incorporates ground fault protection with a sensitivity of 5 mA, ensuring safety in electrical installations. The CHB120 is compatible with #14-8 AWG conductors and is specifically designed for integration with CH Loadcenters.
Technical Specifications
|
Product Name |
Eaton CH thermal magnetic circuit breaker |
|
Catalog Number |
CHB120 |
|
UPC |
782113112350 |
|
Product Length/Depth |
8.3 in |
|
Product Height |
4.4 in |
|
Product Width |
4.5 in |
|
Product Weight |
0.2 lb |
|
Type |
Circuit breaker |
|
Special Features |
5 mA Ground fault |
|
Amperage Rating |
20 A |
|
Voltage Rating |
120/240 V |
|
Circuit Breaker Type |
CHB |
|
Used With |
CH Loadcenters |
|
Interrupt Rating |
10 kAIC |
|
Wire Size |
#14-8 AWG |
|
Number of Poles |
Single-pole |
Information About CHB120
The CHB120, manufactured by Eaton, is a CH thermal magnetic circuit breaker designed for electrical circuit protection. This circuit breaker functions as a ground fault circuit interrupter (GFCI), featuring a ground fault sensitivity of 5 mA. It operates as a single-pole breaker with a current rating of 20 A and a voltage rating of 120/240 V.
With a thermal magnetic mechanism, the CHB120 is capable of interrupting currents up to 10 kAIC (kiloamperes interrupting capacity). It is compatible with wire sizes ranging from #14 to #8 AWG (American Wire Gauge). The CHB120 breaker is part of the CHB series and is primarily used with CH Loadcenters.
Physically, the CHB120 measures 8.3 inches in length/depth, 4.4 inches in height, and 4.5 inches in width. It weighs approximately 0.2 lb. As a single-pole circuit breaker, it is suitable for various residential and commercial applications where reliable circuit protection is essential.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
