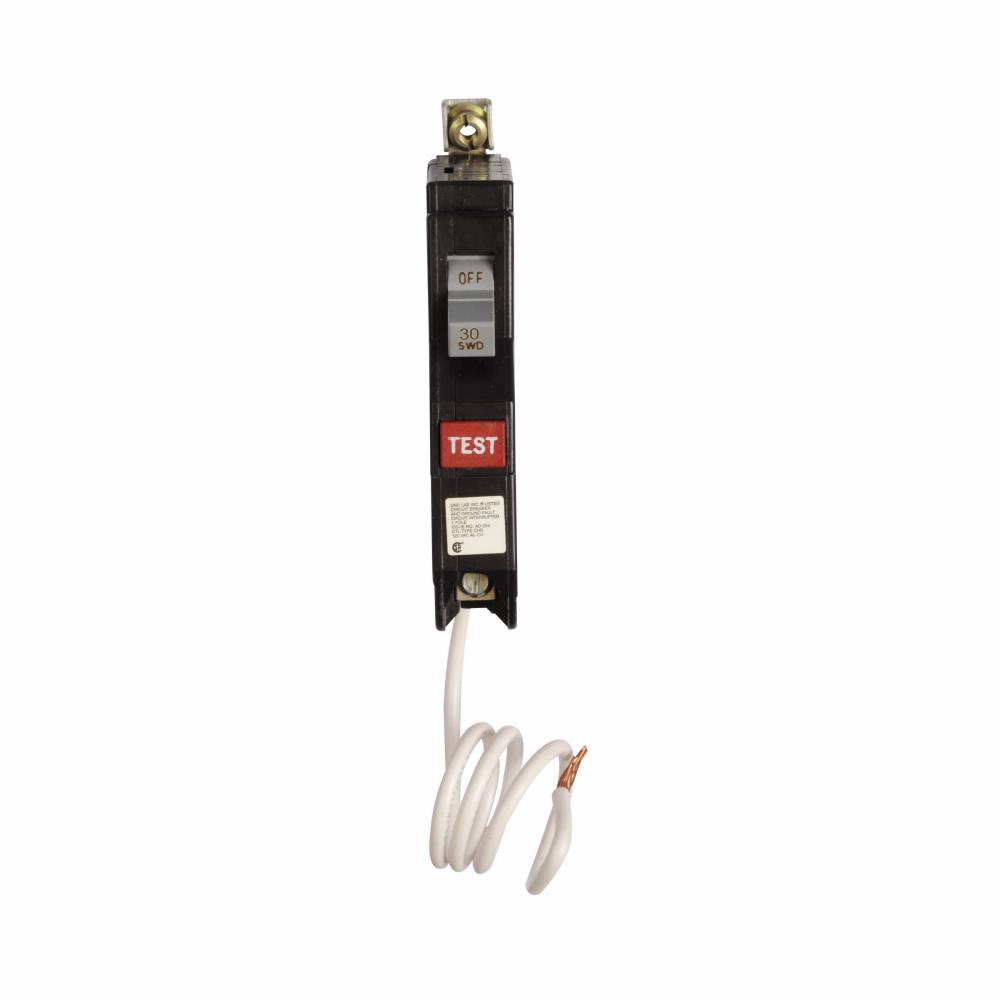

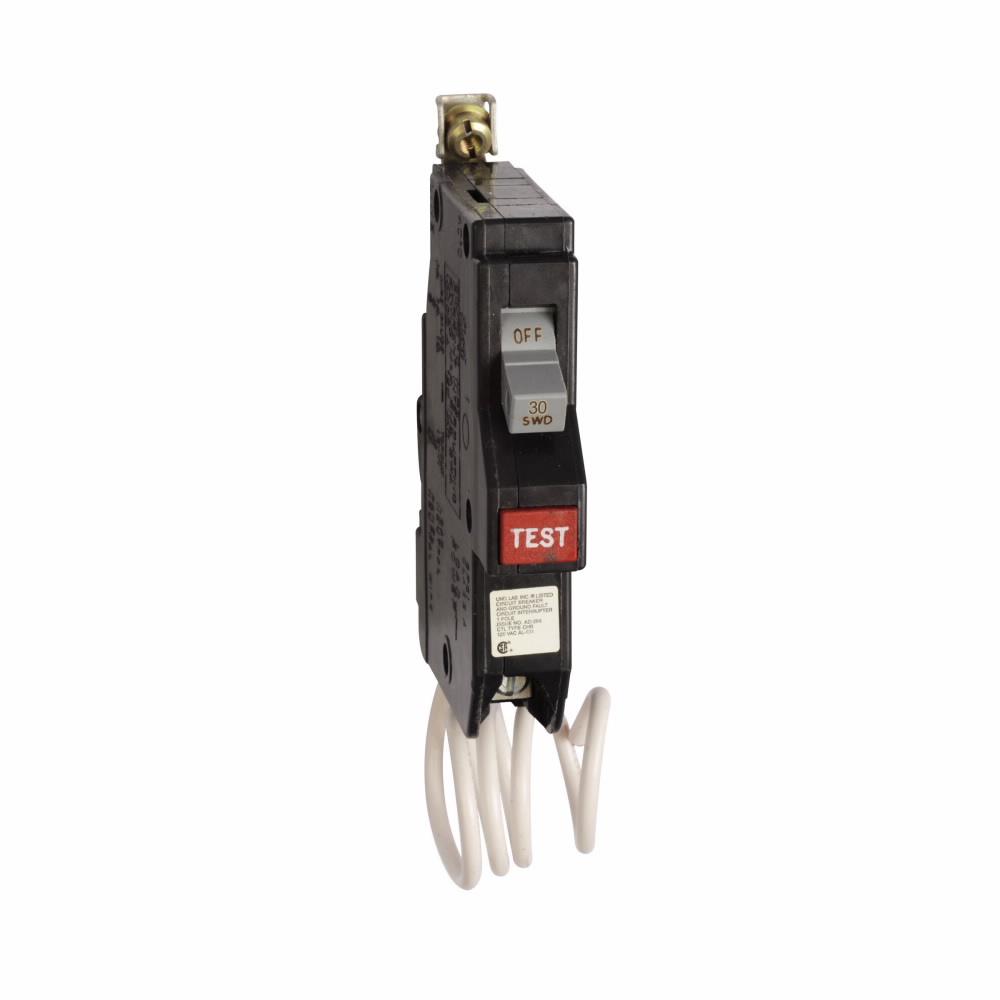

CHB130GF | Eaton 30A 1-Pole 120/240V Ground Fault Circuit Breaker (5 mA, Bolt-On)
- Regular price
- $254.00
- Sale price
- $254.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CHB130GF
Description
The Eaton CHB130GF is a 1-pole ground fault circuit breaker engineered to provide 30-amp overcurrent and personnel protection in residential and commercial electrical systems. Designed for use in CH loadcenters, this breaker features a 5 mA trip sensitivity to detect and interrupt ground faults before damage or injury can occur. With a 10 kAIC interrupting rating and reliable bolt-on mounting, the CHB130GF ensures dependable protection and long-term performance in 120/240V applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | CHB130GF |
| Subcategory | Ground Fault Circuit Breaker |
| Series | CHB |
| Type | Ground Fault (GFI) |
| Number of Poles | 1 |
| Amperage Rating | 30 A |
| Voltage Rating | 120/240 V |
| Trip Sensitivity | 5 mA |
| Interrupting Rating | 10 kAIC |
| Frame Type | ED |
| Trip Type | Thermal-Magnetic |
| Mounting Type | Bolt-On |
| Connection Type | With Pigtail |
| Wire Size | #14–8 AWG Cu/Al |
| Used With | CH Loadcenters |
| Certifications | UL 489 Listed |
| Special Features | Personnel protection with 5 mA ground fault trip |
| Dimensions (H × W × L) | 39 × 4.6 × 14.4 in |
| Weight | 0.26 kg (0.57 lb) |
Information About CHB130GF
The CHB130GF is part of Eaton’s CHB Series, a line of bolt-on circuit breakers known for their durable construction and precise fault detection. This model incorporates ground fault protection technology that responds to current leakage of 5 milliamps, preventing electrical shock and equipment damage. It is designed for easy integration into CH loadcenters and compatible electrical panels. With its UL 489 certification, thermal-magnetic trip unit, and copper-aluminum wire compatibility, the CHB130GF provides high-performance protection in compact form.
Key Features
- Ground Fault Protection: 5 mA trip sensitivity quickly interrupts leakage currents to prevent electrical hazards.
- Thermal-Magnetic Trip Unit: Ensures accurate overload and short-circuit response for reliable circuit control.
- High Interrupt Rating: Rated 10 kAIC at 120/240V for dependable short-circuit performance.
- Bolt-On Mounting: Provides a secure and stable installation within compatible Eaton CH loadcenters.
- UL 489 Certified: Meets stringent safety and performance standards for residential and commercial use.
- Copper/Aluminum Wire Compatibility: Accepts #14–8 AWG conductors for flexible wiring options.
- Compact and Durable Build: Designed for space-efficient panel layouts and long service life.
- Single-Pole Configuration: Ideal for 120V branch circuits requiring both overcurrent and ground fault protection.
The CHB130GF delivers the reliability and precision required for safe and consistent electrical distribution in residential and light commercial systems.
