CHF250 | Eaton CH Thermal Magnetic Circuit Breaker
- Regular price
- $69.00
- Sale price
- $69.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: CHF250
Description

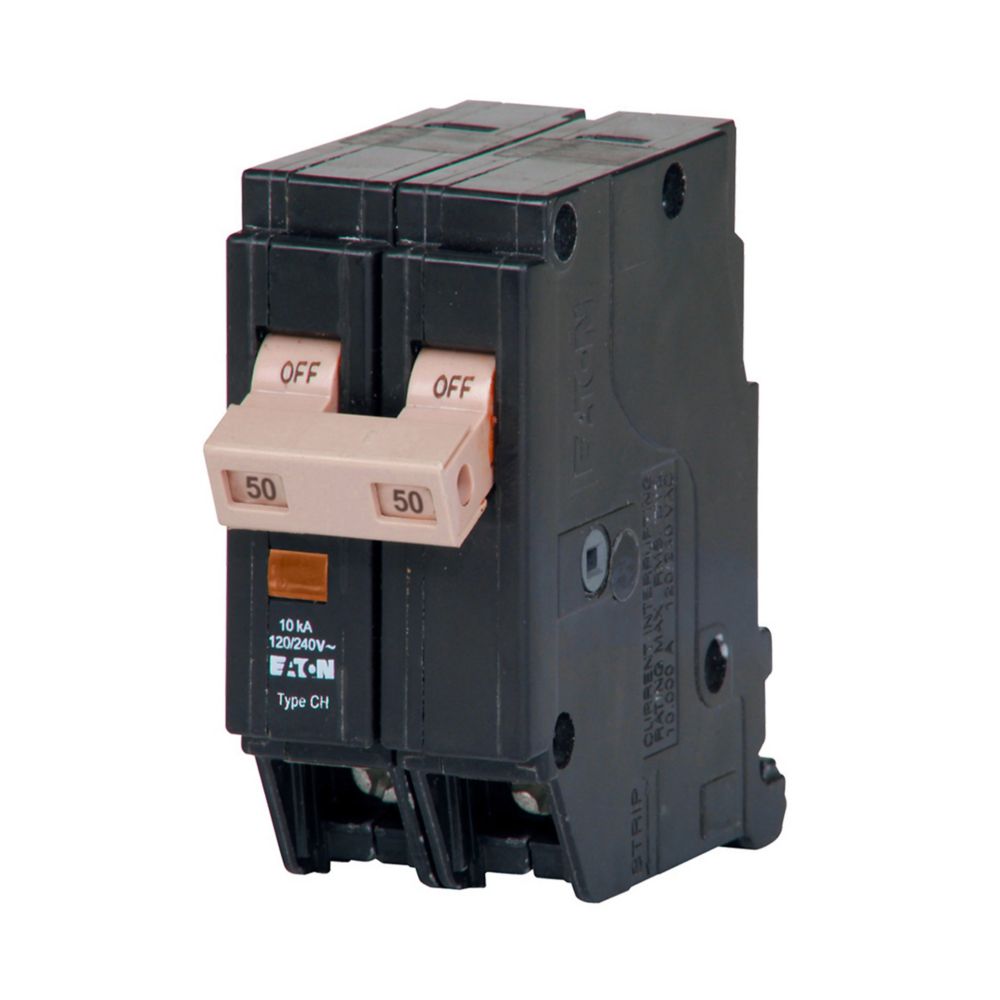

The CHF250 by Eaton is a thermal magnetic circuit breaker designed for reliable overcurrent protection. Classified as a Type CHF 3/4-Inch standard circuit breaker, it operates at a current rating of 50 A with an interrupting capacity of 10 kAIC. This two-pole breaker is suitable for use in electrical systems operating at 120/240V. It features trip flag functionality and common breaker trip capability. The CHF250 accommodates wire sizes ranging from #10 to 1/0 AWG for both copper and aluminum conductors.
Technical Specifications
|
Product Name |
Eaton CH Thermal Magnetic Circuit Breaker |
|
Catalog Number |
CHF250 |
|
UPC |
786685532172 |
|
Product Length/Depth |
1.5 in |
|
Product Height |
2.6 in |
|
Product Width |
0.75 in |
|
Product Weight |
0.28 lb |
|
Type |
Type CHF 3/4-Inch Standard Circuit Breaker |
|
Amperage Rating |
50 A |
|
Voltage Rating |
120/240 V |
|
Trip Type |
Trip Flag |
|
Circuit Breaker Type |
CHF |
|
Used With |
Type CH Loadcenters |
|
Interrupt Rating |
10 kAIC |
|
Main Circuit Breaker |
CHF |
|
Wire Size |
#10-1/0 AWG Cu/Al |
|
Number of Poles |
Two-Pole |
Information About CHF250
The CHF250 is a thermal magnetic circuit breaker manufactured by Eaton. Designed as a Type CHF 3/4-Inch standard circuit breaker, it operates at an amperage rating of 50 A. The breaker is configured as a two-pole unit, capable of handling voltages of 120/240V. With an interrupt rating of 10 kAIC, it ensures reliable protection against overcurrent situations.
Featuring a trip flag mechanism, this circuit breaker employs a common breaker trip function. It accommodates wire sizes ranging from #10-1/0 AWG Cu/Al, offering versatility in installation. The CHF250 breaker is specifically intended for use with Type CH Loadcenters, ensuring compatibility with the designated electrical systems.
In terms of physical dimensions, the CHF250 measures 1.5 inches in length/depth, 2.6 inches in height, and 0.75 inches in width. With a weight of 0.28 lb, it is relatively lightweight and suitable for various applications where space constraints are a consideration.
The CHF250 breaker is engineered to provide reliable thermal magnetic circuit protection, safeguarding electrical systems against potential hazards such as short circuits and overloads. Its design adheres to industry standards, ensuring compliance and reliability in operation.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
