CHFN120AF | Eaton CH AFCI Circuit Breaker
- Regular price
- $95.00
- Sale price
- $95.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CHFN120AF
Description

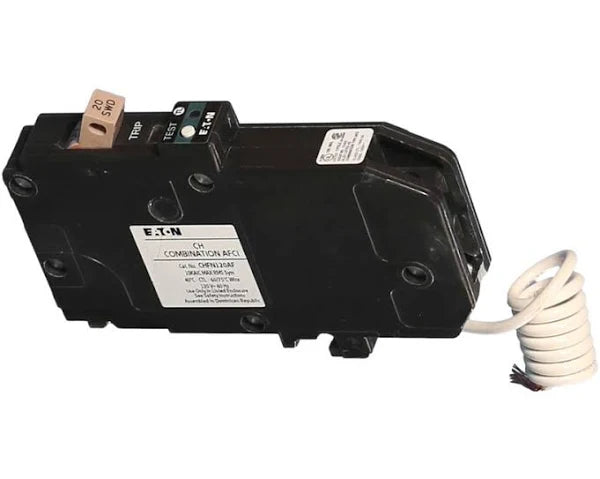

The CHFN120AF is an Eaton CH AFCI circuit breaker designed to provide arc fault circuit interruption (AFCI) capabilities. This CH Combo AFCI Breaker features a 20A rating and is equipped with a pigtail connection. With an interrupting capacity of 10 kAIC, it ensures reliable protection against arc faults in residential electrical circuits.
Technical Specifications
|
PRODUCT NAME |
Eaton CH AFCI circuit breaker |
|
CATALOG NUMBER |
CHFN120AF |
|
UPC |
786689058845 |
|
PRODUCT LENGTH/DEPTH |
4.5 in |
|
PRODUCT HEIGHT |
3.25 in |
|
PRODUCT WIDTH |
0.75 in |
|
PRODUCT WEIGHT |
0.5 lb |
|
CERTIFICATIONS |
UL Listed |
|
TYPE |
AFCI circuit breakers |
|
APPLICATION |
CH Combo AFCI Breaker, 20A, Pigtail, 10kAIC |
|
AMPERAGE RATING |
20 A |
|
CIRCUIT BREAKER TYPE |
CH |
|
INTERRUPT RATING |
10 kAIC |
|
CONNECTION |
Pigtail |
|
NUMBER OF POLES |
Single-pole |
Information About CHFN120AF
The CHFN120AF is an Eaton CH AFCI circuit breaker designed for residential and commercial electrical systems. Featuring a combination AFCI functionality, this breaker provides protection against both series and parallel arcing faults. With a nominal current rating of 20A, it is suitable for circuits with moderate electrical loads.
This circuit breaker is equipped with a pigtail connection for ease of installation and wiring. The pigtail configuration simplifies the connection process by providing a pre-attached lead wire, reducing the need for additional wiring components.
With an interrupt rating of 10 kAIC, the CHFN120AF is capable of safely interrupting fault currents up to 10,000 amps, ensuring reliable protection against overloads and short circuits. This high interrupt rating makes it suitable for use in applications where high fault currents may occur.
The CHFN120AF is part of the Eaton CH series of circuit breakers, known for their reliability and performance. It is designed to meet UL standards for AFCI protection, providing assurance of compliance with safety requirements.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
