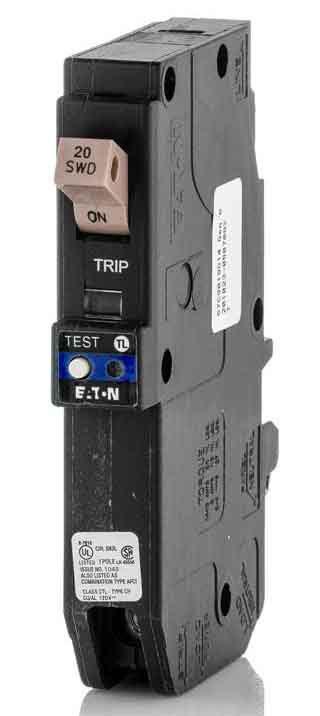

CHFP120A1CS | Eaton CH Arc Fault / Ground Fault Circuit Breaker
- Regular price
- $89.00
- Sale price
- $89.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: CHFP120A1CS
Description
The CHFP120A1CS is an Eaton CH arc fault/ground fault circuit breaker, designed to provide comprehensive protection against electrical faults. This all-in-one device is configured as a single-pole breaker, capable of handling currents up to 20A. With a high interrupt rating of 10 kAIC, it ensures reliable protection against overcurrents and short circuits.
Operating at a voltage of 120V, the CHFP120A1CS is suitable for standard residential and commercial electrical systems. It features plug-on neutral functionality, simplifying installation and enhancing safety. Additionally, it incorporates advanced AFCI/GFCI (Arc Fault Circuit Interrupter/Ground Fault Circuit Interrupter) technology with a 3/4" form factor, providing effective detection and response to both arc faults and ground faults.
Technical Specifications
|
Product Name |
Eaton CH arc fault / ground fault circuit breaker |
|
Catalog Number |
CHFP120A1CS |
|
UPC |
786689166298 |
|
Product Length/Depth |
3.25 in |
|
Product Height |
0.75 in |
|
Product Width |
4.5 in |
|
Product Weight |
0.4 lb |
|
Type |
Arc Fault / Ground Fault Circuit Breakers |
|
Special Features |
All-In-One |
|
Amperage Rating |
20 A |
|
Voltage Rating |
120 V |
|
Circuit Breaker Type |
CH |
|
Interrupt Rating |
10 kAIC |
|
Number of Poles |
Single-pole |
Information About CHFP120A1CS
The CHFP120A1CS by Eaton is an Arc Fault / Ground Fault Circuit Breaker designed to provide comprehensive electrical protection. It features an All-In-One design, consolidating multiple functionalities into a single device. With a nominal current rating of 20A, it offers robust protection against electrical overloads and faults. The interrupt rating of 10 kAIC ensures efficient operation even under high fault conditions, enhancing safety in electrical systems.
As a single-pole breaker, the CHFP120A1CS is suitable for applications where protection is required in individual circuits. It operates at a voltage rating of 120V, making it compatible with standard residential and commercial electrical systems. The inclusion of a plug-on neutral feature simplifies installation, allowing for easier and more secure connection to the neutral bus bar.
One of the standout features of the CHFP120A1CS is its integrated AFCI/GFCI functionality, providing advanced protection against both arc faults and ground faults. This combination enhances the safety of electrical circuits by detecting and interrupting potentially hazardous conditions, such as arcing faults that may lead to electrical fires and ground faults that can cause electric shock.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
