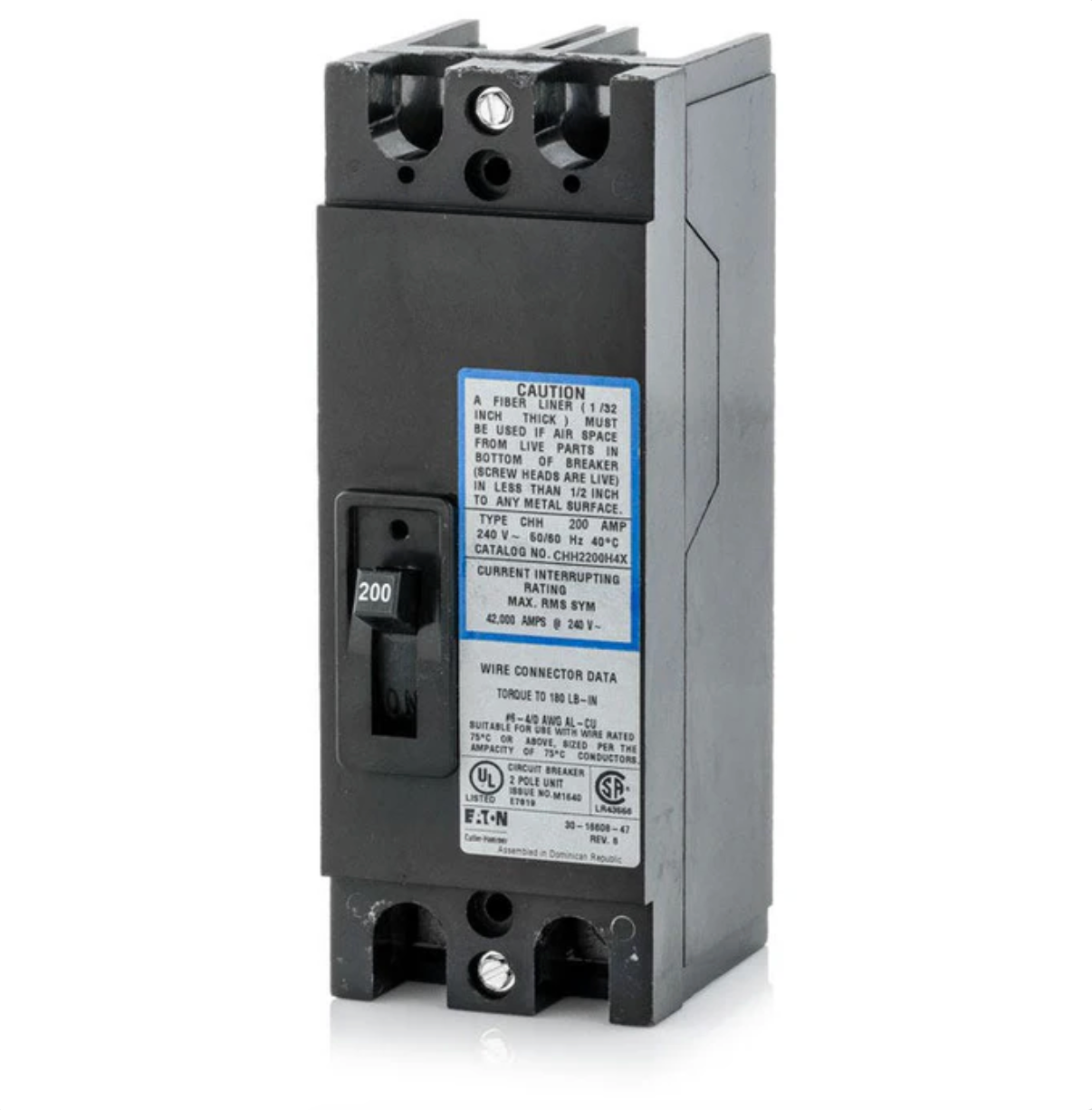

CHH2200H4X | Eaton 200A 2-Pole 240V CHH Series Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,775.00
- Sale price
- $1,775.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CHH2200H4X
Description
The Eaton CHH2200H4X is a 2-pole thermal magnetic molded case circuit breaker designed for reliable overcurrent and short-circuit protection in residential and light commercial applications. Rated at 200 amps and 240 volts, it offers a 42 kAIC interrupting capacity for dependable performance under fault conditions. Its bolt-on connection type and compact CHH frame make it ideal for modular metering stacks and panelboard installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breakers |
| Part Number | CHH2200H4X |
| Subcategory | Molded Case Circuit Breakers |
| Series | CHH |
| Frame Type | CHH Frame |
| Number of Poles | 2 |
| Amperage Rating | 200 A |
| Voltage Rating | 120/240 VAC |
| Interrupting Rating | 42 kAIC @ 240 VAC |
| Trip Type | Thermal Magnetic |
| Trip Function | Long-Time and Instantaneous (LI) |
| Connection Type | Bolt-On |
| Mounting Method | Bolt-On |
| Used With | 37MM and 37SS Modular Metering Stacks |
| Phase | Single Phase |
| Certifications | UL 489 Listed |
| Application | Power Distribution / Main Breaker |
| Warranty | Limited Lifetime |
| Dimensions (HxWxD) | 9 in x 5.5 in x 4.5 in |
| Weight | 4.5 lbs (2.04 kg) |
Information About CHH2200H4X
The CHH2200H4X is part of Eaton’s CHH Series, built for use in modular metering systems such as the 37MM and 37SS three-phase stacks. It features a thermal magnetic trip mechanism that combines long-time and instantaneous protection, ensuring precise fault response. The breaker’s bolt-on mounting design simplifies installation and enhances electrical contact integrity. Compliant with UL 489 standards, the CHH2200H4X provides durable, safe circuit protection in demanding electrical environments.
Key Features:
- Amperage Rating: Handles up to 200 amps for medium-load distribution applications.
- Voltage Rating: Designed for 120/240 VAC systems with stable performance.
- Interrupting Capacity: Provides 42 kAIC at 240 VAC for robust fault interruption.
- Trip Type: Thermal magnetic design with long-time and instantaneous (LI) trip functions.
- Mounting Method: Bolt-on configuration for secure and vibration-resistant installation.
- Frame Type: CHH frame suitable for modular metering stacks and main breaker configurations.
- Certifications: UL 489 compliant for verified safety and performance.
- Construction: Compact molded case ensures durability and efficient heat dissipation.
The CHH2200H4X delivers the reliability and precision required for safe, high-performance power distribution and overload protection.
