CHHT | Eaton CH Series Handle Tie Accessory For Two Single-Pole CH Breakers
- Regular price
- $27.00
- Sale price
- $27.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CHHT
Description

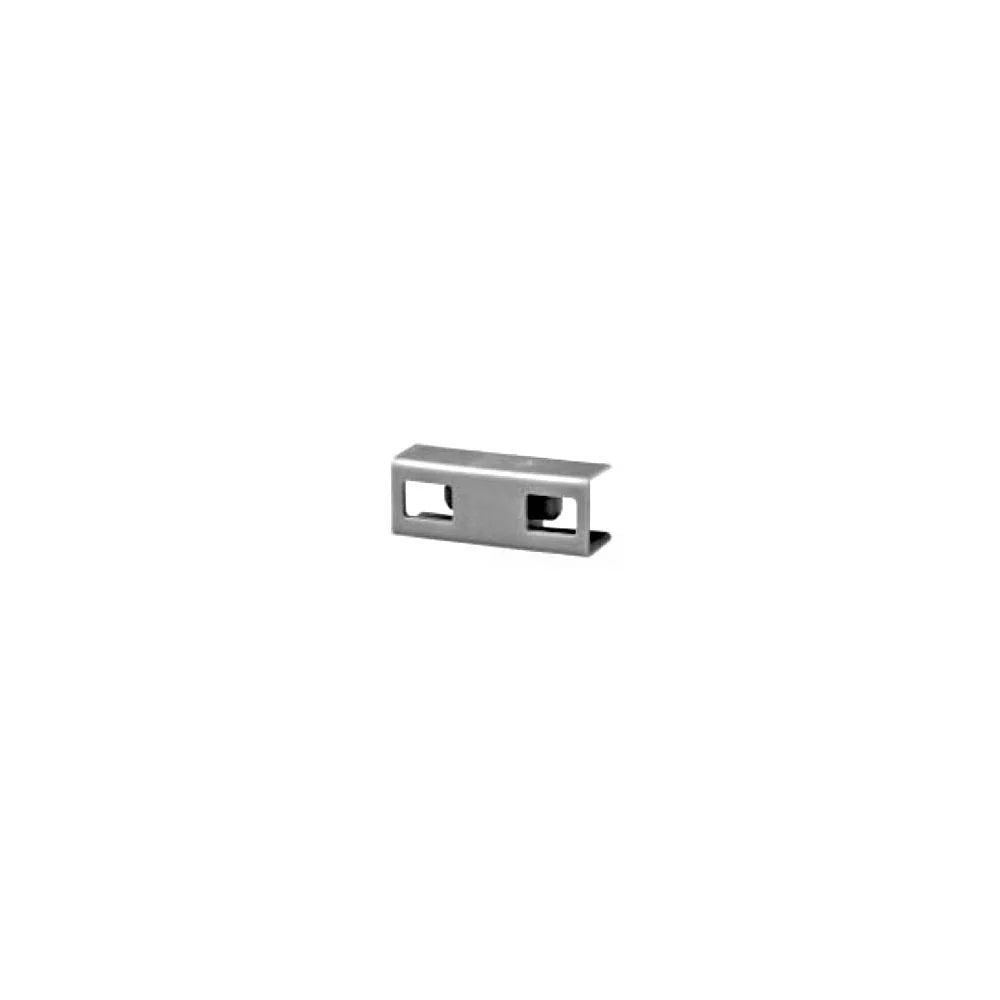

The Eaton CHHT is a handle tie accessory designed to mechanically link two single-pole CH circuit breakers. It is intended for use with Eaton CH 3/4-inch loadcenter breaker systems and supports coordinated breaker operation. The CHHT ensures simultaneous switching of paired breakers in applicable circuit configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker Accessories |
| Part Number | CHHT |
| Subcategory | Handle Tie |
| Product Name | Eaton CH Handle Tie |
| Type | Handle Tie |
| Compatible Breakers | (2) Single-Pole CH Breakers |
| Breaker Width Compatibility | 3/4 in |
| Amperage Rating | 225 A |
| Bus Material | Aluminum |
| Phase | Three-Phase |
| Enclosure Rating | NEMA 1 |
| Interrupt Rating | 10 kAIC |
| Product Length / Depth | 1 in |
| Product Height | 0.5 in |
| Product Width | 0.5 in |
| Product Weight | 0.01 lb |
Information About CHHT
The CHHT is an Eaton-manufactured accessory designed specifically for CH series loadcenter breaker systems. It is used to mechanically couple two single-pole CH breakers, enabling them to operate together as required by certain electrical codes and application requirements. The handle tie supports coordinated switching without altering the electrical characteristics of the breakers. Its compact construction ensures compatibility with standard CH loadcenter layouts and accessories.
Key Features:
- CH Series Compatibility: Designed exclusively for Eaton CH 3/4-inch single-pole circuit breakers.
- Two-Breaker Handle Tie: Mechanically links two breakers to ensure simultaneous operation.
- Compact Accessory Design: Maintains proper spacing and alignment within CH loadcenters.
- 225 Amp Rating: Suitable for use with higher-capacity CH breaker configurations.
- Aluminum Construction: Provides durability and compatibility with CH bus systems.
- Code Compliance Support: Assists in meeting application requirements where common disconnect is required.
The CHHT delivers the reliability and precision required for coordinated breaker operation in Eaton CH series electrical distribution systems.
