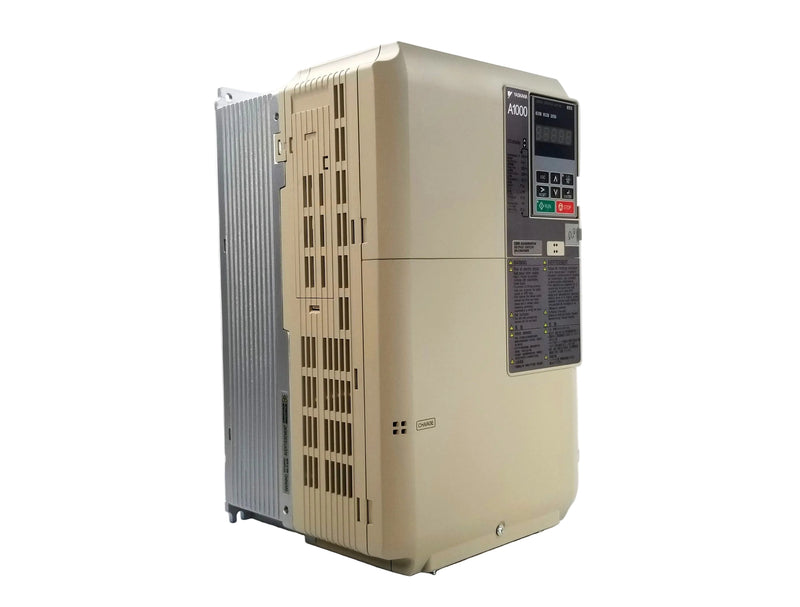

CIMR-AU4A0044FAA | Yaskawa A1000 Variable Frequency Drive 30HP 480VAC NEMA 1
- Regular price
- $4,274.00
- Sale price
- $4,274.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CIMR-AU4A0044FAA
Description
The Yaskawa CIMR-AU4A0044FAA is an enclosed variable frequency drive designed to control three-phase AC motors in industrial applications requiring precise speed and torque regulation. Rated for 400–480 VAC input with up to 30 HP variable torque capability, it provides stable motor control through advanced vector control technologies. The integrated keypad and NEMA 1 enclosure support straightforward operation and safe installation in controlled industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Drives |
| Part Number | CIMR-AU4A0044FAA |
| Subcategory | Variable Frequency Drives |
| Product Series | A1000 |
| Drive Type | AC Variable Frequency Drive |
| Input Phase | Three-Phase |
| Input Voltage | 380–480 VAC |
| Input Frequency | 50/60 Hz |
| Constant Torque Rating | 25 HP |
| Variable Torque Rating | 30 HP |
| Output Voltage | 0–480 VAC |
| Output Frequency | 0–400 Hz |
| Output Current | 39 A (CT) / 44 A (VT) |
| Enclosure Rating | NEMA 1 |
| Protection Rating | IP20 |
| Operator Interface | Keypad Included |
| Dynamic Braking | Included |
| Dimensions (H×W×D) | 15.75 in × 8.66 in × 7.76 in |
| Weight | 24.2 lbs |
Information About CIMR-AU4A0044FAA
The CIMR-AU4A0044FAA is part of Yaskawa’s A1000 series of AC drives, engineered for high-performance motor control across a wide range of industrial machinery. It supports both constant torque and variable torque applications, making it suitable for pumps, fans, conveyors, and process equipment. The drive features built-in dynamic braking capability and optional closed-loop vector control for permanent magnet motors, enhancing stopping performance and control accuracy. Its IP20 protection rating, keypad interface, and compact enclosed design allow reliable integration into standard electrical panels.
Key Features:
- A1000 Series Architecture: Designed for high-performance industrial motor control applications.
- Wide Voltage Range Input: Supports 380–480 VAC three-phase power systems.
- Dual Torque Ratings: Rated for 25 HP constant torque and 30 HP variable torque operation.
- Advanced Motor Control: Supports closed-loop vector control for permanent magnet motors.
- Dynamic Braking Capability: Includes DC injection braking and an internal braking transistor.
- Integrated Operator Keypad: Enables local configuration, monitoring, and diagnostics.
- NEMA 1 Enclosure: Provides protection for indoor industrial panel installations.
The CIMR-AU4A0044FAA delivers the reliability and precision required for variable-speed motor control in demanding industrial drive applications.
