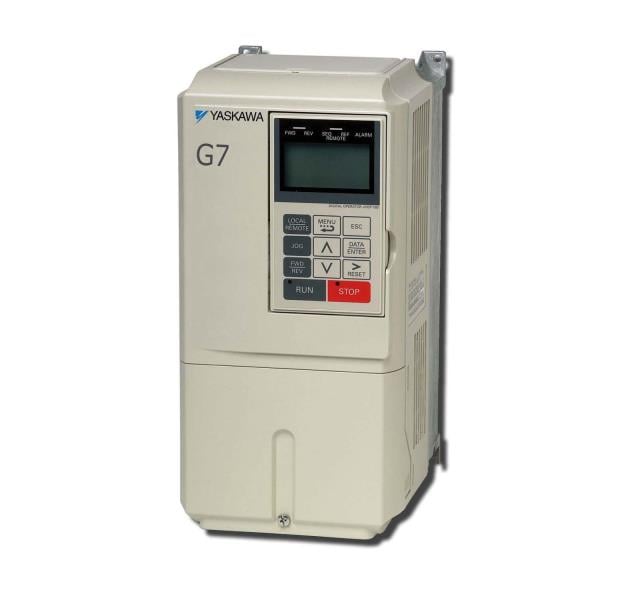

CIMR-G7A22P2 | Yaskawa Electric Varispeed G7 Series Drive 14.4AMP 200/240V
- Regular price
- $1,849.00
- Sale price
- $1,849.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CIMR-G7A22P2
Description
The CIMR-G7A22P2 is a compact three-phase inverter drive from Yaskawa’s Varispeed G7 series, rated at 4.6 kVA and 12 A output. It delivers high-performance motor control in variable-speed applications through vector control technology. Designed for 200–240 V input systems, it supports a wide frequency range and offers reliable protection features under an IP20 enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Yaskawa |
| Category |
Drives
|
| Part Number | CIMR-G7A22P2 |
| Subcategory | Drive |
| Series | Varispeed G7 |
| Drive Type | Inverter Drive |
| Input Voltage | 3-phase 200–240 VAC |
| Input Frequency | 50/60 Hz |
| Input Current | 14.4 A |
| Output Voltage | 0–240 VAC |
| Output Current | 12 A |
| Output Frequency | 0–400 Hz |
| Power Rating | 4.6 kVA |
| Motor Control | Vector control (V/f optional) |
| Enclosure Rating | IP20 (Open chassis type) |
| Mounting Type | Panel mount |
| Communication Option | Optional fieldbus cards (DeviceNet, etc.) |
| Protection Features | OV, UV, OC, Overtemp |
| Operating Temp Range | 0 °C to 40 °C (32–104 °F) |
| Status | Discontinued by manufacturer |
| Recommended Use |
Pumps, fans, conveyors, HVAC, automation |
| Weight | 14.99 lbs (≈6.8 kg) |
Information About CIMR-G7A22P2
The CIMR-G7A22P2 is part of Yaskawa’s premium G7 drive family, engineered for robust industrial applications demanding accuracy and durability. This model operates with a 3-phase 200–240 VAC input and outputs up to 240 V at 12 A, supporting frequencies from 0 to 400 Hz. With an integrated vector control system, it offers excellent torque performance even at low speeds, ideal for machinery such as pumps, fans, and conveyors. Though now discontinued, this drive remains widely used in automation and energy-efficient control retrofits.
Key Features:
- Rated Output: Delivers 12 A at 0–240 VAC with a power capacity of 4.6 kVA.
- Input Specification: Operates at 14.4 A with 3-phase 200–240 VAC, 50/60 Hz input.
- Frequency Range: Supports motor speeds from 0 to 400 Hz for high flexibility.
- Motor Control Type: Features vector control for precise speed and torque regulation.
- Enclosure Rating: IP20 for use in clean, controlled indoor environments.
- Protection Features: Includes overvoltage, undervoltage, overcurrent, and thermal protection.
- Application Versatility: Suitable for conveyors, pumps, fans, compressors, and general automation.
- Energy Efficiency: Designed to reduce operational costs with improved drive-to-motor efficiency.
- Installation Friendly: Compact chassis simplifies mounting and cabinet integration.
- Status: Discontinued by manufacturer but available through surplus and aftermarket channels.
The CIMR-G7A22P2 delivers the reliability, control precision, and protection required for advanced industrial motor control.
