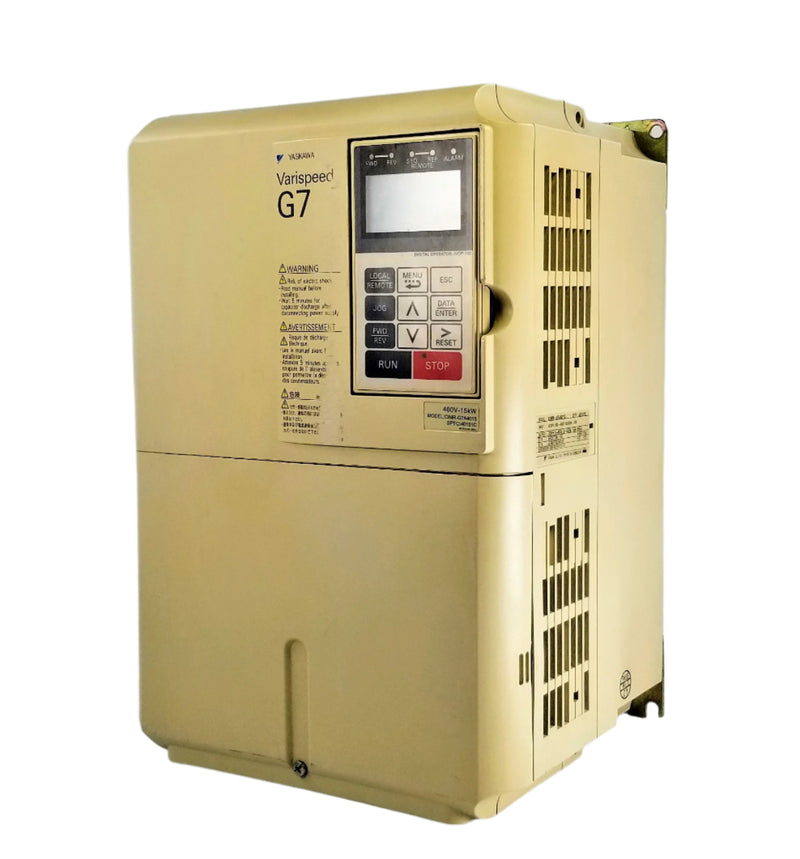

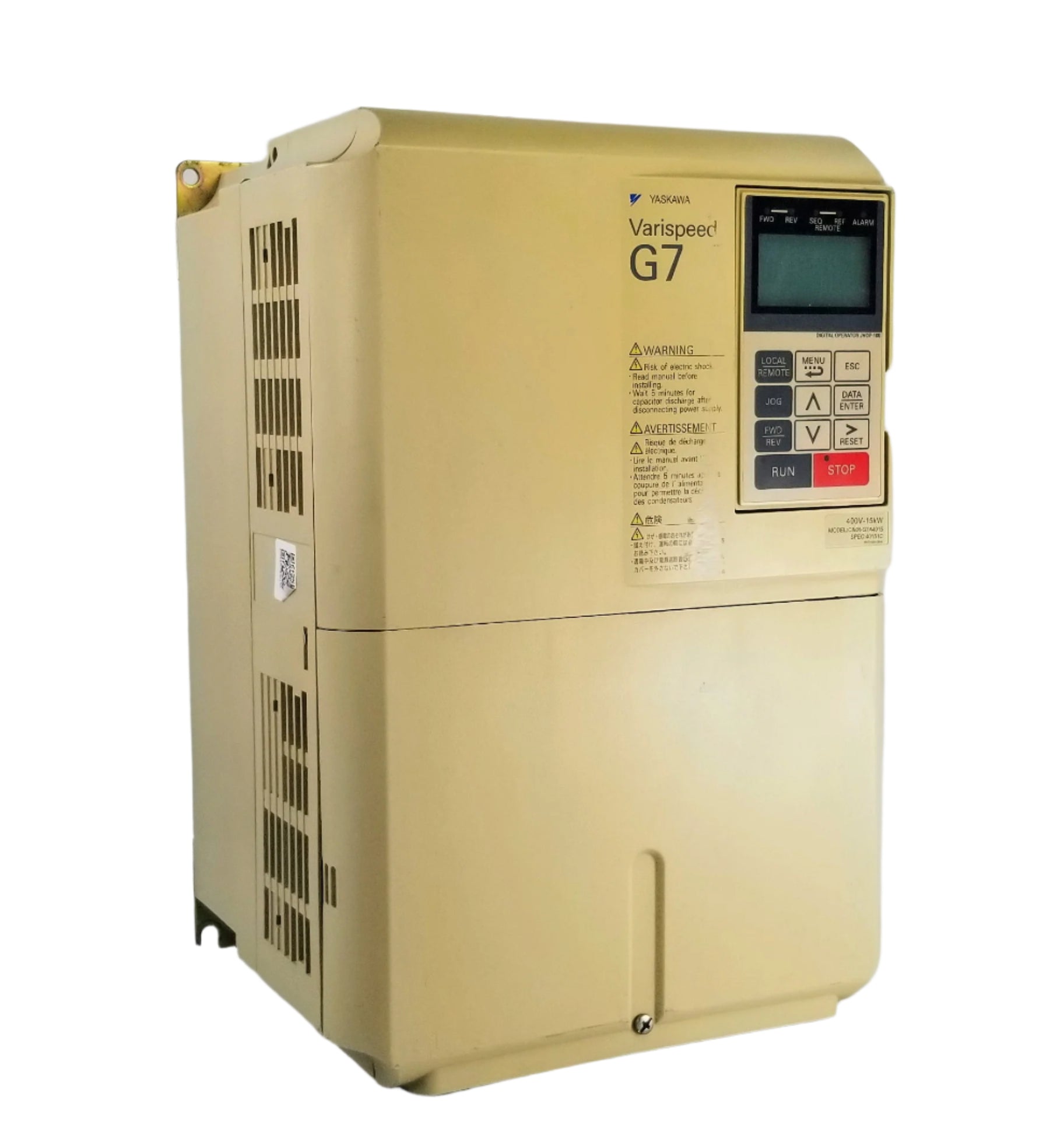

CIMR-G7A4015 | Yaskawa Electric Varispeed G7 Frequency Converter 380V 15KW
- Regular price
- $2,837.00
- Sale price
- $2,837.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CIMR-G7A4015
Description
The CIMR-G7A4015 is a 15 kW high-performance AC drive from Yaskawa’s Varispeed G7 series, developed for three-phase 400 V industrial motor applications. It supports output frequencies up to 400 Hz and delivers 34 A output current, optimized for smooth torque control and flexible automation use. This model is now discontinued by the manufacturer but widely used in legacy systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Yaskawa |
| Category |
Drives
|
| Part Number | CIMR-G7A4015 |
| Subcategory | Drive |
| Series | G7 (Varispeed G7) |
| Rated Motor Output | 15 kW (25 HP) |
| Rated Output Current | 34 A |
| Input Voltage | 3-phase 380–480 V AC, 50/60 Hz |
| Output Voltage | 3-phase 0–480 V AC |
| Output Frequency | 0–400 Hz |
| Control Method | V/f and vector control |
| Enclosure Type | Open chassis (IP00) |
| Dimensions (HxWxD) | 350 mm × 240 mm × 207 mm |
| Output Capacity | 26 kVA |
| Motor Capacity Class | 400 V-class |
| Mounting Type | Panel-mounted (wall installation) |
| Digital Interface | Keypad operator with display |
| Status |
Discontinued by Manufacturer |
| Weight | 23.00 lbs (≈10.4 kg) |
Information About CIMR-G7A4015
The CIMR-G7A4015 is part of the Varispeed G7 family, designed to meet demanding drive control requirements in global industrial environments. Operating with a 3-phase 380–480 VAC input, it delivers a continuous output of 15 kW (25 HP) and up to 34 A current with a maximum frequency of 400 Hz. This model features advanced control technologies like vector control and high-frequency carrier modes for quieter, more precise motor operation. It is enclosed in a 400 V-class chassis structure with global standard compliance, and while discontinued, it remains functional in numerous field installations worldwide.
Key Features:
- Rated Power Output: Delivers 15 kW output (25 HP) with robust torque capability.
- Rated Output Current: Provides 34 A continuous motor current for heavy-duty operations.
- Voltage Range: Accepts 3-phase 380–480 VAC input power at 50/60 Hz.
- Frequency Range: Supports motor frequency control from 0 to 400 Hz.
- Control Modes: Offers vector control and V/f control for accurate speed and torque regulation.
- Drive Enclosure: Chassis-type frame with IP00 protection for panel-mounted installations.
- Dimensions: Measures 350 mm (H) × 240 mm (W) × 207 mm (D), making it compact for its power class.
- User Interface: Comes with built-in keypad and display for diagnostics and setup.
- Weight: Weighs approximately 23 lbs (≈10.4 kg), allowing for easy integration.
- Application Scope: Ideal for fans, pumps, conveyors, paper machinery, and HVAC systems.
The CIMR-G7A4015 delivers the performance, versatility, and safety expected from industrial-grade vector control drives.
