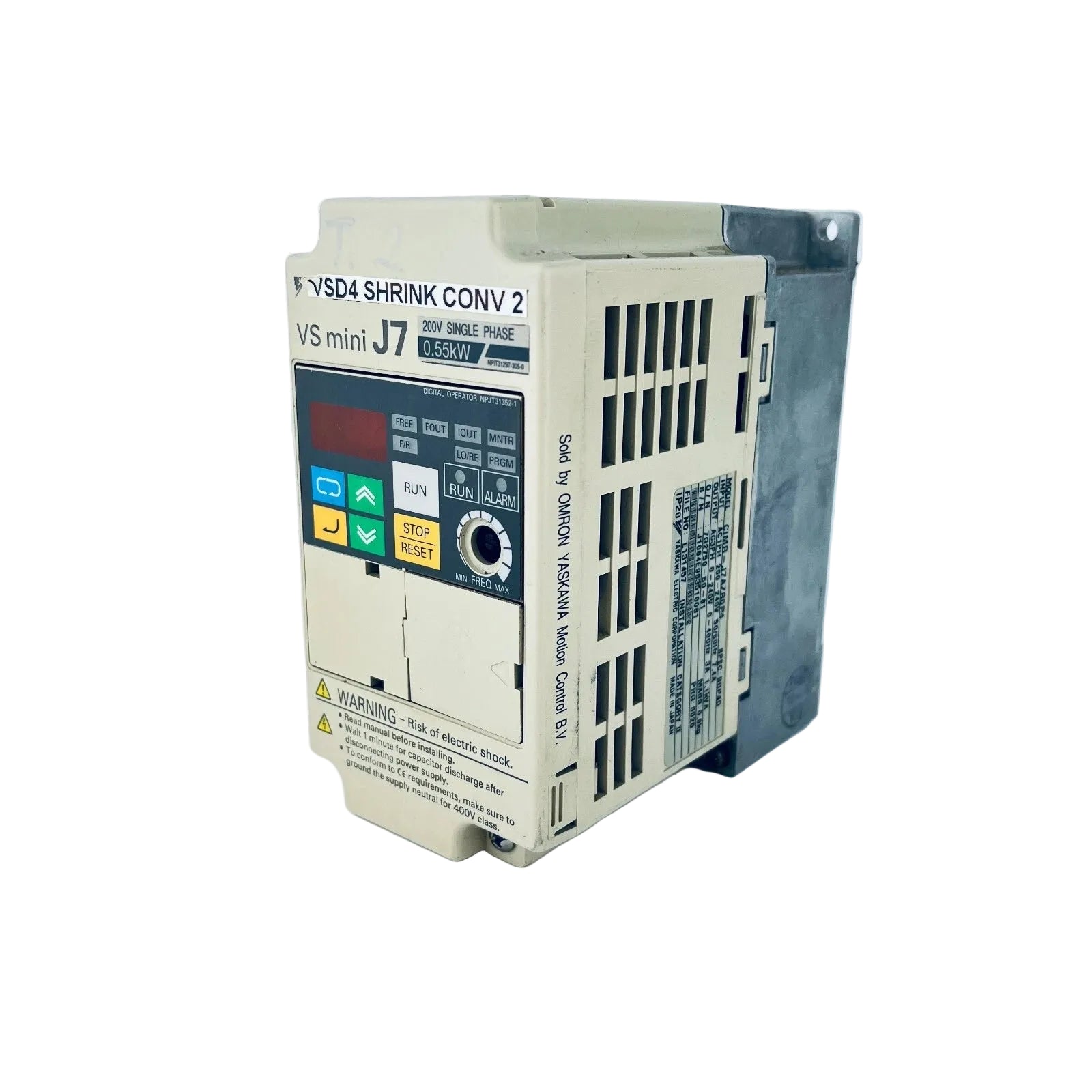

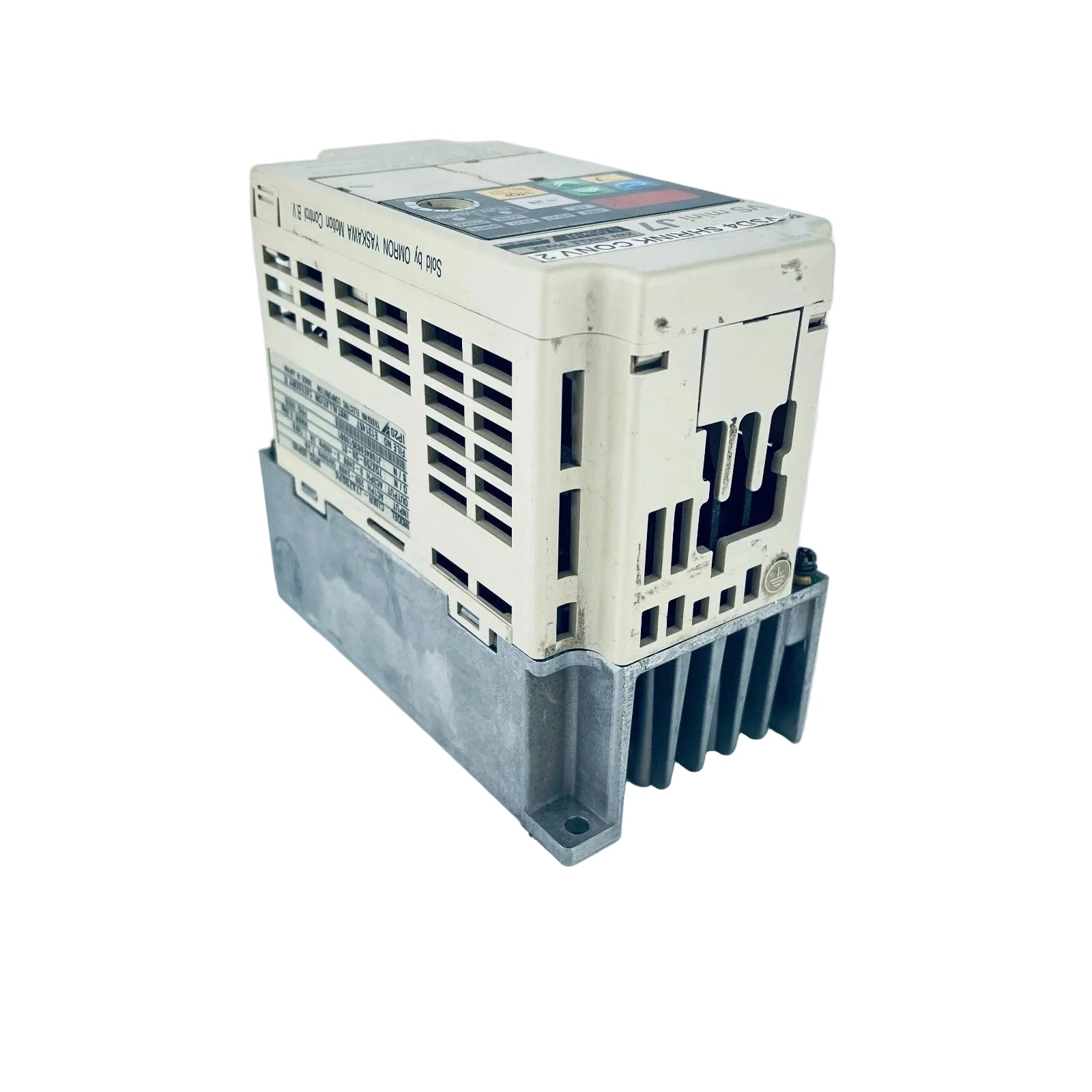

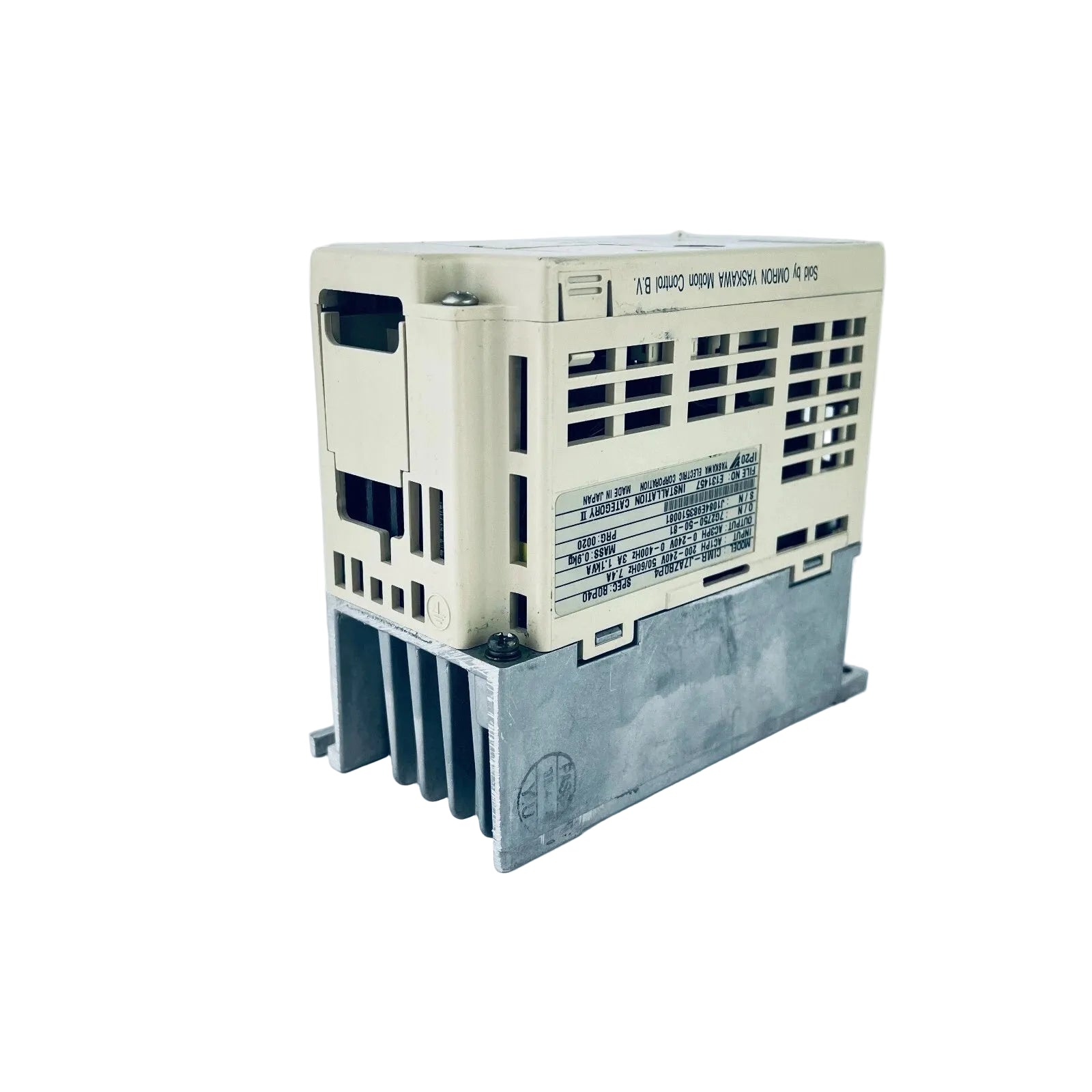

CIMR-J7AZB0P4 | Omron J7 Series 0.55 kW Frequency Inverter, 200 VAC
- Regular price
- $482.00
- Sale price
- $482.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CIMR-J7AZB0P4
Description
The Omron CIMR-J7AZB0P4 frequency inverter is a compact AC drive designed to provide precise speed control for small three-phase motors. It operates from a single-phase 200 VAC input and delivers up to 0.55 kW of motor output using sine wave PWM control. This inverter is part of Omron’s J7 Series and is suitable for light industrial and machinery applications requiring reliable variable-speed control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Variable Frequency Drives |
| Part Number | CIMR-J7AZB0P4 |
| Subcategory | Frequency Inverters |
| Product Line | J7 Series |
| Product Type | AC Frequency Inverter |
| Input Voltage | 200 VAC |
| Input Phase | Single-phase |
| Maximum Motor Output | 0.55 kW |
| Inverter Capacity | 1.1 kVA |
| Output Current | 3 A |
| Output Voltage | 200–240 VAC |
| Maximum Output Frequency | 400 Hz |
| Control Method | Sine wave PWM |
| Overload Capacity | 150% of rated current for 1 minute |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Enclosure Type | Open chassis |
| Maximum Installation Altitude | 1000 m |
| Weight | 0.75 lbs (0.34 kg) |
Information About CIMR-J7AZB0P4
The CIMR-J7AZB0P4 is part of Omron’s CIMR J7 Series of frequency inverters, engineered for efficient and straightforward motor control. It converts single-phase AC input power into controlled three-phase output, enabling smooth acceleration, deceleration, and stable speed regulation. The unit includes an integrated digital operator with a potentiometer, allowing local setup and speed adjustment without additional accessories. Designed with an open chassis enclosure, it is intended for installation inside control panels in environments where compact size and dependable performance are required.
Key Features:
- J7 Series Frequency Inverter: Designed for compact and efficient AC motor speed control applications.
- Single-Phase Power Input: Operates on 200 VAC single-phase supply while driving three-phase motors.
- 0.55 kW Motor Capacity: Suitable for small motor-driven machinery and automation equipment.
- Sine Wave PWM Control: Provides smooth motor operation with reduced noise and vibration.
- Integrated Digital Operator: Includes a built-in potentiometer for local speed adjustment and setup.
- High Overload Capability: Supports 150% of rated current for up to one minute.
- Wide Frequency Range: Allows output frequencies up to 400 Hz for flexible speed control.
The CIMR-J7AZB0P4 delivers the reliability and precision required for compact motor speed control in industrial automation and machinery applications.
Description
The Omron CIMR-J7AZB0P4 frequency inverter is a compact AC drive designed to provide precise speed control for small three-phase motors. It operates from a single-phase 200 VAC input and delivers up to 0.55 kW of motor output using sine wave PWM control. This inverter is part of Omron’s J7 Series and is suitable for light industrial and machinery applications requiring reliable variable-speed control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Variable Frequency Drives |
| Part Number | CIMR-J7AZB0P4 |
| Subcategory | Frequency Inverters |
| Product Line | J7 Series |
| Product Type | AC Frequency Inverter |
| Input Voltage | 200 VAC |
| Input Phase | Single-phase |
| Maximum Motor Output | 0.55 kW |
| Inverter Capacity | 1.1 kVA |
| Output Current | 3 A |
| Output Voltage | 200–240 VAC |
| Maximum Output Frequency | 400 Hz |
| Control Method | Sine wave PWM |
| Overload Capacity | 150% of rated current for 1 minute |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Enclosure Type | Open chassis |
| Maximum Installation Altitude | 1000 m |
| Weight | 0.75 lbs (0.34 kg) |
Information About CIMR-J7AZB0P4
The CIMR-J7AZB0P4 is part of Omron’s CIMR J7 Series of frequency inverters, engineered for efficient and straightforward motor control. It converts single-phase AC input power into controlled three-phase output, enabling smooth acceleration, deceleration, and stable speed regulation. The unit includes an integrated digital operator with a potentiometer, allowing local setup and speed adjustment without additional accessories. Designed with an open chassis enclosure, it is intended for installation inside control panels in environments where compact size and dependable performance are required.
Key Features:
- J7 Series Frequency Inverter: Designed for compact and efficient AC motor speed control applications.
- Single-Phase Power Input: Operates on 200 VAC single-phase supply while driving three-phase motors.
- 0.55 kW Motor Capacity: Suitable for small motor-driven machinery and automation equipment.
- Sine Wave PWM Control: Provides smooth motor operation with reduced noise and vibration.
- Integrated Digital Operator: Includes a built-in potentiometer for local speed adjustment and setup.
- High Overload Capability: Supports 150% of rated current for up to one minute.
- Wide Frequency Range: Allows output frequencies up to 400 Hz for flexible speed control.
The CIMR-J7AZB0P4 delivers the reliability and precision required for compact motor speed control in industrial automation and machinery applications.
