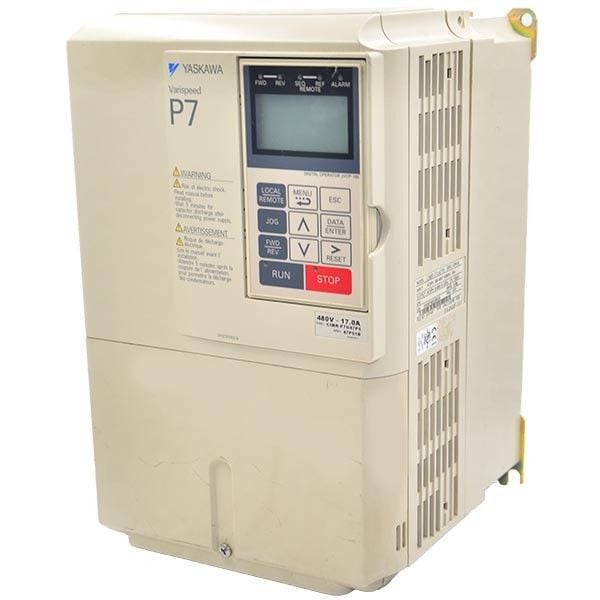

CIMR-P7U47P5 | Yaskawa Electric Varispeed P7 Inverter Drive 3PH NEMA 1 IP20
- Regular price
- $3,407.00
- Sale price
- $3,407.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CIMR-P7U47P5
Description
The Yaskawa CIMR-P7U47P5 is an industrial-grade AC inverter drive from the Varispeed P7 series, engineered to provide robust and precise motor control in demanding automation environments. With a power capacity of 10 horsepower and support for 3-phase 380–480 VAC input, this drive ensures stable and energy-efficient performance across variable speed applications. It is particularly suited for HVAC, pumping, and general-purpose industrial systems requiring precise motor regulation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Drives |
| Part Number | CIMR-P7U47P5 |
| Subcategory | Drive |
| Input Voltage | 3-phase, 380–480 VAC |
| Output Voltage | 0–480 VAC |
| Output Frequency | 0–120 Hz |
| Input Frequency | 50/60 Hz |
| Input Current | 20 A |
| Output Current | 17 A |
| Power Capacity | 10 HP / 13 kVA |
| Enclosure Rating | NEMA 1 / Type 1 / IP20 |
| Frequency Type | AC (60Hz) |
| Control Methods | V/f and Sensorless Vector Control |
| Protection Features | Overvoltage, Undervoltage, Overload |
| Mounting Type | Panel Mount |
| Application | HVAC, Industrial Pumps, General Use |
| Status | Discontinued by Manufacturer |
| Weight | 14.15 lbs |
Information About CIMR-P7U47P5
The CIMR-P7U47P5 is a discontinued yet well-regarded model from Yaskawa’s Varispeed P7 series of high-performance drives. Designed with a Type 1 (NEMA 1) enclosure, this unit provides reliable operation in standard industrial environments. Its input-output specifications make it compatible with a broad range of 3-phase AC motors, particularly in mid-power segments up to 10 HP. The drive includes advanced voltage and frequency control, along with built-in motor protection features to support long-term, maintenance-efficient operations.
Key Features:
- 3-Phase Input Voltage Range: Operates between 380–480 VAC at 50/60 Hz for international compatibility.
- Motor Output Control: Outputs 0–480 VAC at frequencies up to 120 Hz, suitable for variable speed applications.
- Horsepower Capacity: Supports motors up to 10 HP, ideal for mid-size industrial machinery.
- Type 1 Enclosure (NEMA 1): Designed for protected indoor use, meeting IP20 standards.
- Advanced Motor Protection: Includes overload, overvoltage, and undervoltage safeguards.
- Multiple Control Modes: Supports V/f and sensorless vector control for different application needs.
- Panel Mounting Design: Compact enclosure suitable for control cabinets and panels.
- Drive Status Monitoring: Equipped with diagnostic LED indicators and parameter configuration.
The CIMR-P7U47P5 delivers the reliability and precision required for industrial drive applications in automation, HVAC, and pumping systems.
