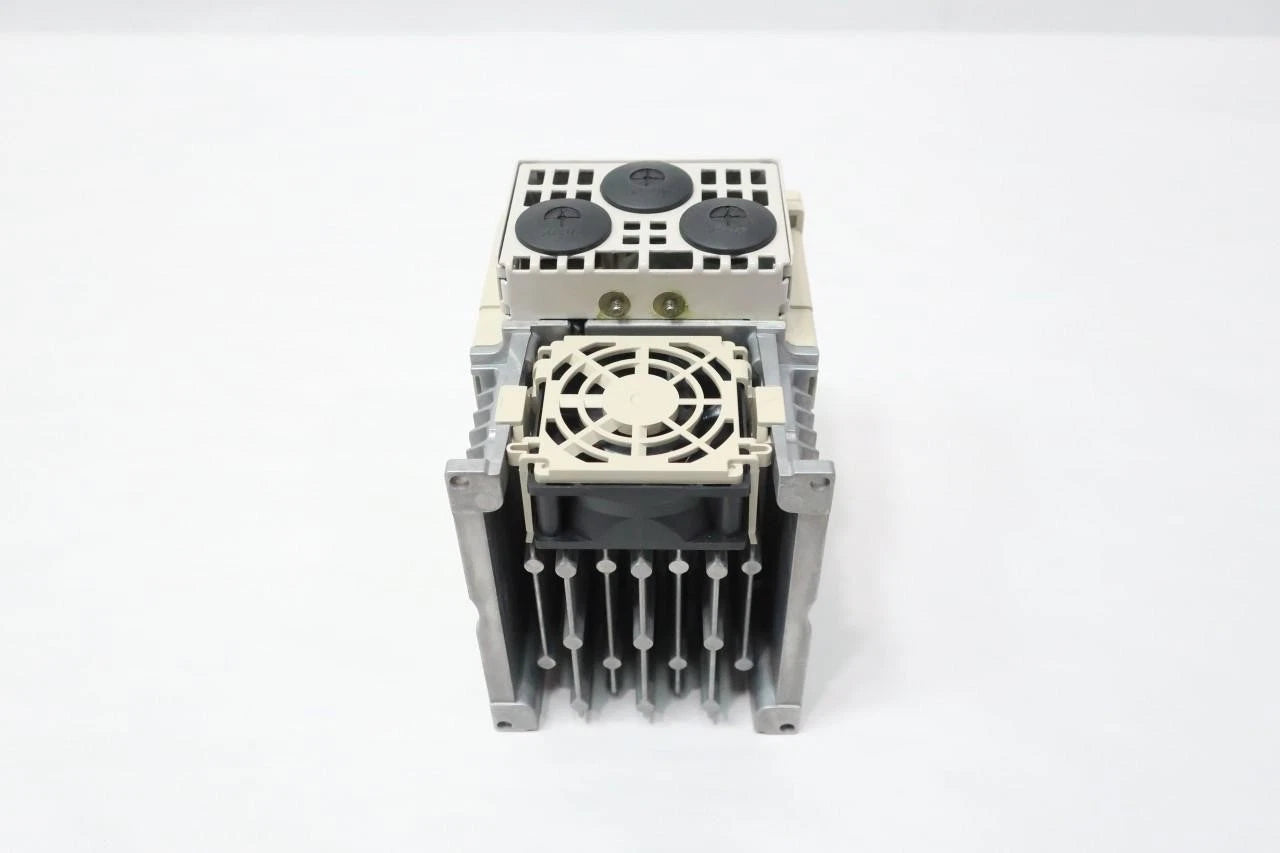

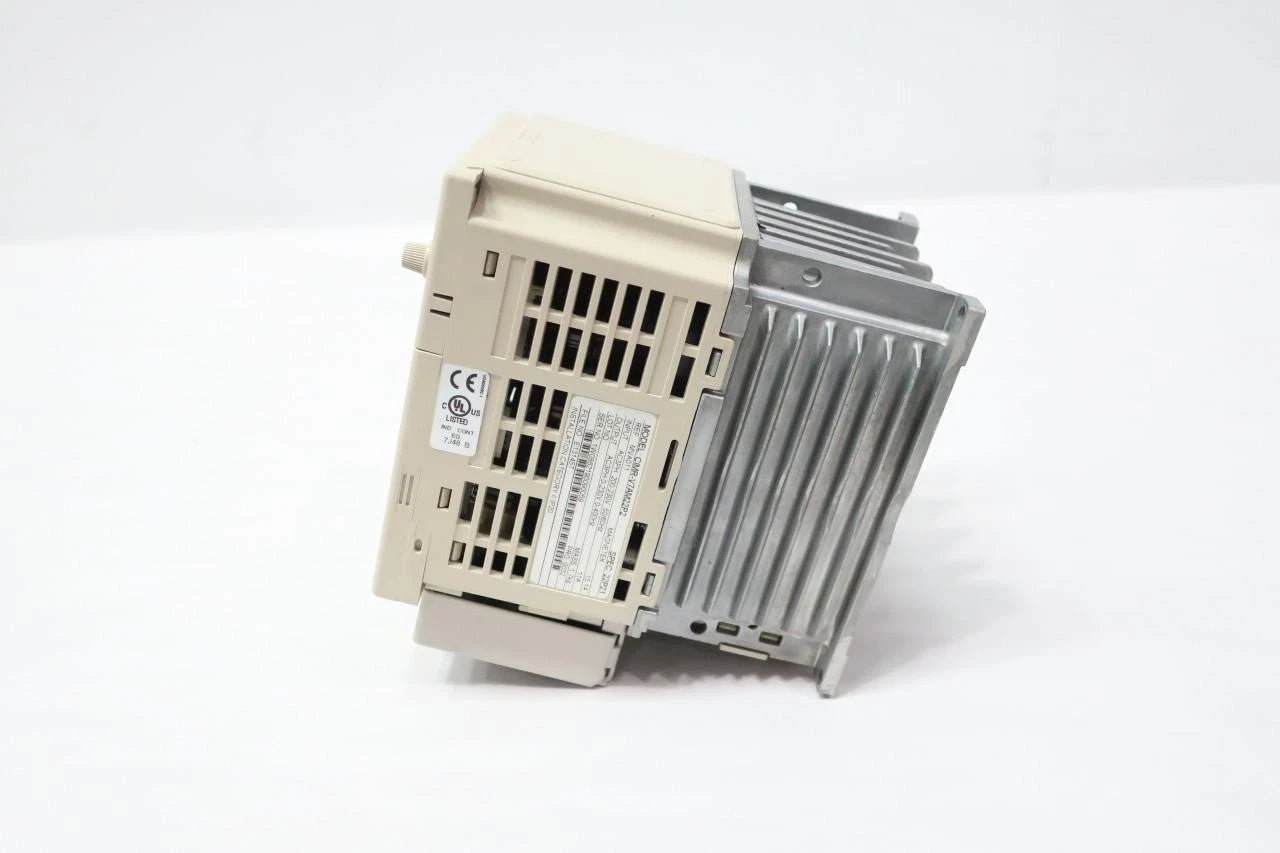

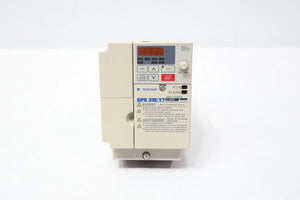

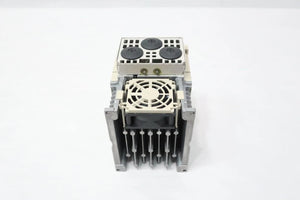

CIMR-V7AM22P2 | Yaskawa Electric AC Inverter PC7 Mini Vector AC Drive
- Regular price
- $1,509.00
- Sale price
- $1,509.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CIMR-V7AM22P2
Description
The CIMR-V7AM22P2 is a compact 3 HP AC drive developed by Yaskawa for precision control of three-phase induction motors. Operating within a 200–230 V input range and offering 11 A output current, this inverter supports flexible speed control from 0 to 400 Hz. Designed with IP20/NEMA 1 protection, it is ideal for conveyor systems, packaging equipment, and general industrial automation tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Yaskawa |
| Category |
Drives
|
| Part Number | CIMR-V7AM22P2 |
| Subcategory | Drive |
| Rated Motor Power | 3 HP (2.2 kW) |
| Rated Output Current | 11 A |
| Input Voltage | 3-phase 200–230 V AC, 50/60 Hz |
| Output Voltage | 0–230 V AC |
| Output Frequency | 0–400 Hz |
| Enclosure Rating | IP20 / NEMA 1 |
| Control Methods | V/f, Open-loop Vector |
| Overload Capacity | 150% for 60 sec |
| Communication | RS-485 Modbus RTU |
| Digital Inputs | 7 programmable multi-function inputs |
| Temperature Range | -10 °C to +40 °C |
| Efficiency | ≥95% |
| Dimensions | Approx. standard V7 chassis size |
| Standards |
UL, cUL, CE certified |
| Weight | 2.48 lbs / 1.13 kg |
Information About CIMR-V7AM22P2
The CIMR-V7AM22P2 is a V7-series inverter by Yaskawa, built for both constant torque and variable torque applications. It accepts three-phase 200–230 VAC input and delivers 11 A output current with a wide frequency output of up to 400 Hz, enabling precise motor speed control. Featuring two standard control methods—V/f and open-loop vector—it offers enhanced torque at low speeds and low motor noise. Originally released under the GPD315/V7 designation, this drive model is equipped with a built-in operator panel, analog speed potentiometer, and RS-485 Modbus RTU communication, making it compatible with a wide range of control systems.
Key Features:
- Rated Power Output: 3 HP (2.2 kW) output with reliable performance under continuous duty.
- Voltage Input Range: Operates at 200–230 VAC, three-phase, at 50/60 Hz frequency.
- Output Frequency Range: Supports motor speeds from 0 to 400 Hz for flexible operation.
- Output Current: Rated for 11 A continuous output; 150% overload for 60 seconds.
- Control Methods: Features both V/f and open-loop vector control for dynamic performance.
- Enclosure Type: Built in NEMA 1/IP20 housing, offering protection against solid objects.
- Interface and Programming: Includes 4-digit LED display, 7 programmable digital inputs, and analog/digital control options.
- Serial Communication: Standard RS-485/RS-422 port with support for up to 32 Modbus RTU nodes.
- Network Integration: Supports DeviceNet, Profibus-DP, and others via snap-in option boards.
- Software Tools: Compatible with DriveWizard and CASE for advanced parameter management.
The CIMR-V7AM22P2 delivers the reliability and configurability required for compact industrial motor control applications.
