CIMR-V7AM41P5 | Yaskawa Electric 1.5 kW V7 AC Inverter Drive, 380–460V, IP20, 2 HP
- Regular price
- $1,287.00
- Sale price
- $1,287.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CIMR-V7AM41P5
Description

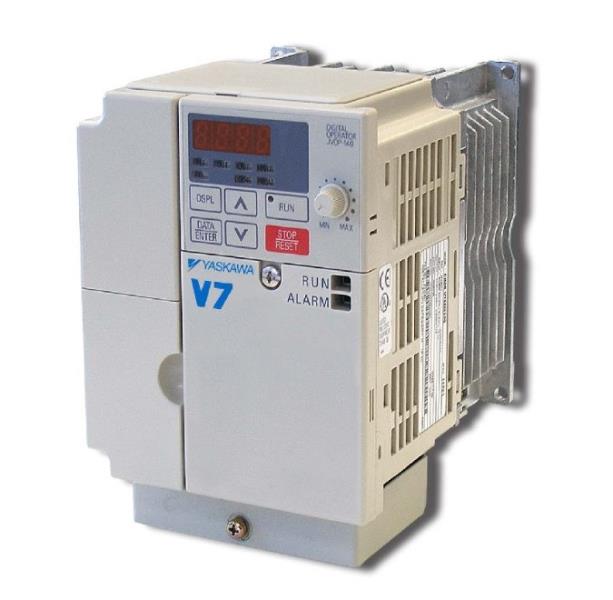

The Yaskawa CIMR-V7AM41P5 is a compact AC inverter drive designed for precise motor control in demanding three-phase industrial applications. With a power rating of 1.5 kW (2 HP), this drive supports input voltages from 380 to 460 VAC at 50/60 Hz and is optimized for indoor installations requiring IP20 protection. Yaskawa’s engineering ensures efficient performance and reliability for motion control tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Drives |
| Part Number | CIMR-V7AM41P5 |
| Subcategory | Drive |
| Model | GPD 315/V7 |
| Input Voltage | 3 Phase 380–460 VAC |
| Input Frequency | 50/60 Hz |
| Input Current | 7.0 A |
| Output Voltage | 0–460 VAC |
| Output Frequency | 0–400 Hz |
| Output Current | 4.8 A |
| Power Rating | 1.5 kW (2 HP) |
| Enclosure Rating | IP20 |
| Mounting Type | Panel mount |
| Control Method | 2-Wire (programmable to 3-Wire) |
| Ambient Temperature | -10°C to 50°C |
| Humidity Range | 20–85% (non-condensing) |
| Max Cable Length | 50 meters (164 ft) |
| Protection Functions | Overload, overvoltage, grounding |
| Weight | 3.11 lbs |
Information About CIMR-V7AM41P5
The CIMR-V7AM41P5 is part of the Yaskawa GPD 315/V7 series of compact inverter drives, tailored for light-duty industrial use. Built to support three-phase input and output, it provides a broad output frequency range up to 400 Hz, enabling precise motor speed adjustments. Its configuration is ideal for applications such as conveyors, fans, and light machinery, with a standard 2-wire control system that can be adapted to 3-wire via parameter settings. Designed with installation flexibility in mind, it features robust mounting and wiring options that meet safety and operational standards.
Key Features:
- Compact Form Factor: Lightweight and space-efficient design for easy cabinet integration.
- Flexible Control Modes: Default 2-wire external control; supports reconfiguration to 3-wire control via parameters.
- Wide Output Frequency: Operates from 0 to 400 Hz for diverse motor control tasks.
- IP20 Protection: Protected against solid objects larger than 12 mm; suitable for indoor use.
- Safe Wiring Guidelines: Supports 600V-rated cable, shielded wiring, and proper grounding for industrial safety.
- Built-In Diagnostics: Includes system error indicators and parameter testing via digital operator.
- Ambient Tolerance: Operates in -10 to +50°C and up to 85% non-condensing humidity.
- Versatile Applications: Ideal for fans, conveyors, and general light-duty motor control tasks.
The CIMR-V7AM41P5 delivers the reliability and precision required for dependable industrial motion control.
Description
The Yaskawa CIMR-V7AM41P5 is a compact AC inverter drive designed for precise motor control in demanding three-phase industrial applications. With a power rating of 1.5 kW (2 HP), this drive supports input voltages from 380 to 460 VAC at 50/60 Hz and is optimized for indoor installations requiring IP20 protection. Yaskawa’s engineering ensures efficient performance and reliability for motion control tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Drives |
| Part Number | CIMR-V7AM41P5 |
| Subcategory | Drive |
| Model | GPD 315/V7 |
| Input Voltage | 3 Phase 380–460 VAC |
| Input Frequency | 50/60 Hz |
| Input Current | 7.0 A |
| Output Voltage | 0–460 VAC |
| Output Frequency | 0–400 Hz |
| Output Current | 4.8 A |
| Power Rating | 1.5 kW (2 HP) |
| Enclosure Rating | IP20 |
| Mounting Type | Panel mount |
| Control Method | 2-Wire (programmable to 3-Wire) |
| Ambient Temperature | -10°C to 50°C |
| Humidity Range | 20–85% (non-condensing) |
| Max Cable Length | 50 meters (164 ft) |
| Protection Functions | Overload, overvoltage, grounding |
| Weight | 3.11 lbs |
Information About CIMR-V7AM41P5
The CIMR-V7AM41P5 is part of the Yaskawa GPD 315/V7 series of compact inverter drives, tailored for light-duty industrial use. Built to support three-phase input and output, it provides a broad output frequency range up to 400 Hz, enabling precise motor speed adjustments. Its configuration is ideal for applications such as conveyors, fans, and light machinery, with a standard 2-wire control system that can be adapted to 3-wire via parameter settings. Designed with installation flexibility in mind, it features robust mounting and wiring options that meet safety and operational standards.
Key Features:
- Compact Form Factor: Lightweight and space-efficient design for easy cabinet integration.
- Flexible Control Modes: Default 2-wire external control; supports reconfiguration to 3-wire control via parameters.
- Wide Output Frequency: Operates from 0 to 400 Hz for diverse motor control tasks.
- IP20 Protection: Protected against solid objects larger than 12 mm; suitable for indoor use.
- Safe Wiring Guidelines: Supports 600V-rated cable, shielded wiring, and proper grounding for industrial safety.
- Built-In Diagnostics: Includes system error indicators and parameter testing via digital operator.
- Ambient Tolerance: Operates in -10 to +50°C and up to 85% non-condensing humidity.
- Versatile Applications: Ideal for fans, conveyors, and general light-duty motor control tasks.
The CIMR-V7AM41P5 delivers the reliability and precision required for dependable industrial motion control.
