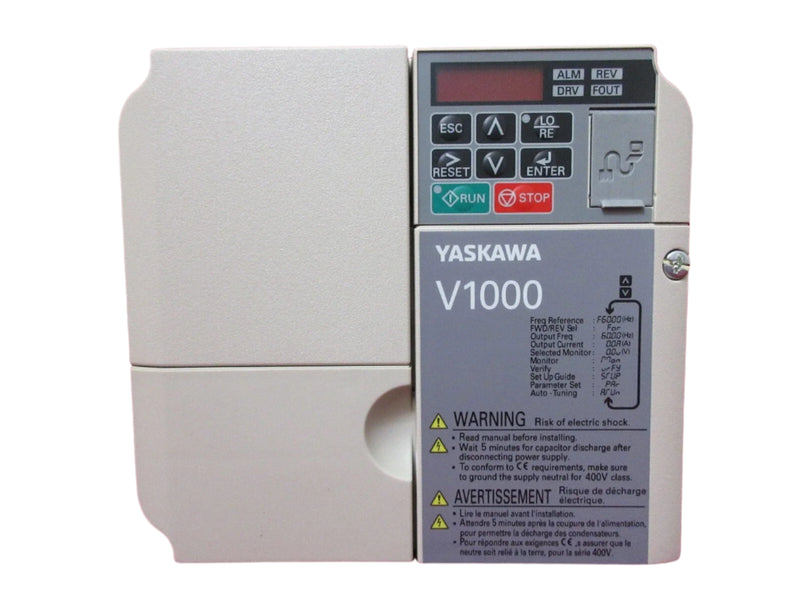

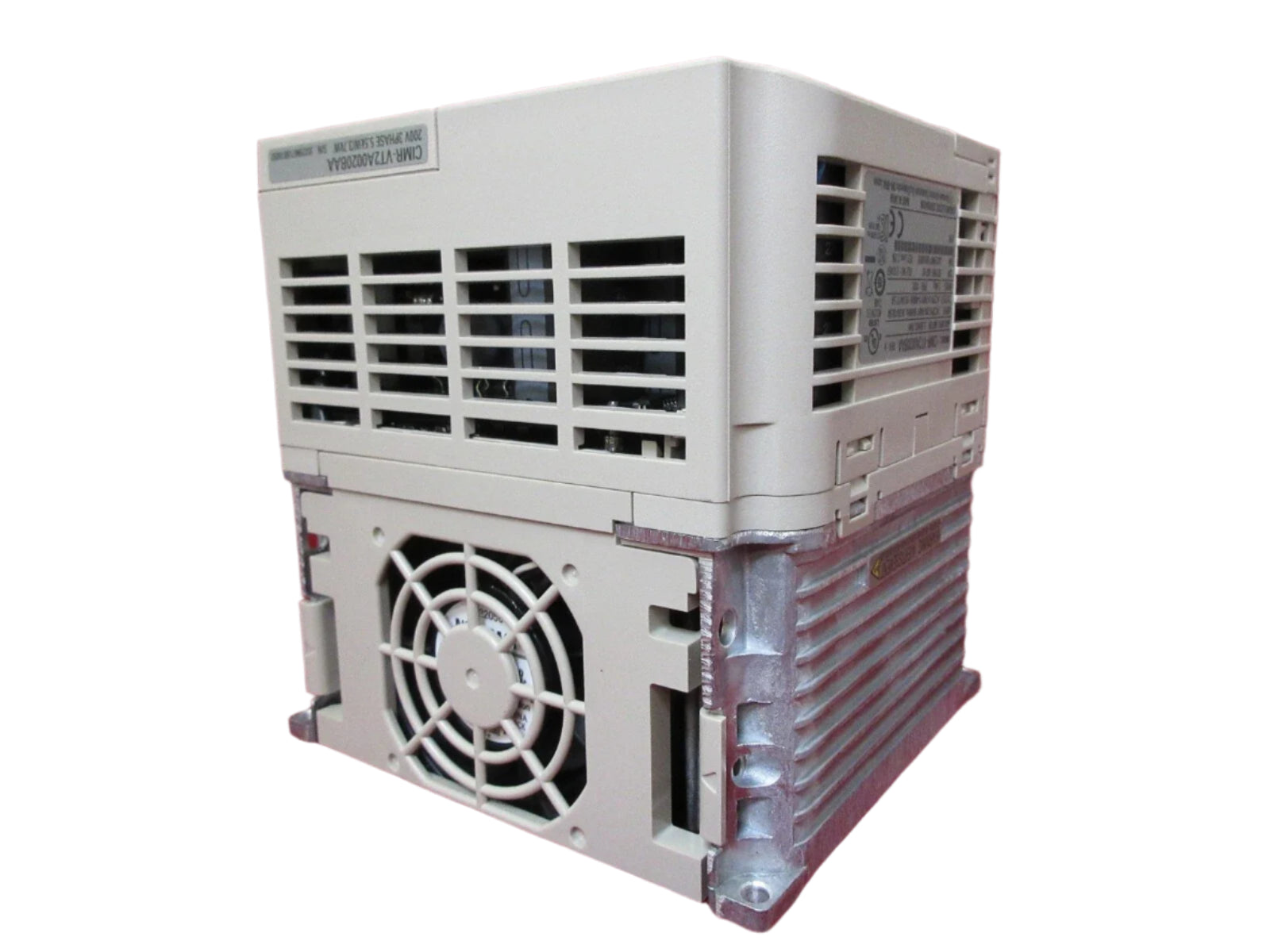

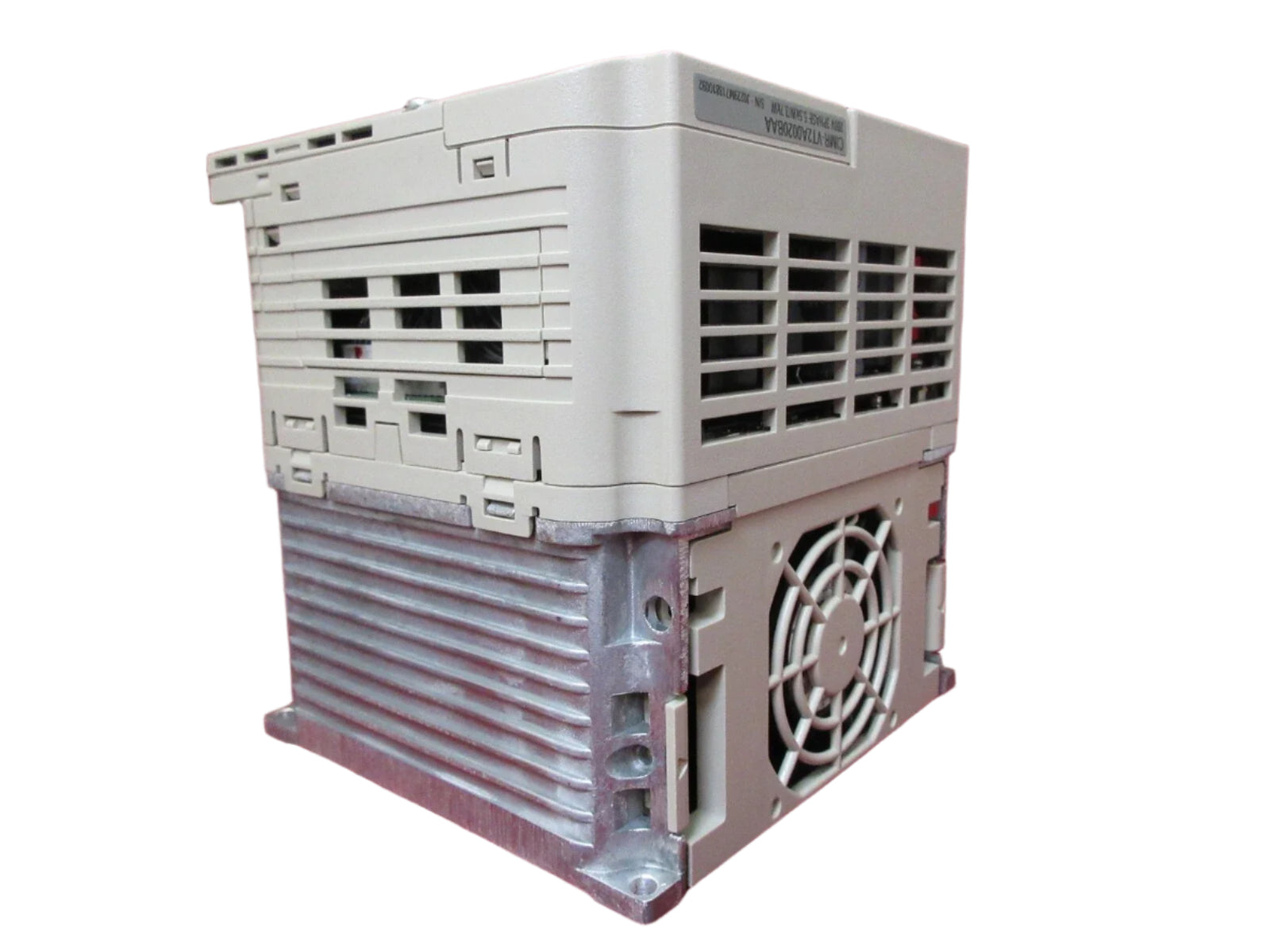

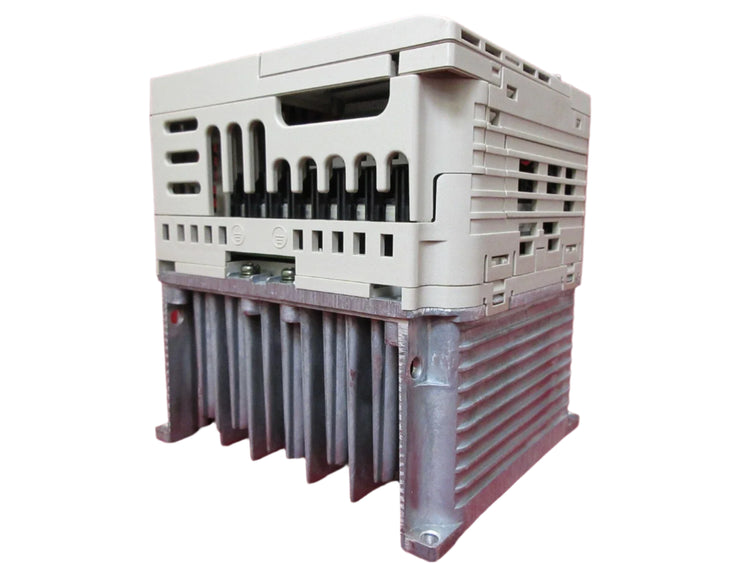

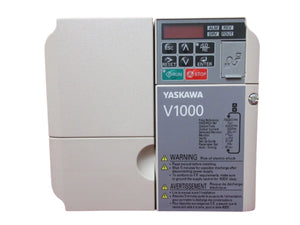

CIMR-VT2A0020BAA | Yaskawa Electric V1000 AC Drive 3.7kW/5.5kW 200–240V, IP20, 3-Phase
- Regular price
- $1,242.00
- Sale price
- $1,242.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CIMR-VT2A0020BAA
Description
The Yaskawa CIMR-VT2A0020BAA is a high-performance variable frequency drive designed for precise motor control in industrial environments. This compact inverter supports both induction and permanent magnet motors, offering optimal performance in demanding automation systems. It delivers 3.7 kW heavy-duty and 5.5 kW normal-duty output power, ideal for applications like pumps, conveyors, and HVAC fans.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Drives |
| Part Number | CIMR-VT2A0020BAA |
| Subcategory | Drive |
| Series | V1000 |
| Input Voltage | 3-Phase 200–240 V AC |
| Output Voltage | 0–240 V AC |
| Output Frequency | 0–400 Hz |
| Rated Output Current (Heavy) | 17.5 A |
| Rated Output Current (Light) | 19.6 A |
| Max Motor Capacity (Heavy) | 3.7 kW |
| Max Motor Capacity (Light) | 5.5 kW |
| Output Capacity | 6.7 kVA |
| Voltage Class | Three-Phase 200 V |
| Output Specification | Three-Phase |
| Enclosure Type | IP20 |
| Dimension (H x W x D) | 149 x 140 x 143 mm |
| Region Code | Asia |
| Environmental Spec | Standard |
| Mounting Type | Wall Mounted / Side-by-side ready |
| Motor Control Type | V/f and vector control |
| Safety Standards | ISO13849-1 Cat.3 PLd, IEC61508 SIL2 |
| Weight | 14.00 lbs |
Information About CIMR-VT2A0020BAA
The CIMR-VT2A0020BAA is part of Yaskawa’s V1000 series, known for its compact build, fast setup, and high reliability. This standard model supports 3-phase 200–240 VAC input and provides output ratings tailored for both light and heavy load conditions. Compatible with synchronous and asynchronous motors, it ensures high starting torque and precise control across varied applications. Its IP20 enclosure and side-by-side mountable frame make it suitable for tight installation spaces in industrial panels.
Key Features:
- Dual Motor Support: Controls both induction motors and permanent magnet (IPMM/SPMM) motors.
- High Starting Torque: Delivers up to 200% torque at 0.5 Hz for heavy-duty start-up.
- Wide Application Presets: Includes predefined settings for fans, conveyors, pumps, and hoists.
- Rapid Parameter Backup: Instantly uploads parameters using pluggable terminal board for fast replacements.
- Compact Footprint: Up to 70% smaller than older models, perfect for side-by-side installation.
- Advanced Monitoring: Integrated oscilloscope, energy tracking, and diagnostic tools via DriveWizard software.
- Safety Compliance: Built-in features meet global standards including ISO13849-1 Cat.3 PLd and IEC61508 SIL2.
- USB Copy Support: Allows mass drive configuration from PC or USB device.
The CIMR-VT2A0020BAA delivers the reliability and precision required for modern industrial motor control applications.
