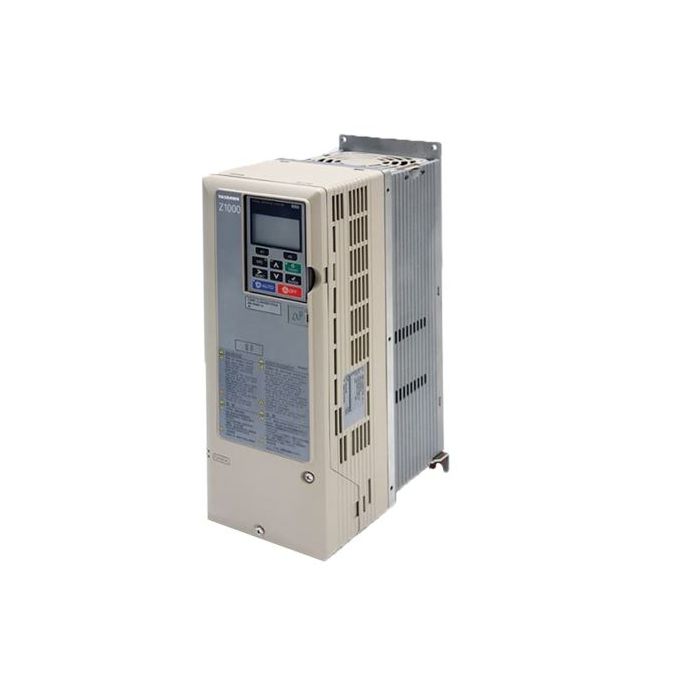

CIMR-ZU4A0027FAA | Yaskawa Electric Z1000 Variable Frequency Drive
- Regular price
- $4,199.00
- Sale price
- $4,199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CIMR-ZU4A0027FAA
Description
The CIMR‑ZU4A0027FAA is a 20 HP HVAC variable frequency drive from Yaskawa’s Z1000 series, built for efficient fan and pump control in building automation systems. Operating on a 3-phase 460 V input, it delivers 27 A output current and supports frequencies from 0.01 to 240 Hz. Designed for clean installation and easy operation, it includes a real-time clock and an integrated keypad with Hand‑Off‑Auto control.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Yaskawa |
| Category |
Drives
|
| Part Number | CIMR-ZU4A0027FAA |
| Subcategory | Drive |
| Series | Z1000 Series |
| Rated Power | 20 HP (14.92 kW) |
| Rated Output Current | 27 A |
| Input Voltage | 460 V, 3-phase |
| Output Voltage | 460 V, 3-phase |
| Output Frequency Range | 0.01 to 240 Hz |
| Control Methods | V/Hz, Open Loop Vector |
| Enclosure Rating | UL Type 1 (Indoor) |
| Communication | BACnet, Modbus/Memobus, Metasys, Apogee FLN |
| Display | LCD, 5-line, 16-character alphanumeric with H/O/A |
| Clock Function | Built-in real-time clock for event scheduling |
| Harmonics Reduction | 5% input reactor built-in |
| EMI/RFI Filter | IEC 61800-3 compliant |
| PI Regulation | Dual PI control for system-level automation |
| Mounting Style | Chassis mount |
| Height | 17.60 in |
| Width | 4.90 in |
| Depth | 9.20 in |
| Weight | 18.00 lbs |
Information About CIMR-ZU4A0027FAA
The CIMR‑ZU4A0027FAA is a UL Type 1 enclosed Z1000 drive rated at 20 HP and 27 A output. It integrates harmonic mitigation via a built-in 5% line impedance reactor and EMI/RFI filters compliant with IEC 61800-3. Its communication interface supports BACnet (BTL Certified), Modbus/Memobus, Metasys, and Apogee FLN protocols, making it ideal for BMS-integrated HVAC applications. A 5-line alphanumeric LCD keypad provides convenient local control, while the drive’s internal real-time clock allows for advanced scheduling and diagnostics. Though discontinued, it remains a reliable choice for commercial HVAC retrofits and upgrades.
Key Features:
- 20 HP / 27 A Output: Ideal for building HVAC fans and pumps.
- 460 V Input/Output: 3-phase power for consistent industrial use.
- Output Frequency Range: Adjustable from 0.01 Hz to 240 Hz.
- UL Type 1 Enclosure: Protected for indoor mounting in plenum-rated spaces.
- Real-Time Clock: Enables time-based scheduling and event logging.
- Integrated LCD Keypad: 5-line display with Hand-Off-Auto functionality.
- Harmonic Mitigation: Built-in 5% line reactor for reduced input distortion.
- Multiple Communication Protocols: BACnet, Modbus, Metasys, Apogee FLN.
- PI Control Function: Maintains pressure, flow, or temperature setpoints.
- Application Macros: Simplifies configuration with pre-set use-case templates.
The CIMR‑ZU4A0027FAA delivers intelligent control and reliable performance for energy-efficient building automation systems.
