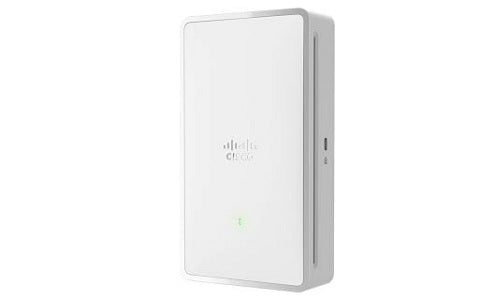

Cisco C9105AXW-B Catalyst 9105 Wi-Fi 6 Wall Plate Access Point with Internal Antennas and Ethernet Ports
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C9105AXW-B
Description
The Cisco C9105AXW-B is a Wi-Fi 6 wall-plate access point that combines wireless coverage with local Ethernet connections for hospitality rooms, residence halls, and similar indoor spaces. Its concurrent 2.4 GHz and 5 GHz radios support two spatial streams per band and a combined theoretical wireless rate of up to 1.488 Gbps.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cisco |
| Category | Networking Equipment |
| Part Number | C9105AXW-B |
| Subcategory | Wireless Access Points |
| Series | Catalyst 9105 |
| Deployment Type | Indoor wall-plate access point |
| Regulatory Domain | B; United States configuration |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax; Wi-Fi 6 |
| Radio Configuration | Concurrent 2.4 GHz and 5 GHz; 2x2 MIMO with two spatial streams per radio |
| Maximum Wireless Rate | Up to 1.488 Gbps combined theoretical PHY rate; actual throughput varies |
| Antenna Configuration | Internal; 3 dBi peak gain at 2.4 GHz and 5 dBi at 5 GHz |
| Ethernet Uplink | One RJ45 100/1000/2500BASE-T port |
| Ethernet Downlinks | Three RJ45 10/100/1000BASE-T ports; LAN1 supports up to 10.5 W power output |
| Additional Interfaces | RJ45 console, USB 2.0 with up to 4.5 W output, and passthrough port |
| Power Input | Power over Ethernet only; IEEE 802.3af, 802.3at, or compatible Cisco UPOE |
| Power-Mode Limitations | 802.3af disables USB and LAN1 power output; 802.3at enables either USB or LAN1 power output |
| Controller Compatibility | Catalyst 9800 Series; legacy 3504, 5520, 8540, and virtual controllers with compatible software |
| Mounting Accessories | AIR-AP-BRACKET-W4= bracket; optional C9105AXW-KIT spacer; supplied listing excludes mounts |
| Weight | Approximately 0.80 lbs |
Information About C9105AXW-B
The C9105AXW-B is part of Cisco’s Catalyst 9105 Series, built with integrated antennas and a compact enclosure for wall-mounted installation. Its multigigabit uplink connects to the building network, while three Gigabit Ethernet downlinks accommodate nearby wired devices. Compatible Cisco wireless controllers manage configuration and operation, with support dependent on the controller platform and software release. Wi-Fi 6 technologies include multi-user MIMO, OFDMA, target wake time, and BSS coloring to improve wireless resource utilization.
Key Features:
- Concurrent Dual-Band Operation: Provides separate 2.4 GHz and 5 GHz radios for compatible wireless clients.
- Two Spatial Streams: Supports 2x2 multi-user MIMO operation on each wireless band.
- Wi-Fi 6 Efficiency: Uses uplink/downlink OFDMA and target wake time to coordinate client transmissions.
- Multigigabit Uplink: Includes one RJ45 interface supporting 100 Mbps, 1 Gbps, and 2.5 Gbps.
- Local Wired Connectivity: Provides three Gigabit Ethernet downlinks for in-room equipment.
- Downstream Power Delivery: LAN1 supports a 10.5 W power budget when the required input-power mode is available.
- Integrated Antennas: Uses internal antennas with peak gains of 3 dBi at 2.4 GHz and 5 dBi at 5 GHz.
- Wall-Plate Installation: Supports room-level deployment using the compatible Cisco mounting bracket.
The C9105AXW-B delivers the reliability and precision required for managed wireless access and in-room wired connectivity across hospitality and residential facilities.
