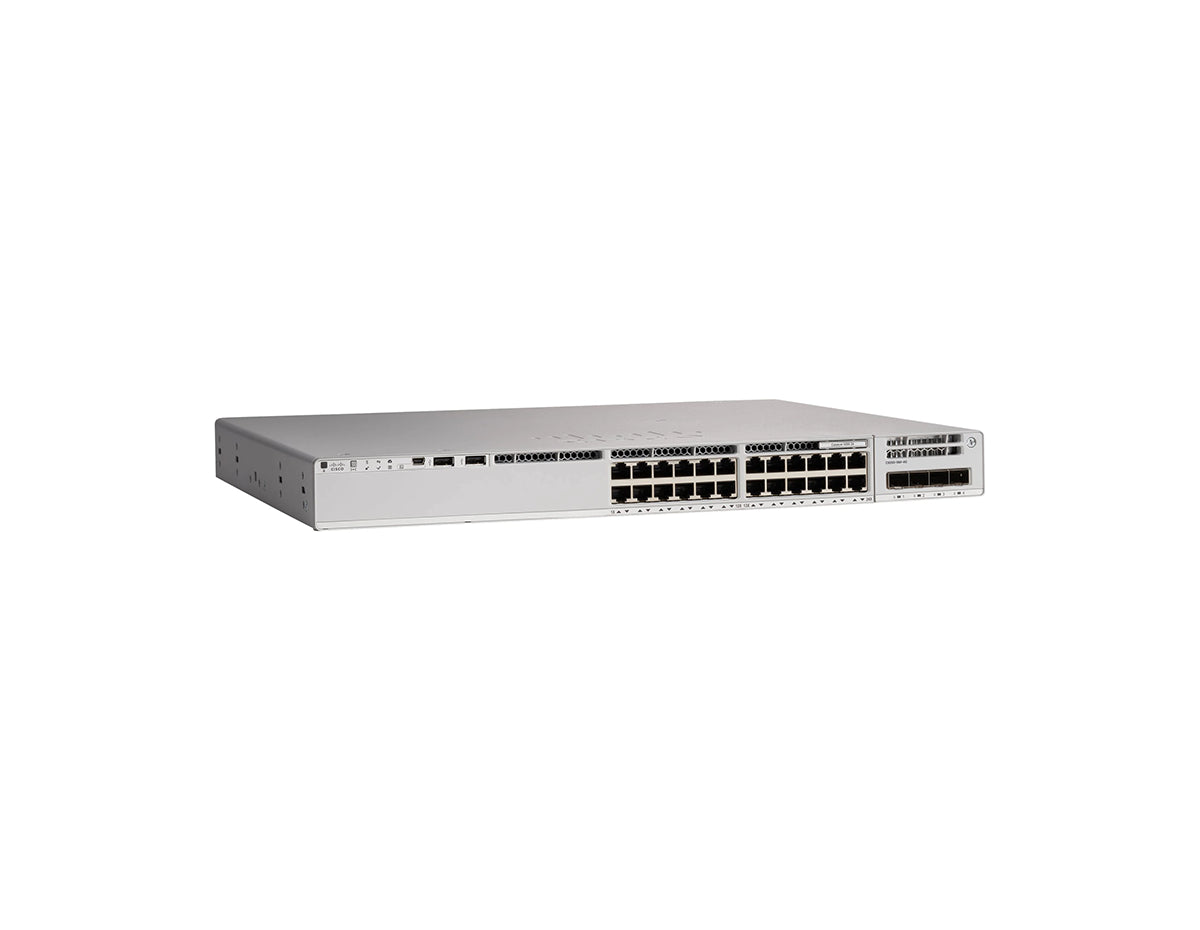

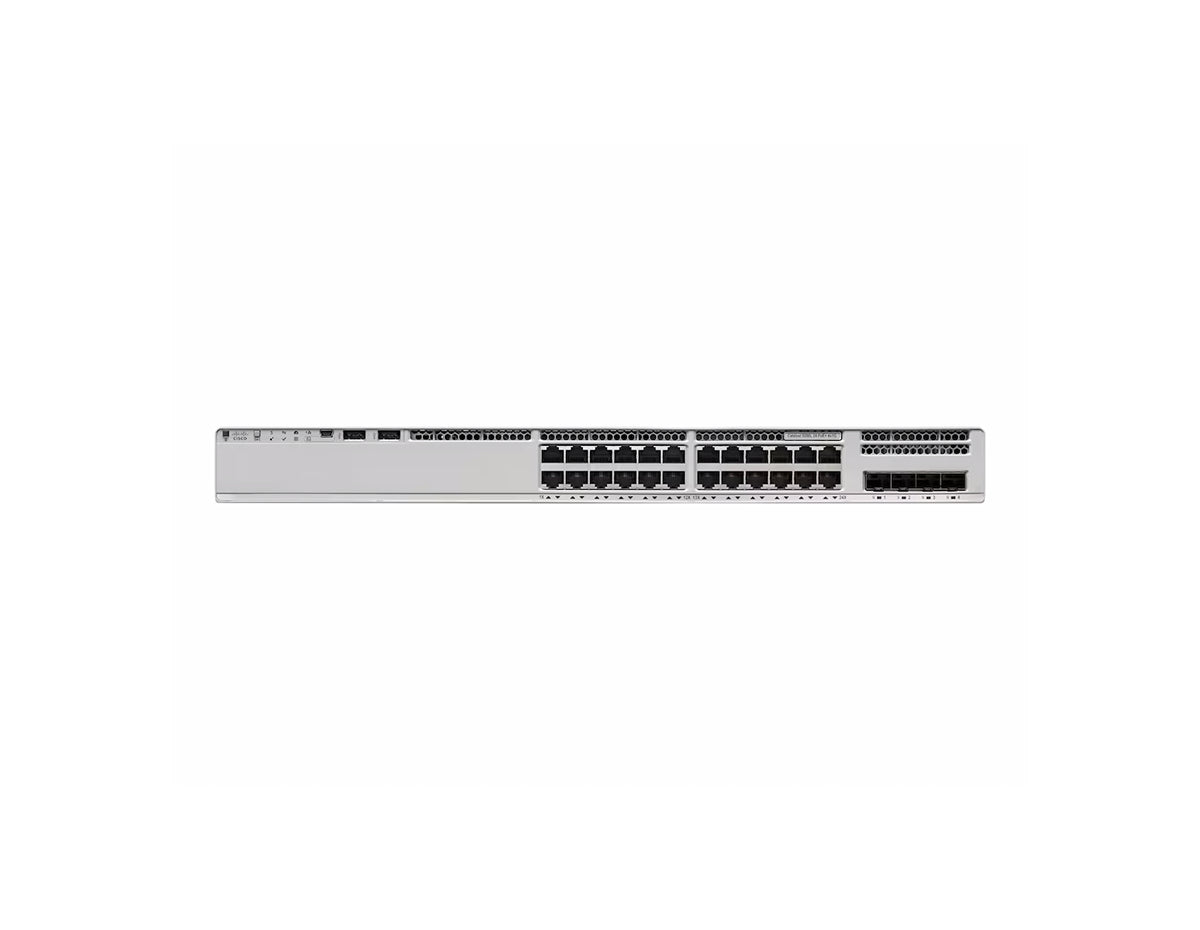

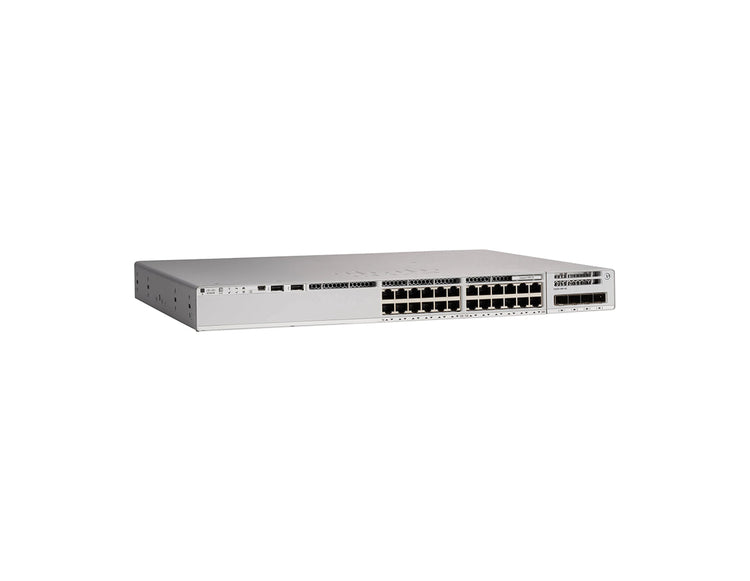

Cisco C9200-24PXG-A 24-Port Multigigabit PoE+ Managed Enterprise Network Switch
- Regular price
- $6,699.00
- Sale price
- $6,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C9200-24PXG-A
Description
The Cisco C9200-24PXG-A is a managed enterprise Ethernet switch designed to deliver high-speed multigigabit connectivity, Power over Ethernet Plus (PoE+), and advanced Layer 3 networking capabilities. Featuring 24 access ports with a combination of multigigabit and Gigabit Ethernet interfaces, it supports modern wireless, voice, video, and IoT deployments. The Cisco C9200-24PXG-A provides scalable network access, enhanced security, and centralized management for enterprise and branch office environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cisco |
| Category | Networking |
| Part Number | C9200-24PXG-A |
| Subcategory | Managed Ethernet Switches |
| Series | Cisco Catalyst 9200 Series |
| Product Type | Managed Layer 3 Ethernet Switch |
| Cisco IOS Software | Network Advantage |
| Number of Ports | 24 |
| Port Configuration | 8 x Multigigabit Ports (up to 10G), 16 x Gigabit Ethernet Ports |
| PoE Support | Full PoE+ |
| Available PoE Budget | Up to 740W |
| Uplink Configuration | Modular Uplink Options (1G, 10G, 40G) |
| Switching Capacity | 352 Gbps |
| Forwarding Rate | 261.90 Mpps |
| DRAM | 4 GB |
| Flash Memory | 4 GB |
| MAC Address Capacity | 32,000 Addresses |
| Management Interfaces | Cisco DNA Center, CLI, Web GUI |
| Security Features | MACsec Encryption, Cisco TrustSec, Network Segmentation |
| Console Ports | RJ-45 Console, USB-C Console, USB Adapter Support |
| Power Supply | PWR-C6-600WAC |
| Cooling System | FRU Redundant Fans |
| Dimensions (H x W x D) | 1.73 x 17.5 x 13.8 in |
| Operating Temperature | -5°C to +45°C (up to 1,500 m altitude) |
| Compliance Standards | FCC, CE, IEC 60950-1, UL 60950-1, CISPR 32 Class A |
| Weight | 5.9 kg (13.0 lb) |
Information About C9200-24PXG-A
The C9200-24PXG-A is part of the Cisco Catalyst 9200 Series, a family of enterprise-class access switches engineered to extend intent-based networking across campus and branch infrastructures. It is equipped with 24 full PoE+ access ports, including 8 multigigabit interfaces supporting speeds up to 10 Gbps and 16 Gigabit Ethernet ports for versatile device connectivity. The switch operates with Cisco IOS XE Network Advantage software, enabling advanced routing, automation, segmentation, and security technologies such as MACsec encryption and Cisco TrustSec. Designed for organizations requiring resilient network access and simplified administration, it integrates with Cisco DNA Center while supporting modular uplink expansion for evolving bandwidth requirements.
Key Features:
- 24 PoE+ Access Ports: Supports powered devices with full PoE+ functionality across all access ports.
- Multigigabit Connectivity: Includes 8 mGig ports supporting speeds up to 10 Gbps for high-bandwidth applications.
- 740W PoE Budget: Delivers substantial power capacity for wireless access points, IP phones, and surveillance devices.
- Modular Uplink Architecture: Supports flexible 1G, 10G, and 40G uplink module options for scalable deployments.
- Advanced Layer 3 Routing: Supports OSPF, EIGRP, BGP, and other routing protocols for efficient traffic management.
- Enhanced Security Technologies: Incorporates MACsec encryption, TrustSec, segmentation, and secure access controls.
- Cisco DNA Center Integration: Enables centralized monitoring, automation, and policy-based network management.
- High Performance Switching: Provides up to 352 Gbps switching capacity and 261.90 Mpps forwarding performance.
The C9200-24PXG-A delivers the reliability and precision required for enterprise access networks, wireless infrastructure, unified communications, and high-performance branch connectivity.
