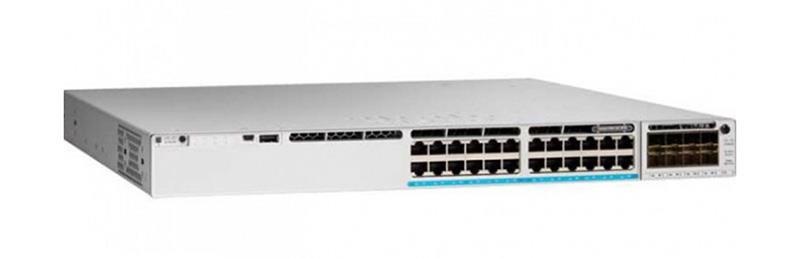

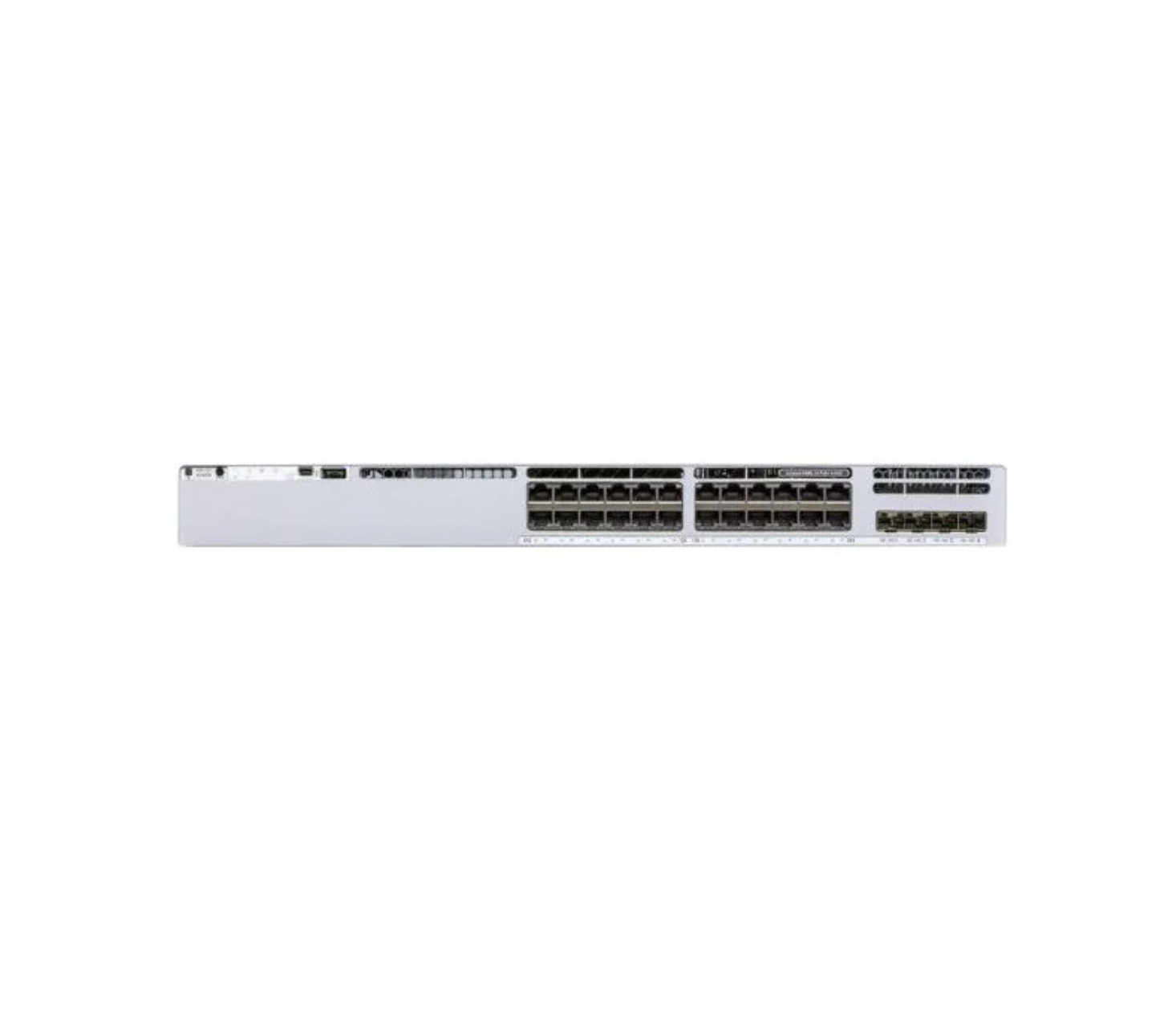

Cisco C9300L-24P-4X-A Catalyst 9300L 24-Port PoE+ Enterprise Switch with 4x 10G SFP+ Uplinks
- Regular price
- $4,176.00
- Sale price
- $4,176.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C9300L-24P-4X-A
Description
The Cisco C9300L-24P-4X-A is an enterprise-class managed switch designed to provide secure, scalable, and high-performance connectivity for campus and branch network environments. Featuring 24 Gigabit Ethernet PoE+ ports and 4 fixed 10 Gigabit SFP+ uplinks, it supports converged network infrastructures that require reliable data transport and power delivery. The Cisco C9300L-24P-4X-A combines advanced Layer 3 functionality, StackWise-320 technology, and robust security features to support modern digital business operations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cisco |
| Category | Networking |
| Part Number | C9300L-24P-4X-A |
| Subcategory | Managed Ethernet Switches |
| Series | Cisco Catalyst 9300L Series |
| Switch Type | Layer 3 Enterprise Managed Switch |
| Network Ports | 24x 10/100/1000 Gigabit Ethernet PoE+ RJ45 |
| Uplink Ports | 4x 10 Gigabit Ethernet SFP+ |
| Stack Technology | Cisco StackWise-320 |
| Stacking Bandwidth | 320 Gbps |
| Supported Software | Network Advantage, Network Essentials |
| Switching Capacity | 56 Gbps – 176 Gbps |
| Forwarding Rate | 41.66 Mpps – 130.95 Mpps |
| MAC Address Table Size | 32,000 Entries |
| IPv4 Routes | 32,000 (24,000 Direct, 8,000 Indirect) |
| IPv6 Routing Entries | 16,000 |
| VLAN Support | 4,094 VLAN IDs |
| Switched Virtual Interfaces (SVIs) | 1,000 |
| Packet Buffer | 16 MB |
| Flexible NetFlow Entries | 64,000 |
| Memory | 8 GB DRAM |
| Flash Memory | 16 GB |
| Jumbo Frame Support | Up to 9,198 Bytes |
| Dimensions (H x W x D) | 1.73 x 17.5 x 16.1 in |
| MTBF | 340,710 Hours |
| Weight | 10.6 lb (4.8 kg) |
Information About C9300L-24P-4X-A
The C9300L-24P-4X-A is part of the Cisco Catalyst 9300L Series, a family of fixed-access enterprise switches built for next-generation campus networking. Designed as a successor to the Catalyst 3850 platform, it incorporates StackWise-320 technology for simplified scalability and high availability across multiple switches. The switch supports Cisco Network Advantage and Network Essentials software packages, enabling advanced routing, security, automation, and policy management capabilities. With integrated PoE+ support, extensive routing capacity, and high-performance hardware resources, it is well suited for organizations deploying IP telephony, wireless access points, surveillance systems, and cloud-connected applications.
Key Features:
- 24 Gigabit PoE+ Ports: Provides 24 Ethernet ports capable of delivering power and data through a single connection.
- Four 10G SFP+ Uplinks: Supports high-speed fiber uplinks for aggregation and backbone connectivity.
- StackWise-320 Technology: Enables stacking bandwidth up to 320 Gbps for simplified management and resiliency.
- Advanced Layer 3 Routing: Supports extensive IPv4 and IPv6 routing tables for scalable network segmentation.
- Enterprise Security Features: Includes ACLs, policy enforcement, and advanced network access controls.
- High Memory Resources: Equipped with 8 GB DRAM and 16 GB flash memory for modern network services.
- Flexible Software Support: Compatible with Cisco Network Essentials and Network Advantage licensing.
- Large Network Scale: Supports up to 4,094 VLANs and 1,000 switched virtual interfaces (SVIs).
The C9300L-24P-4X-A delivers the reliability and precision required for enterprise access switching, campus networking, and high-availability branch infrastructure deployments.
