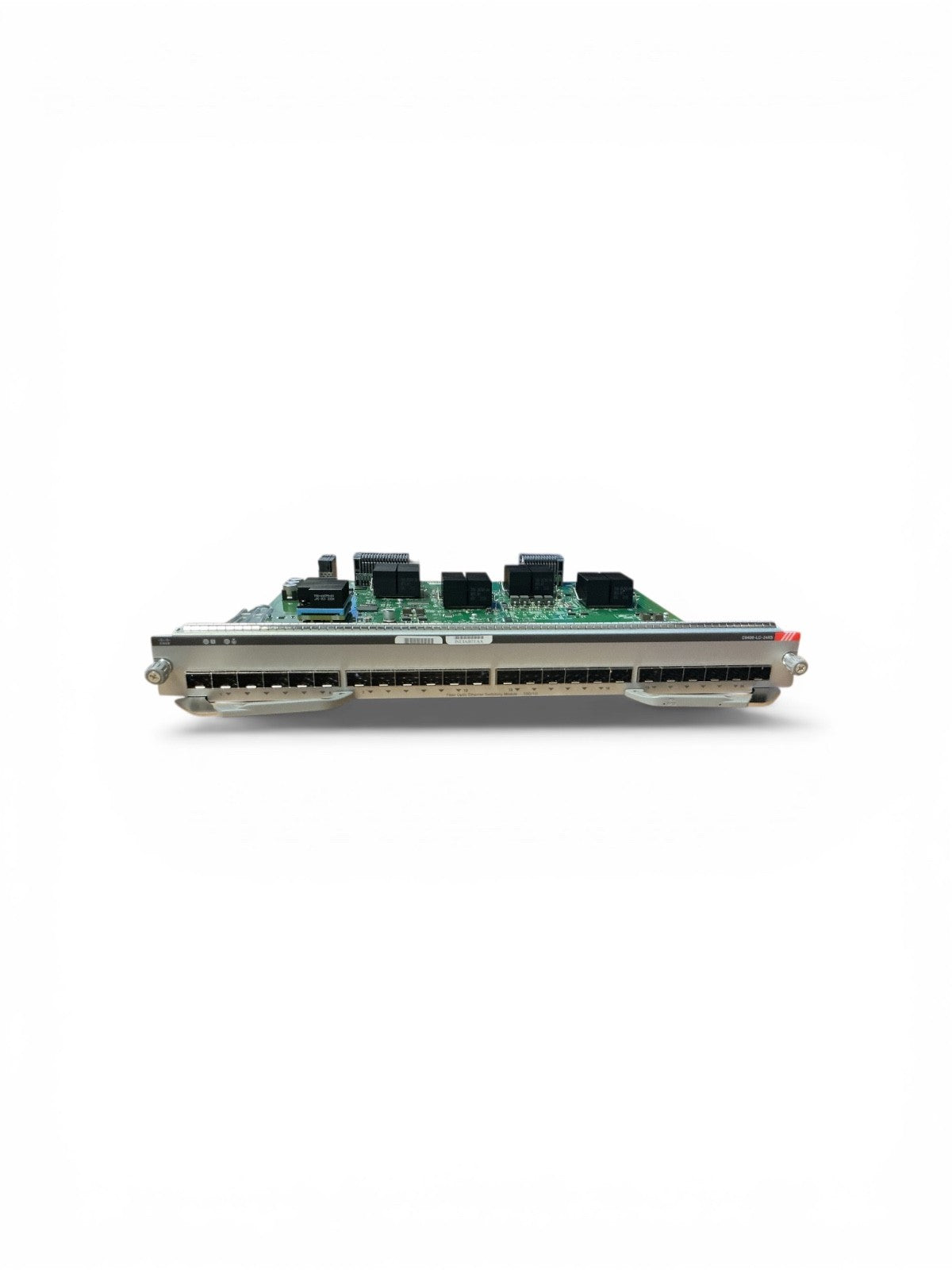

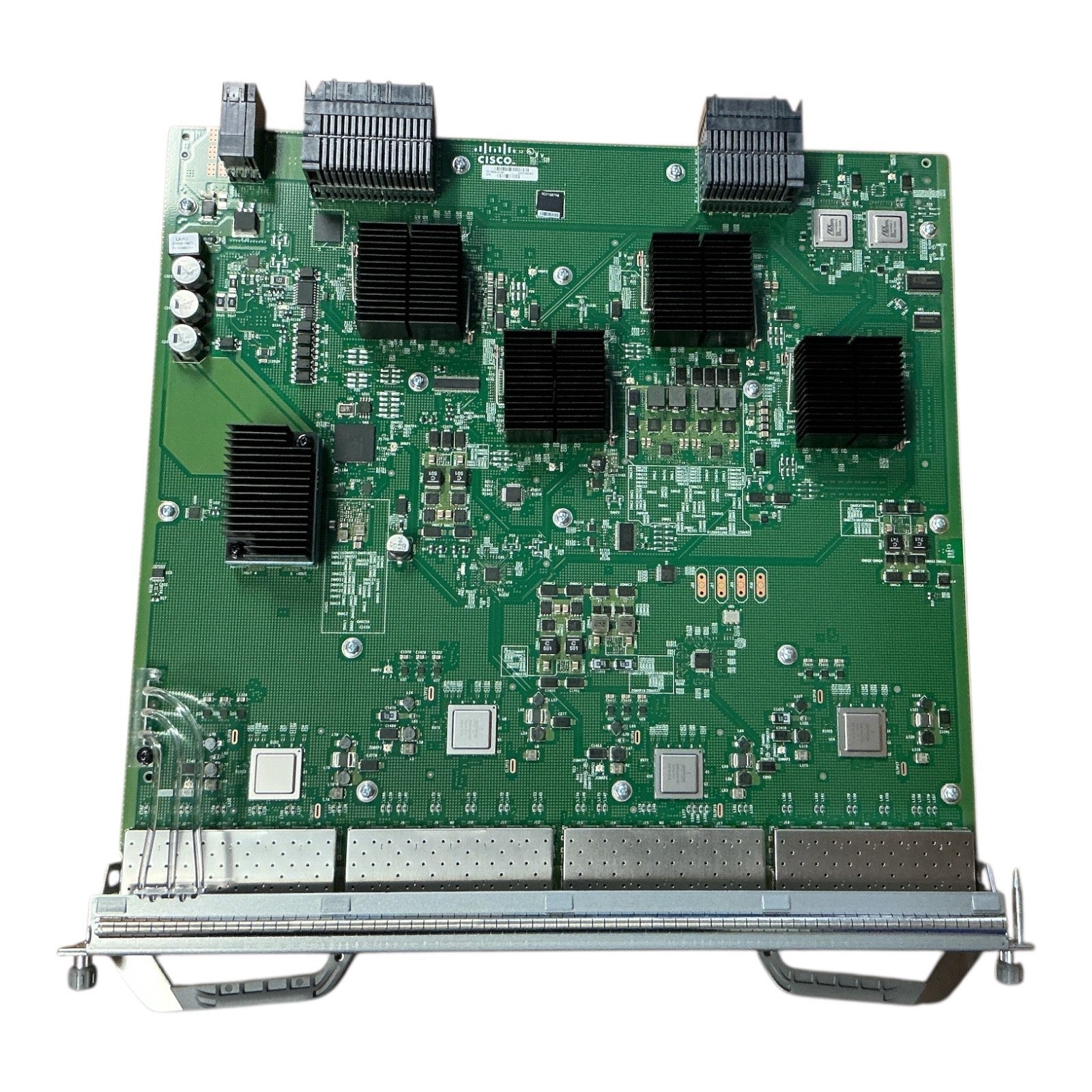

Cisco C9400-LC-24XS 24-Port 10GE/1GE SFP+ Catalyst 9400 Line Card
- Regular price
- $5,899.00
- Sale price
- $5,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C9400-LC-24XS
Description
The Cisco C9400-LC-24XS is a 24-port line card for Cisco Catalyst 9400 Series switches, providing configurable 10 Gigabit or 1 Gigabit Ethernet connectivity through SFP+ interfaces. It is designed for enterprise switching environments requiring high-density fiber connectivity, flexible port speeds, and advanced EtherChannel capabilities.
Technical Specifications
| Brand | Cisco |
| Category | Network Interface Module |
| Part Number | C9400-LC-24XS |
| Subcategory | Line Card |
| Series | Catalyst 9400 Series |
| Product Type | Line Card |
| Compatibility | Cisco Catalyst 9404R, C9407R, C9410R |
| Port Configuration | 24 x 10GE/1GE SFP+ |
| Port Speeds | 10 Gbps or 1 Gbps, configurable per port |
| Form Factor | Plug-In Module, 1 Slot |
| EtherChannel Support | LACP, PAgP, Cross-Line Card EtherChannel |
| Maximum Jumbo Frame | 9216 bytes |
| Power Consumption | 200 W max |
| Operating Temperature | -5°C to +45°C normal, with specified altitude and short-term ranges |
| Storage Temperature | -40°C to +70°C |
| Humidity | 10–95%, non-condensing |
| Altitude | -60 to 3,000 m |
| Safety Certifications | UL 60950-1, EN 60950-1, IEC 60950-1 |
| Weight | 4.5kg |
Information About C9400-LC-24XS
The C9400-LC-24XS is a plug-in line card occupying one slot in compatible Catalyst 9400 Series chassis, including the C9404R, C9407R, and C9410R. Its 24 SFP+ ports can operate at either 10 Gbps or 1 Gbps, allowing individual ports to be configured according to network requirements. The module supports LACP, PAgP, cross-line card EtherChannel, and jumbo frames up to 9216 bytes for demanding switching applications. It is engineered for enterprise campus infrastructure with broad IEEE standards compliance, RoHS 5 compliance, and Class 1 laser safety certification.
Key Features:
- 24 SFP+ Ports: Provides 24 high-density interfaces for 10GE or 1GE network connections.
- Configurable Port Speeds: Supports 10 Gbps or 1 Gbps operation per port.
- Catalyst 9400 Compatibility: Designed for Cisco Catalyst 9404R, C9407R, and C9410R switches.
- EtherChannel Support: Supports LACP, PAgP, and cross-line card EtherChannel configurations.
- Jumbo Frames: Supports frame sizes up to 9216 bytes for data-intensive network traffic.
- Plug-In Design: Installs as a one-slot line card within compatible Catalyst 9400 chassis.
- Power Consumption: Rated for a maximum power consumption of 200 W.
- Environmental Range: Supports specified operating, storage, humidity, and altitude conditions for enterprise deployments.
The C9400-LC-24XS delivers the reliability and precision required for high-density enterprise switching, fiber connectivity, and data-intensive network applications.
