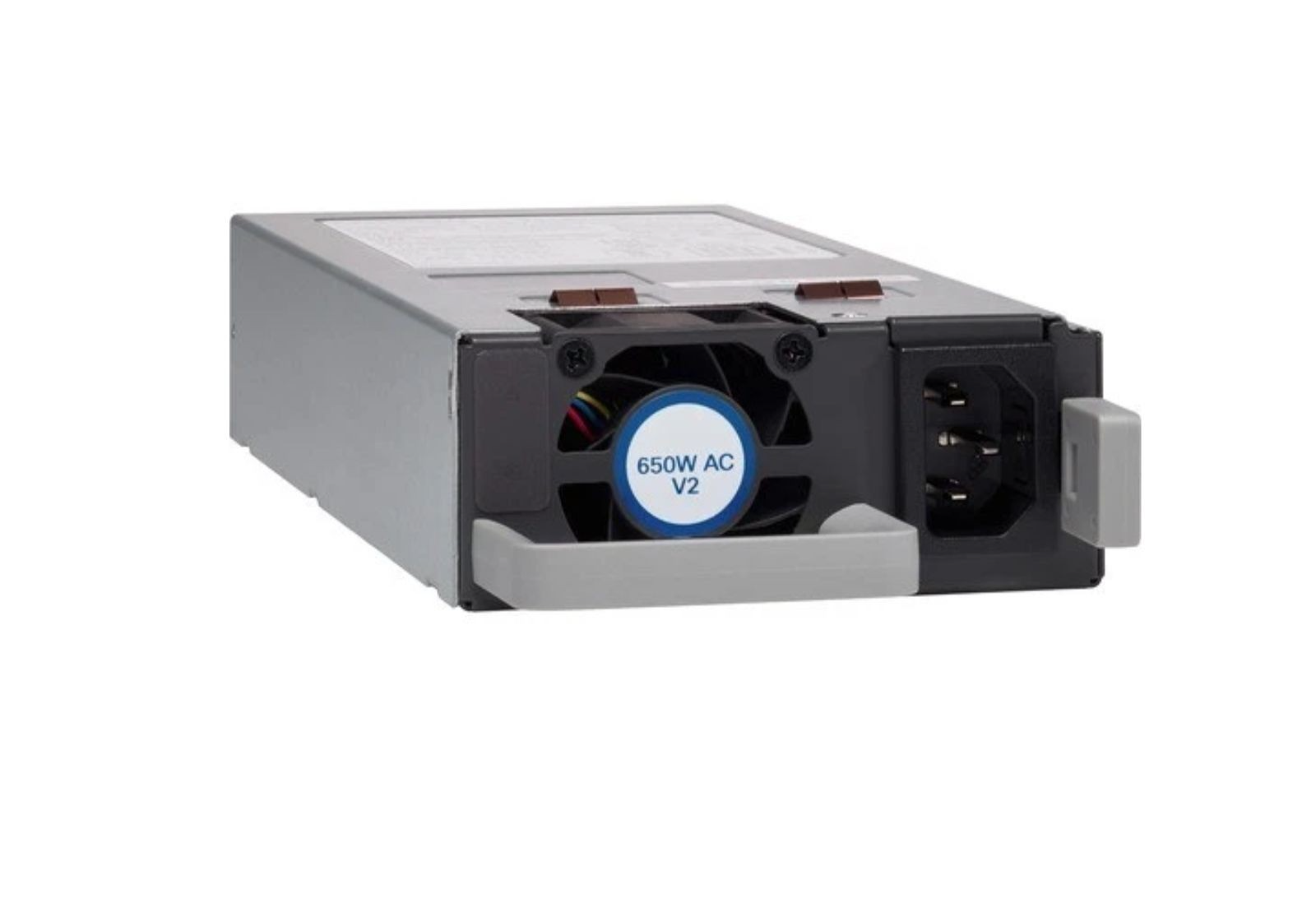

Cisco C9K-PWR-650WAC-R 650W AC Power Supply RSP1 12VDC
- Regular price
- $1,535.00
- Sale price
- $1,535.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C9K-PWR-650WAC-R
Description
The Cisco C9K-PWR-650WAC-R is a 650 W AC power supply designed to provide power for compatible Cisco networking equipment. It supports a nominal 100–240 VAC input range, delivers 12 VDC output, and uses an RSP1 form factor with Climate Savers Platinum Efficiency certification.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cisco |
| Category | Power Supplies |
| Part Number | C9K-PWR-650WAC-R |
| Subcategory | Network Equipment Power Supply |
| Input Voltage | Nominal 100–240 VAC |
| Input Voltage Range | 90–132 VAC / 180–264 VAC |
| Input Frequency | Nominal 50–60 Hz |
| Input Frequency Range | 47–63 Hz |
| Maximum AC Input Current | 7.6 A at 90–132 VAC; 3.65 A at 180–264 VAC |
| Maximum Input Volt Amperes | 760 VA at 100 VAC |
| Maximum Output Power | 650 W |
| Maximum In-Rush Current | 11 A |
| Maximum Hold-Up Time | 12 ms at 650 W |
| Output Voltage | 12 VDC |
| Efficiency Rating | Climate Savers Platinum Efficiency / 80Plus Platinum |
| Form Factor | RSP1 |
| Weight | 1.6 kg |
Information About C9K-PWR-650WAC-R
The C9K-PWR-650WAC-R is an AC power supply configured in the RSP1 form factor for compatible Cisco network hardware. Its input system supports 50–60 Hz operation, with maximum input current ratings of 7.6 A at lower AC voltage and 3.65 A at higher AC voltage. The unit provides 650 W maximum output power with both primary and standby output voltage rated at 12 VDC. Its design includes a 12 ms maximum hold-up time at full output power and an 11 A maximum in-rush current.
Key Features:
- Power Rating: Provides up to 650 W of output power per power supply.
- AC Input Range: Supports nominal 100–240 VAC input with specified operating ranges.
- Input Frequency: Supports 50–60 Hz nominal frequency and 47–63 Hz operating range.
- DC Output: Provides 12 VDC power output for compatible Cisco equipment.
- Standby Output: Provides a 12 VDC standby voltage.
- Efficiency: Uses Climate Savers Platinum Efficiency with 80Plus Platinum certification.
- Form Factor: Configured in the RSP1 form factor for compatible installations.
- Hold-Up Time: Provides up to 12 ms of hold-up time at 650 W output.
The C9K-PWR-650WAC-R delivers the reliability and precision required for power supply applications in Cisco networking equipment.
