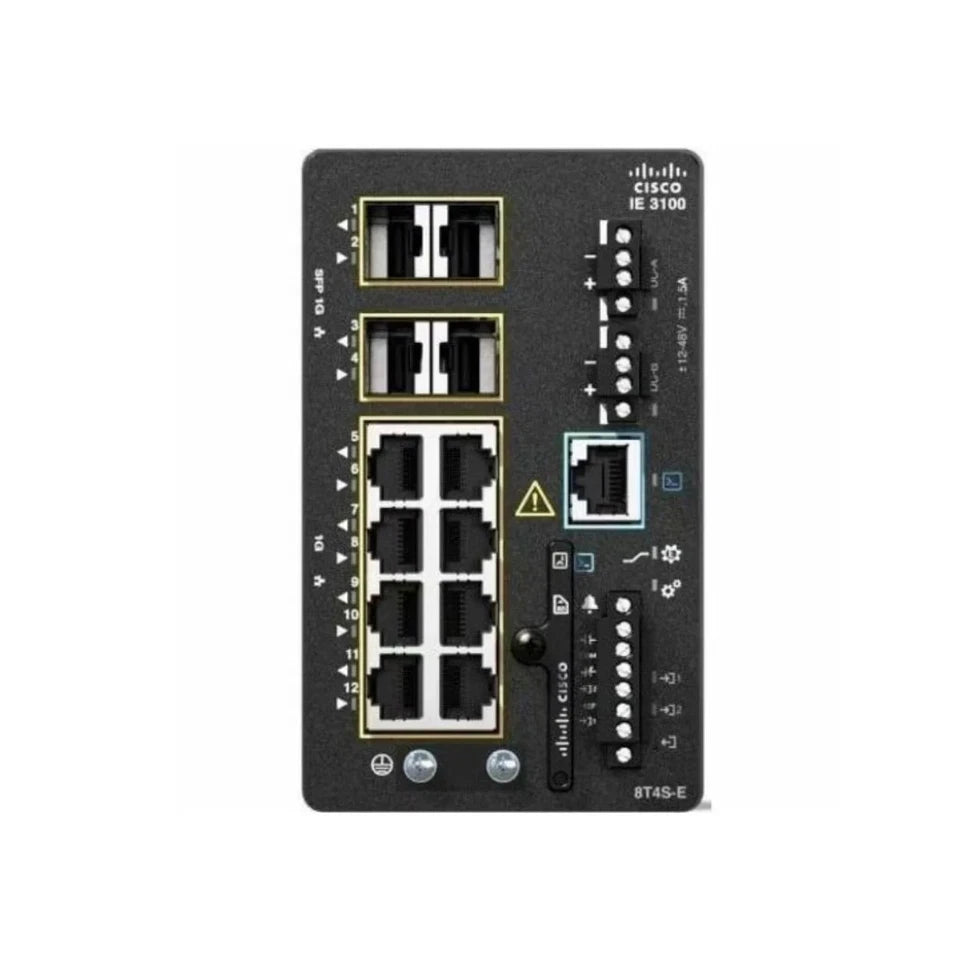

Cisco IE-3100-8T4S-E Catalyst IE3100 Rugged Managed Industrial Ethernet Switch with 8 RJ45 and 4 SFP Ports
- Regular price
- $2,899.00
- Sale price
- $2,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IE-3100-8T4S-E
Description
The Cisco IE-3100-8T4S-E is a rugged managed industrial Ethernet switch engineered to provide secure Gigabit connectivity in harsh operating environments such as manufacturing plants, transportation systems, utilities, warehouses, and smart city infrastructure. Featuring eight Gigabit RJ-45 ports, four Gigabit SFP uplinks, Cisco IOS XE software, and advanced industrial security capabilities, the Cisco IE-3100-8T4S-E delivers reliable Layer 2 switching for mission-critical industrial networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cisco |
| Category | Industrial Networking |
| Part Number | IE-3100-8T4S-E |
| Subcategory | Managed Industrial Ethernet Switch |
| Series | Cisco Catalyst IE3100 Rugged Series |
| Mounting | DIN Rail |
| Total Ports | 12 (8 × 10/100/1000 RJ-45 + 4 × 1G SFP) |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 17.856 Mpps |
| MAC Address Table | 8,000 Entries |
| VLAN Support | Up to 256 VLANs |
| Power Input | 12–48 VDC Nominal (9.6–60 VDC Absolute), Dual DC Inputs |
| Power Consumption | 17.8 W Typical |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Operating Humidity | 5%–95% Non-Condensing |
| Memory | 4 GB DRAM, 1.5 GB Flash |
| Management | Cisco Catalyst Center, WebUI, CLI, SNMP, Open APIs |
| Dimensions | 5.00 × 3.00 × 4.33 in. (12.70 × 7.62 × 11.00 cm) |
| Weight | 1.9 lb (0.86 kg) |
Information About IE-3100-8T4S-E
The IE-3100-8T4S-E is part of the Cisco Catalyst IE3100 Rugged Series, a family of industrial Ethernet switches built for compact DIN rail installations in demanding industrial applications. Its hardened fanless enclosure is designed to withstand vibration, extended operating temperatures, and electrically noisy environments while providing high-speed Gigabit networking. The switch supports Cisco IOS XE, Cisco Catalyst Center management, WebUI, command-line configuration, and API-driven automation for simplified deployment and maintenance. Integrated security technologies including Cisco Trust Anchor, Secure Boot, Zero Trust Network Access, and support for industrial protocols such as EtherNet/IP, PROFINET, Modbus, IEEE 1588v2, MRP, and REP enable dependable connectivity across industrial automation systems.
Key Features:
- Rugged Industrial Design: Operates in temperatures from -40°C to 75°C with a fanless enclosure for harsh industrial environments.
- Gigabit Ethernet Connectivity: Provides eight 10/100/1000 RJ-45 ports and four dedicated 1 Gigabit SFP uplink ports.
- Cisco IOS XE Software: Delivers enterprise-class switching, automation, and integrated security features.
- Zero Trust Security: Incorporates Cisco Trust Anchor, Secure Boot, image signing, and advanced access control technologies.
- Industrial Protocol Support: Supports EtherNet/IP, PROFINET, Modbus, IEEE 1588v2, Media Redundancy Protocol, and Resilient Ethernet Protocol.
- Flexible Management Options: Supports Cisco Catalyst Center, WebUI, CLI, SNMP, and open API-based configuration.
- DIN Rail Mounting: Compact industrial form factor simplifies installation inside automation cabinets and control panels.
- High Reliability: Dual DC power inputs and industrial-grade hardware provide dependable continuous network operation.
The IE-3100-8T4S-E delivers the reliability and precision required for secure industrial Ethernet switching in mission-critical automation and infrastructure applications.
