Product Description P/N: MS120-48FP-HW
Description

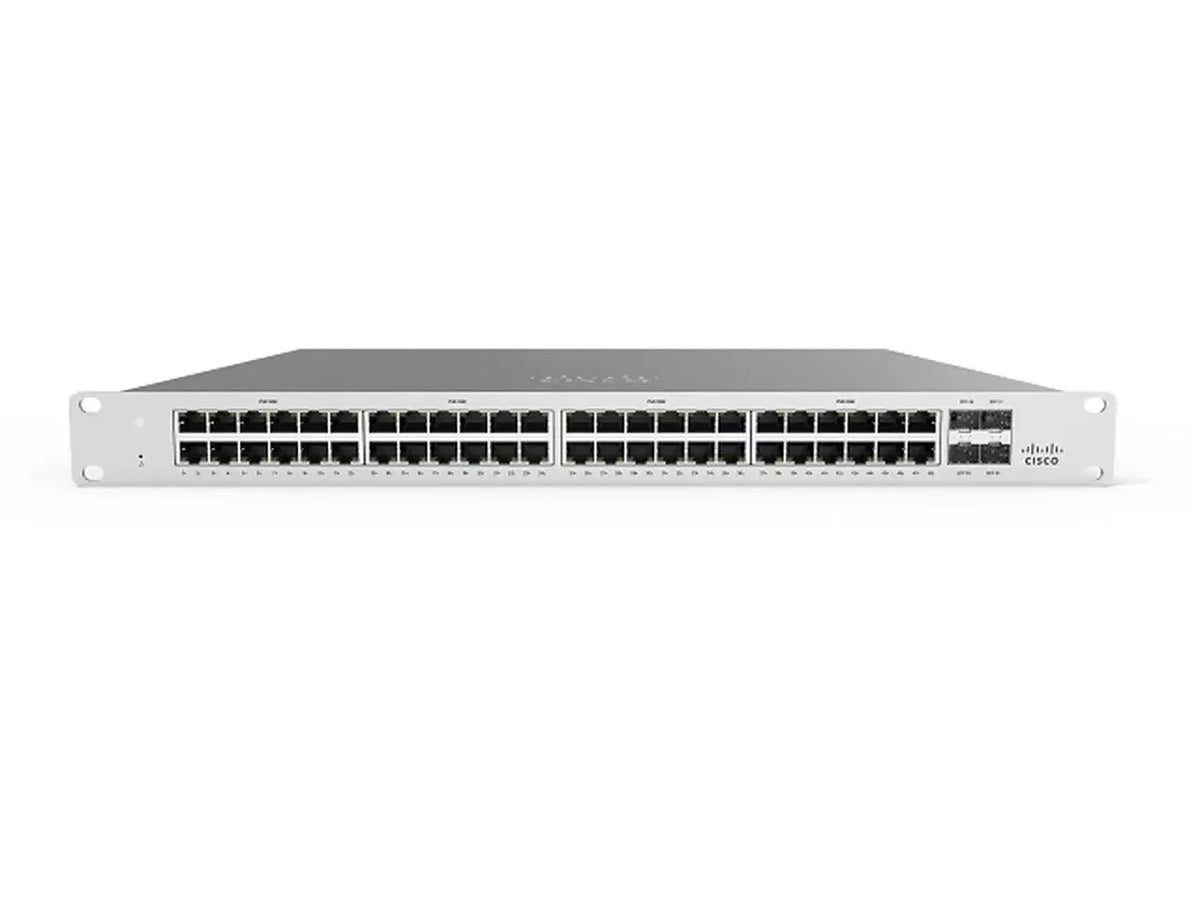

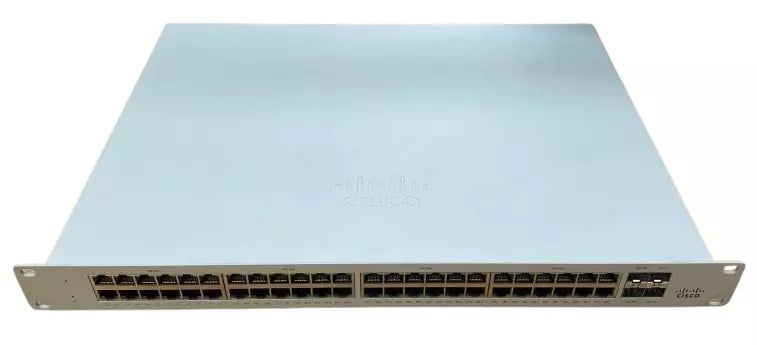

The Cisco Meraki MS120-48FP-HW is a cloud-managed Layer 2 access switch that connects and powers network devices through 48 Gigabit Ethernet PoE+ ports. Four Gigabit SFP uplinks and a shared 740 W PoE budget support deployments with wireless access points, IP phones, and security cameras in offices and branch networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cisco Meraki |
| Category | Networking Equipment |
| Part Number | MS120-48FP-HW |
| Subcategory | Managed PoE+ Ethernet Switches |
| Series | MS120 |
| Switch Type | Cloud-managed Layer 2 access switch |
| Network Ports | 48 × 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto-MDIX |
| Uplink Ports | 4 × 1 Gigabit Ethernet SFP slots |
| Management Interface | 1 × dedicated RJ45 management interface for local status access |
| PoE Standards and Budget | IEEE 802.3af/802.3at; up to 30 W per port; 740 W shared total budget |
| Switching Capacity and Forwarding Rate | 104 Gbps; approximately 77.38 million packets per second |
| VLAN and MAC Address Capacity | Up to 4,094 VLANs; 32,000 MAC address entries |
| Power Supply | Fixed internal AC power supply; 100–240 VAC, 47–63 Hz |
| Management and Stacking | Meraki Dashboard management; virtual stacking; no physical stacking interfaces |
| Cooling | Fan-cooled |
| Licensing and Claim Status | License not included; supplied listing describes the unit as unclaimed; valid Meraki licensing required |
| Mounting and Dimensions | 1U rack mount; 1.73 × 17.32 × 13.4 inches, height × width × depth |
| Operating Temperature | 32–113°F / 0–45°C |
| Weight | 12.70 lbs |
Information About MS120-48FP-HW

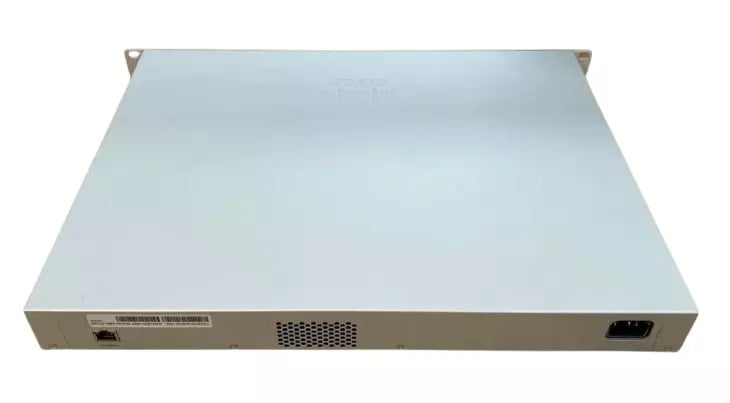

The MS120-48FP-HW is a member of the Cisco Meraki MS120 series, built in a rack-mountable 1U chassis with an internal power supply. Its copper interfaces support standard Ethernet devices, while its SFP slots accommodate compatible Gigabit uplink modules. Administrators use the Meraki Dashboard to configure ports, monitor operation, and troubleshoot distributed installations. VLAN segmentation, access controls, and virtual stacking provide centralized administration across multiple switches.
Key Features:
- Gigabit access ports: Provides 48 RJ45 interfaces supporting 10/100/1000 Mbps connections.
- PoE+ capability: Supports IEEE 802.3af and 802.3at devices, with up to 30 W per port within the total power budget.
- Shared power budget: Supplies up to 740 W across connected powered devices.
- Fiber uplinks: Includes four 1 Gigabit SFP interfaces for compatible optical or copper transceivers.
- Switching performance: Provides 104 Gbps switching capacity and a forwarding rate of approximately 77.38 million packets per second.
- Cloud administration: Enables configuration, monitoring, and diagnostics through the Meraki Dashboard.
- Virtual stacking: Allows coordinated port configuration across switches without physical stacking cables.
- Network segmentation: Supports VLANs and access policies to separate traffic and control network access.
The MS120-48FP-HW delivers the reliability and precision required for centrally managed access networks with multiple Ethernet-powered endpoints.
