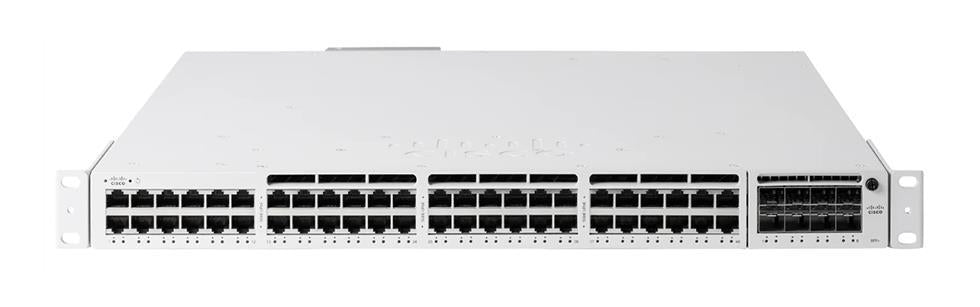

Cisco MS390-48UX-HW Meraki MS390 48-Port Layer 3 Multi-Gigabit Access Switch
- Regular price
- $6,822.00
- Sale price
- $6,822.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS390-48UX-HW
Description
The Cisco MS390-48UX-HW is a cloud-managed Layer 3 access switch designed for high-density enterprise network deployments. It combines Multi-Gigabit Ethernet connectivity, advanced routing capabilities, and Cisco Meraki dashboard management within a stackable 1U platform. The switch supports high-bandwidth applications, Wi-Fi 6 access points, and power-intensive devices through integrated UPOE technology.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cisco |
| Category | Networking Equipment |
| Part Number | MS390-48UX-HW |
| Subcategory | Managed Ethernet Switch |
| Series | Cisco Meraki MS390 |
| Device Type | Layer 3 Managed Switch |
| Port Configuration | 36 × 100/1000/2.5G RJ45 + 12 × 100/1000/2.5/5/10G RJ45 |
| PoE Type | UPOE / IEEE 802.3bt |
| Maximum PoE Budget | Up to 1590 W |
| Switching Capacity | 580 Gbps |
| Forwarding Rate | 431.54 Mpps |
| Stacking Bandwidth | 480 Gbps |
| Stacking Ports | 2 × Dedicated 120G Hardware Stacking Ports |
| MAC Address Table Size | 32,000 Entries |
| Jumbo Frame Support | 9600 Bytes |
| Management Platform | Cisco Meraki Dashboard |
| Routing Protocols | OSPF, OSPFv2, VRRP, Static Routing |
| Uplink Options | Modular 10GbE SFP+ / 40GbE QSFP+ |
| Power Supply | 1 × MA-PWR-1100WAC Included |
| Cooling | 3 Pre-Installed Hot-Swappable Fans |
| Enclosure Type | Rack-Mountable 1U |
| Input Power | AC 120/230 V, 50–60 Hz |
| Dimensions (W × D × H) | 17.5 × 22.2 × 1.7 in |
| Weight | 20.59 lb |
Information About MS390-48UX-HW
The MS390-48UX-HW is a member of the Cisco Meraki MS390 Series, developed to provide enterprise-class switching performance with centralized cloud management. Built on advanced Cisco switching hardware, it supports Layer 3 routing, Adaptive Policy segmentation, StackPower technology, and hardware stacking for resilient network operation. The switch integrates directly with the Meraki Dashboard, enabling centralized monitoring, configuration, diagnostics, and policy enforcement across distributed environments. It is commonly deployed in large enterprise campuses, educational facilities, healthcare environments, and high-performance access networks where scalability, security, and simplified administration are essential.
Key Features:
- Multi-Gigabit access ports: Provides 36 ports supporting up to 2.5G and 12 ports supporting up to 10G connectivity.
- UPOE power delivery: Supplies power to advanced devices through 802.3bt Universal Power over Ethernet technology.
- Cloud-managed architecture: Enables centralized configuration, monitoring, and troubleshooting through the Meraki Dashboard.
- Layer 3 routing support: Supports OSPF, VRRP, static routing, and advanced switching functions.
- High switching performance: Delivers up to 580 Gbps switching capacity and 431.54 Mpps forwarding rate.
- Hardware stacking technology: Supports 480 Gbps stacking bandwidth through dedicated stacking interfaces.
- Modular uplink flexibility: Accommodates optional 10GbE and 40GbE SFP+/QSFP+ uplink modules.
- Integrated security policies: Supports Adaptive Policy, ACLs, RBAC, RADIUS, MAB, and advanced network segmentation.
The MS390-48UX-HW delivers the reliability and precision required for high-performance enterprise access switching, cloud-managed networking, and secure Layer 3 infrastructure deployments.
