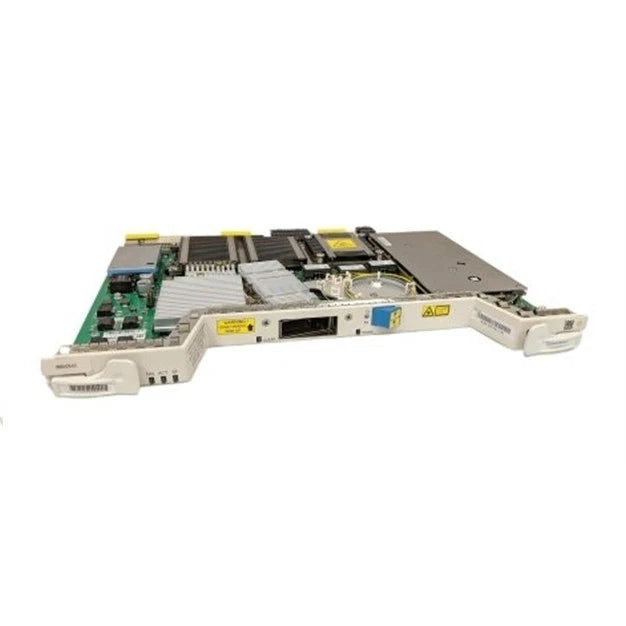

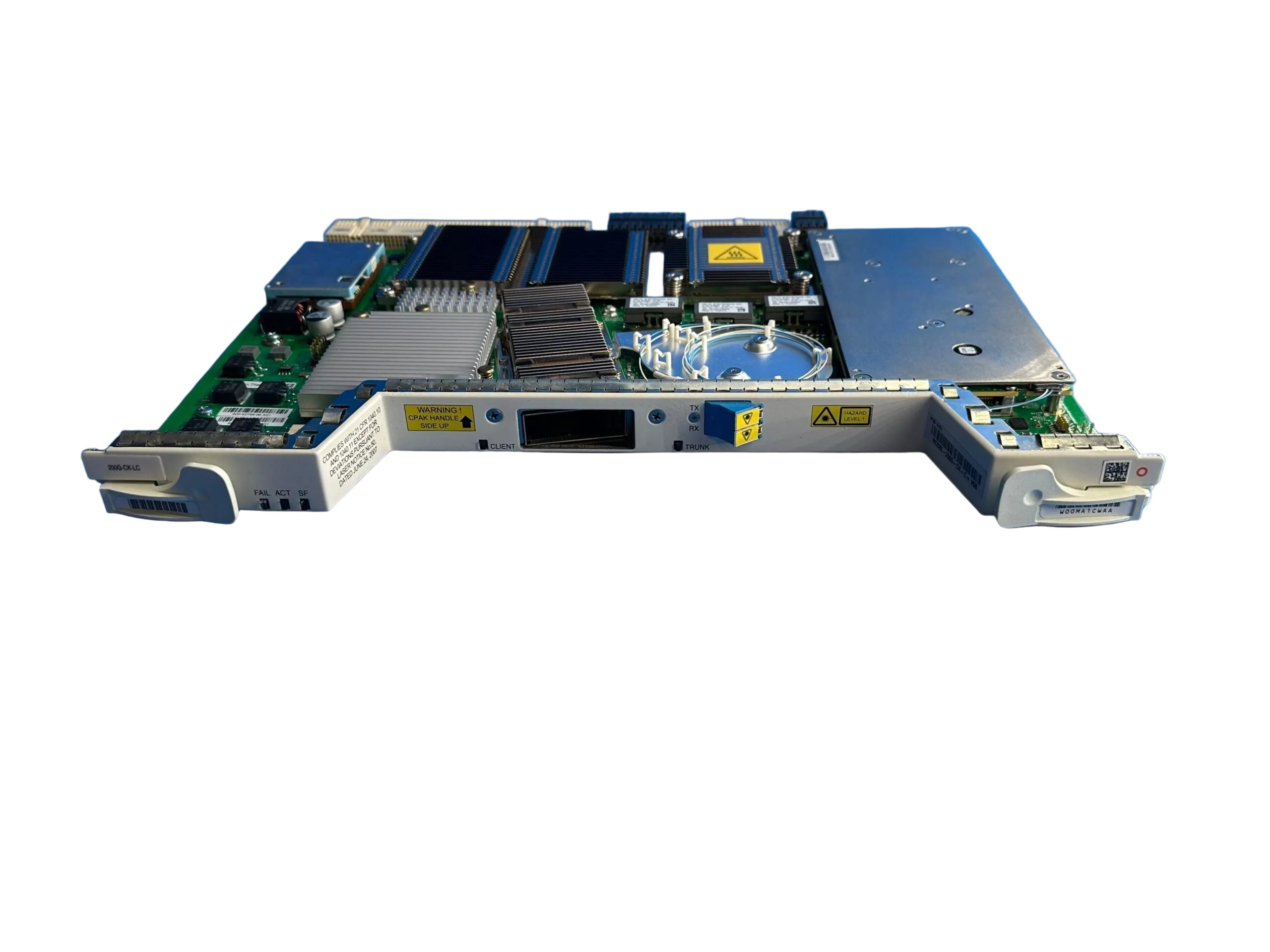

Cisco NCS2K-200G-CK-C 200 Gbps Multi-Rate DWDM Line Card with CPAK C-Band Interface for NCS 2000 Series
- Regular price
- $15,619.00
- Sale price
- $15,619.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NCS2K-200G-CK-C
Description
The Cisco NCS2K-200G-CK-C is a 200 Gbps multirate DWDM line card designed for the Cisco Network Convergence System (NCS) 2000 Series optical transport platform. This Cisco NCS2K-200G-CK-C supports 50 Gbps, 100 Gbps, and 200 Gbps coherent optical transmission over C-Band wavelengths, making it suitable for metro, regional, long-haul, and ultra-long-haul optical networks. It combines flexible CPAK client interfaces with advanced coherent optics to deliver high-capacity transport for service providers and enterprise backbone infrastructures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cisco |
| Category | Optical Networking |
| Part Number | NCS2K-200G-CK-C |
| Subcategory | DWDM Router Line Card |
| Product Family | Cisco NCS 2000 Series |
| Module Type | Multi-Rate DWDM Line Card |
| Maximum Data Rate | 200 Gbps |
| Supported Rates | 50 Gbps, 100 Gbps, 200 Gbps |
| Client Interface | Cisco CPAK MultiRate |
| Optical Band | C-Band |
| Modulation Formats | CP-BPSK, CP-DQPSK, 16-QAM |
| Forward Error Correction | Hard-Decision and Soft-Decision FEC |
| Operating Modes | Transponder, Muxponder, Regenerator |
| Application | Metro, Regional, Long-Haul, Ultra-Long-Haul DWDM Networks |
| Compatible Platform | Cisco NCS 2000 Series |
| Weight | 3.9 lbs |
Information About NCS2K-200G-CK-C
The NCS2K-200G-CK-C is a multirate DWDM line card developed for Cisco NCS 2000 Series optical networking platforms. It features a Cisco CPAK pluggable client interface that can operate as a transponder or, when paired with compatible tributary line cards, as a muxponder to support multiple client services. Using Cisco nLight silicon technology, coherent modulation, and software-selectable forward error correction, the module allows network operators to optimize transmission distance and bandwidth according to deployment requirements. Designed for carrier-grade optical transport systems, the line card supports coherent 50 Gbps, 100 Gbps, and 200 Gbps services while providing compatibility with programmable DWDM infrastructures and high-capacity optical backbone networks.
Key Features:
- Multi-Rate Optical Transport: Supports 50 Gbps, 100 Gbps, and 200 Gbps coherent transmission.
- CPAK Client Interface: Utilizes Cisco CPAK pluggable optics for flexible client connectivity.
- Coherent DWDM Technology: Employs coherent optical transmission for long-distance C-Band networking.
- Advanced Modulation Support: Supports CP-BPSK, CP-DQPSK, and 16-QAM modulation formats.
- Flexible FEC Options: Offers software-configurable hard-decision and soft-decision forward error correction.
- Transponder and Muxponder Modes: Operates as a standalone transponder or in muxponder configurations with compatible line cards.
- High Optical Performance: Optimized for metro, regional, long-haul, and ultra-long-haul DWDM deployments.
- Cisco NCS 2000 Compatibility: Designed specifically for Cisco Network Convergence System 2000 Series platforms.
The NCS2K-200G-CK-C delivers the reliability and precision required for high-capacity optical transport, coherent DWDM networking, and carrier-class backbone infrastructure.
